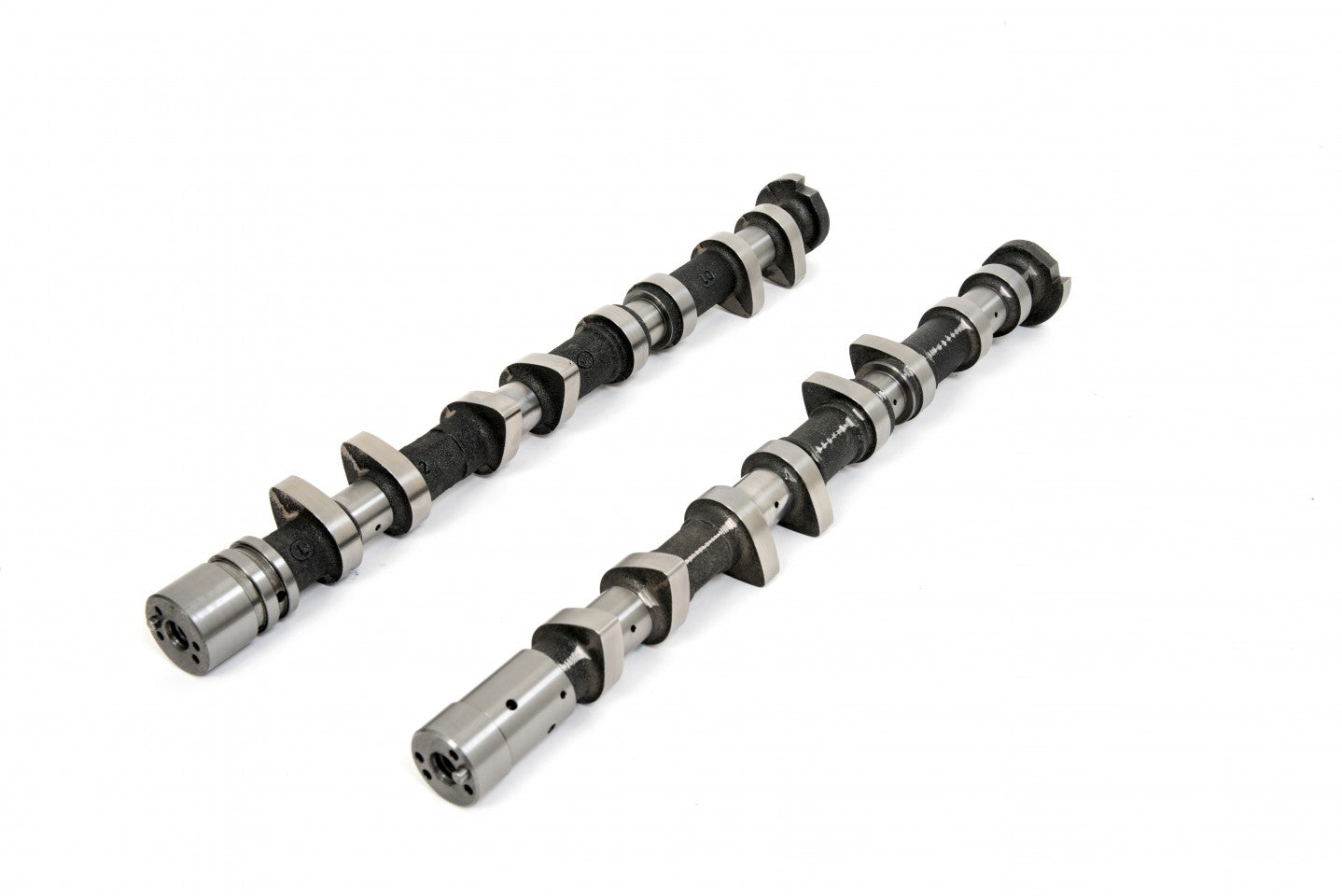

SKU: SKU: MITS10BP285B
Profile: BP285.
Application: Ultimate Road.
Unit Type: Blank.
Note:This is an extra high lift profile for these camshafts & therefore they must be used with Piper VSSMITS10K
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 5 kg |
|---|---|
| Application | Ultimate Road |
| Duration Inlet | 268° |
| Duration Exhaust | 240° |
| Valve Inlet Lift | .437" 11.10mm |
| Valve Exhaust Lift | .394" 10.00mm |
| Timing Inlet | 24 - 64 |
| Timing Exhaust | 50 - 10 |
| Full Inlet Lift | 110° |
| Full Exhaust Lift | 110° |
| TDC Inlet Lift | .066" 1.68mm |
| TDC Exhaust Lift | .046" 1.17mm |
| Valve Inlet Clearance | .008" .20mm |
| Valve Exhaust Clearance | .010" .25mm |
