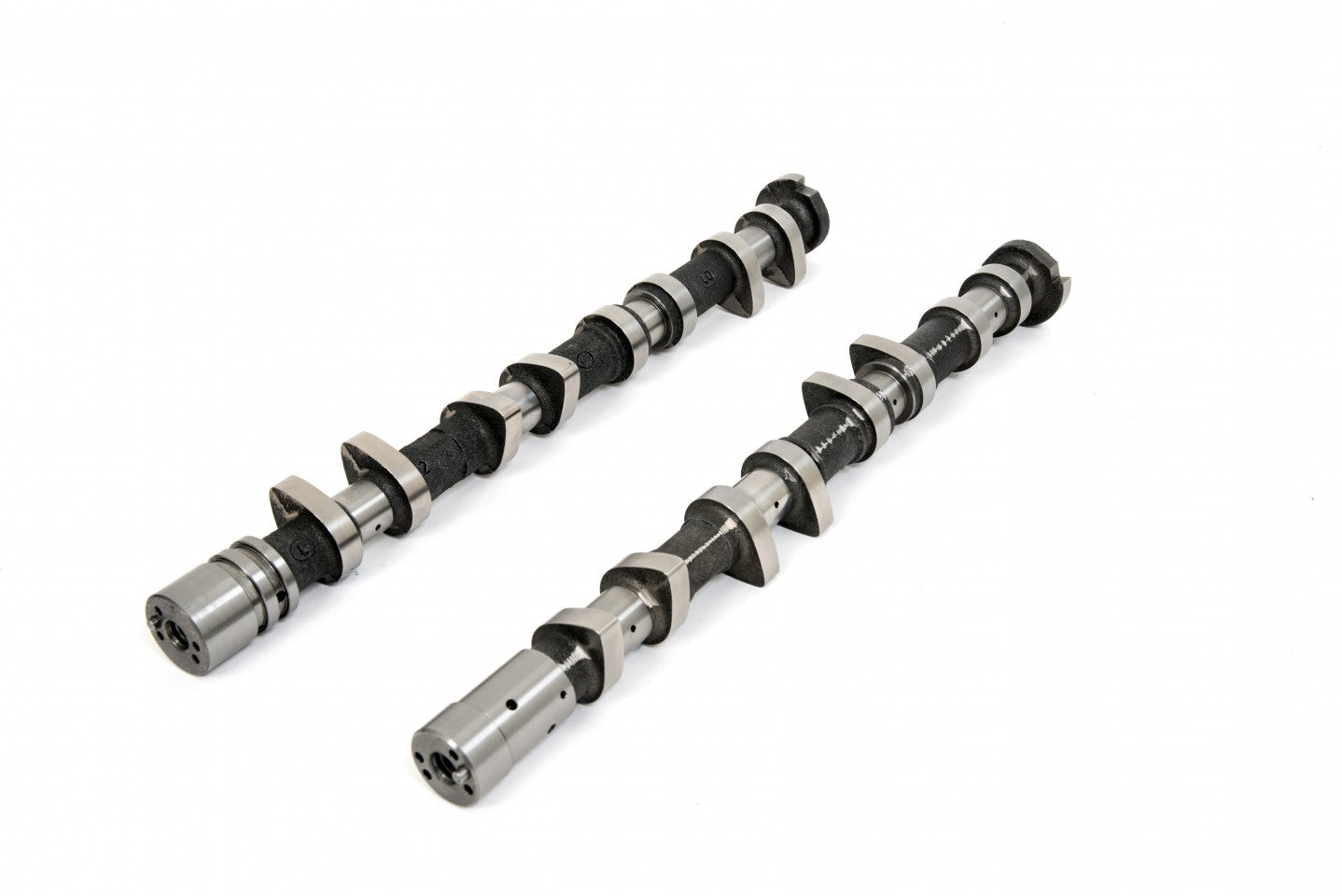

Piper Cams Camshaft - Standard Profile (Mitsubishi)

Piper Cams

Piper Cams Camshaft - Standard Profile (Mitsubishi)

SKU: SKU: MITS10STDB

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: Standard O.E.

Application: Road.

Unit Type: Blank.

These are direct replacement camshafts which are ground to Mitsubishi standard road specification.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 5 kg
Application Standard Profile
Duration Inlet 260°
Duration Exhaust 232°
Valve Inlet Lift .374" 9.50mm
Valve Exhaust Lift .327" 8.31mm
Timing Inlet 20 - 60
Timing Exhaust 46 - 6
Full Inlet Lift 110°
Full Exhaust Lift 110°
TDC Inlet Lift .046" 1.17mm
TDC Exhaust Lift .005" 0.13mm
Valve Inlet Clearance .008" .20mm
Valve Exhaust Clearance .012" .30mm

Vehicle Application

  • Mitsubishi EVO 10
