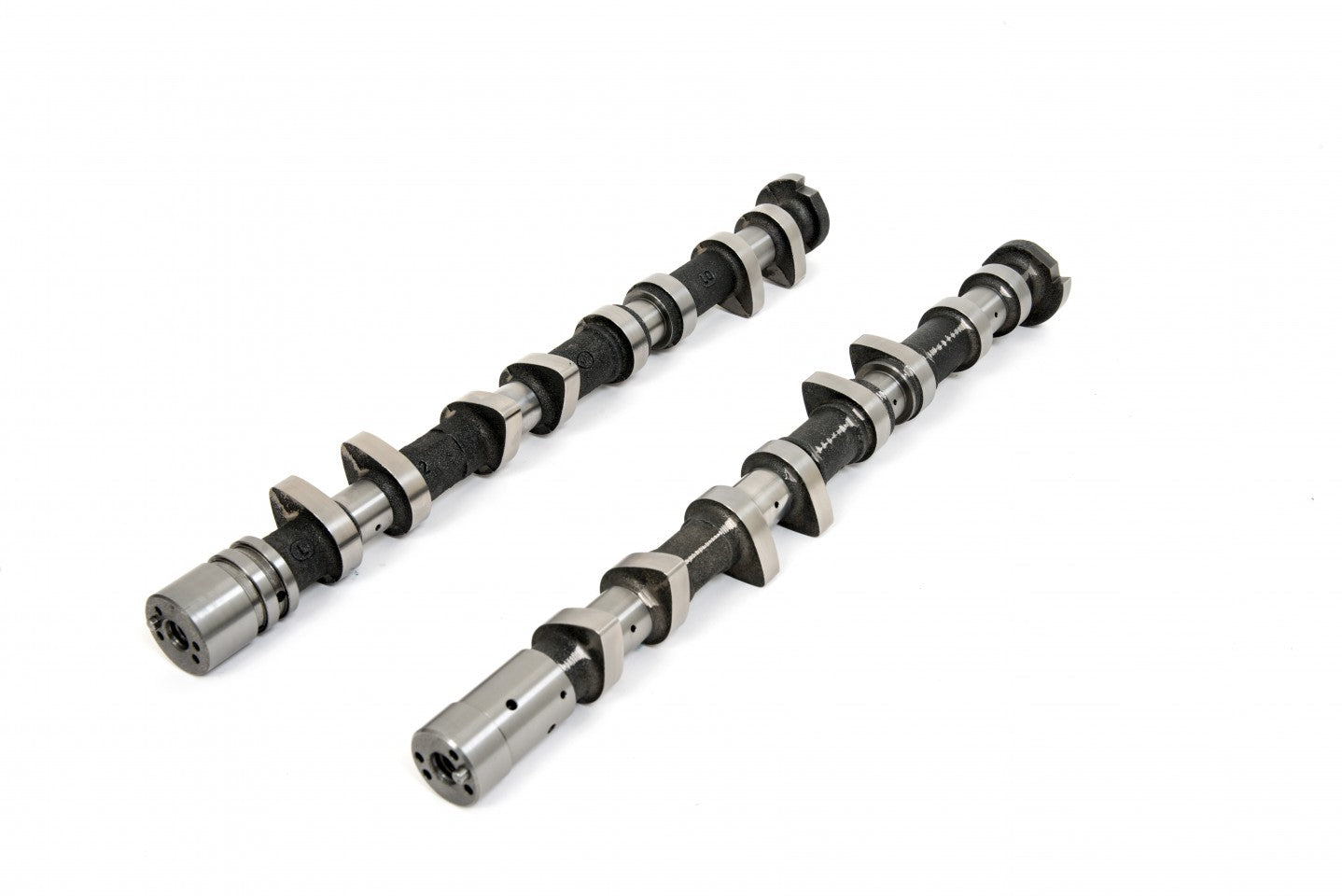

Piper Cams Camshaft - Fast Road (Mitsubishi)

SKU: SKU: MITS10BP270B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP270.

Application: Fast Road.

Unit Type: Blank.

For use with standard O.E springs. (Maximum lift achievable)

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 5 kg
Application Fast Road
Duration Inlet 264°
Duration Exhaust 240°
Valve Inlet Lift .400" 10.16mm
Valve Exhaust Lift .366" 9.30mm
Timing Inlet 22 - 62
Timing Exhaust 50 - 10
Full Inlet Lift 110°
Full Exhaust Lift 110°
TDC Inlet Lift .061" 1.55mm
TDC Exhaust Lift .016" 0.41mm
Valve Inlet Clearance .008" .20mm
Valve Exhaust Clearance .010" .25mm

Vehicle Application

  • Mitsubishi EVO 10
