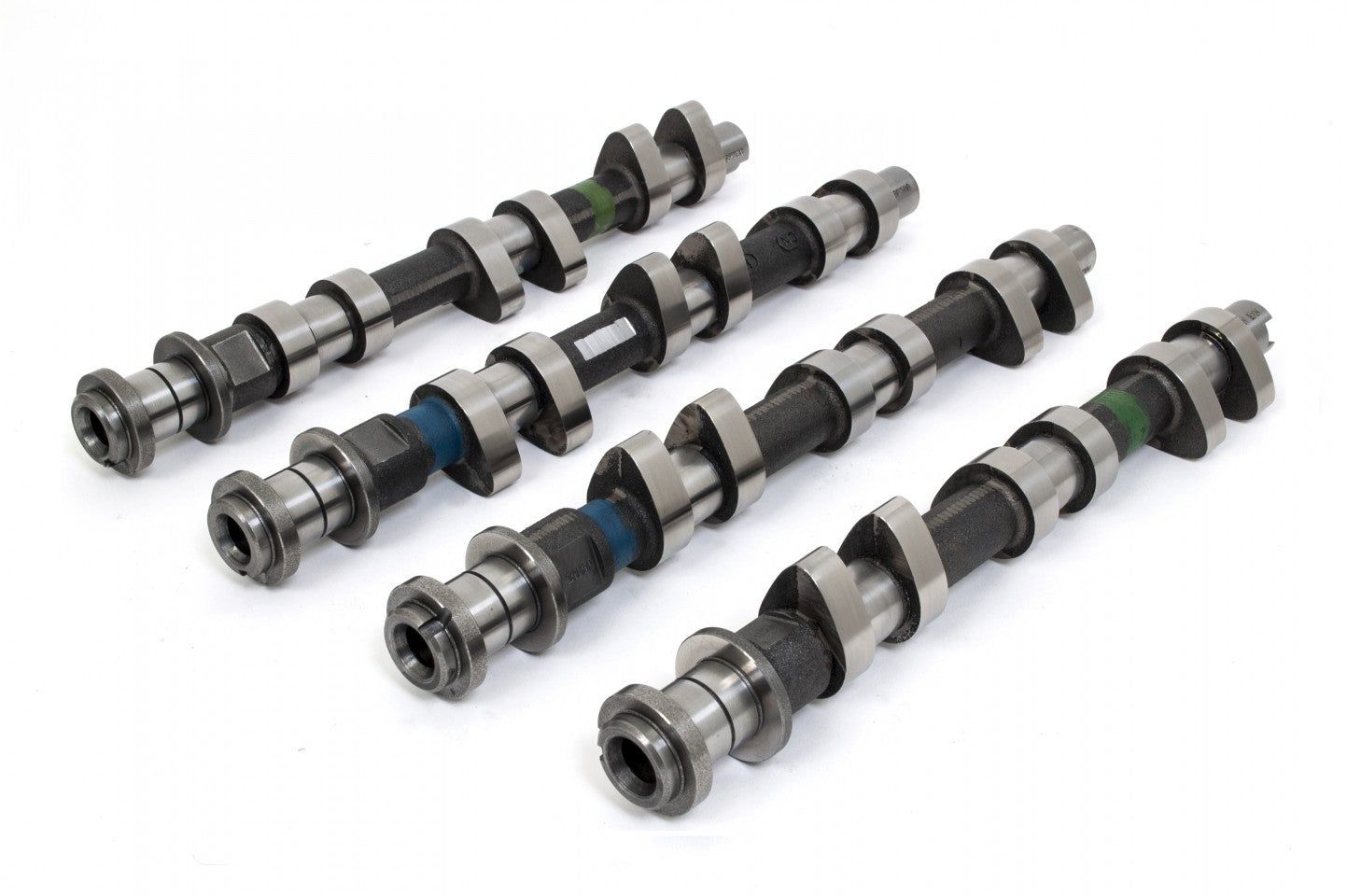

SKU: SKU: JAGV6BP300B
Profile: BP300.
Application: Rally.
Unit Type: Blank.
Note: Only available for S-Type engine.
Note: Not suitable for VVT engines.
Note: Use with FOLJV6 followers. (Shim under bucket type).
Download:-
Right click link and select 'Save link as' to download.
Click link to open in a new tab.
| Weight | 10 kg |
|---|---|
| Application | Rally |
| Power Band | 2500-7500 |
| Duration Inlet | 280° |
| Duration Exhaust | 280° |
| Valve Inlet Lift | .463" 11.75mm |
| Valve Exhaust Lift | .442" 11.23mm |
| Timing Inlet | 36 - 64 |
| Timing Exhaust | 66 - 34 |
| Full Inlet Lift | 104° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .140" 3.55mm |
| TDC Exhaust Lift | .102" 2.58mm |
| Valve Inlet Clearance | .008" .20mm |
| Valve Exhaust Clearance | .010" .25mm |
