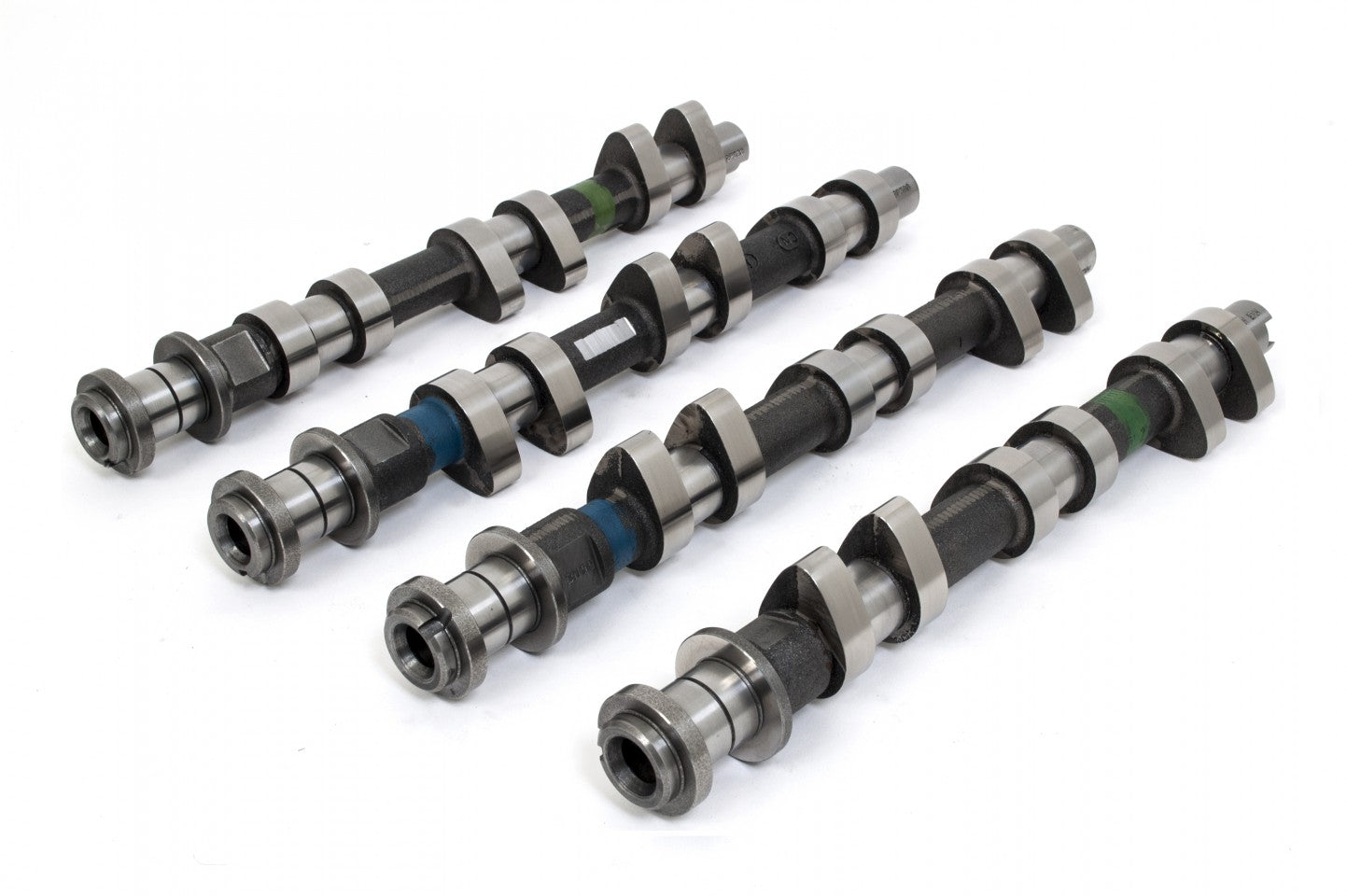

SKU: SKU: JAGV6BP320B
Profile: BP320.
Application: Race.
Unit Type: Blank.
Note: Only available for S-Type engine.
Note: Not suitable for VVT engines.
Note: Use with FOLJV6 followers. (Shim under bucket type).
Download:-
Right click link and select 'Save link as' to download.
Click link to open in a new tab.
| Weight | 10 kg |
|---|---|
| Application | Race |
| Power Band | 3000-8000 |
| Duration Inlet | 296° |
| Duration Exhaust | 288° |
| Valve Inlet Lift | .525" 13.34mm |
| Valve Exhaust Lift | .500" 12.70mm |
| Timing Inlet | 44 - 72 |
| Timing Exhaust | 70 - 38 |
| Full Inlet Lift | 104° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .163" 4.14mm |
| TDC Exhaust Lift | .139" 3.53mm |
| Valve Inlet Clearance | .008" .20mm |
| Valve Exhaust Clearance | .010" .25mm |
