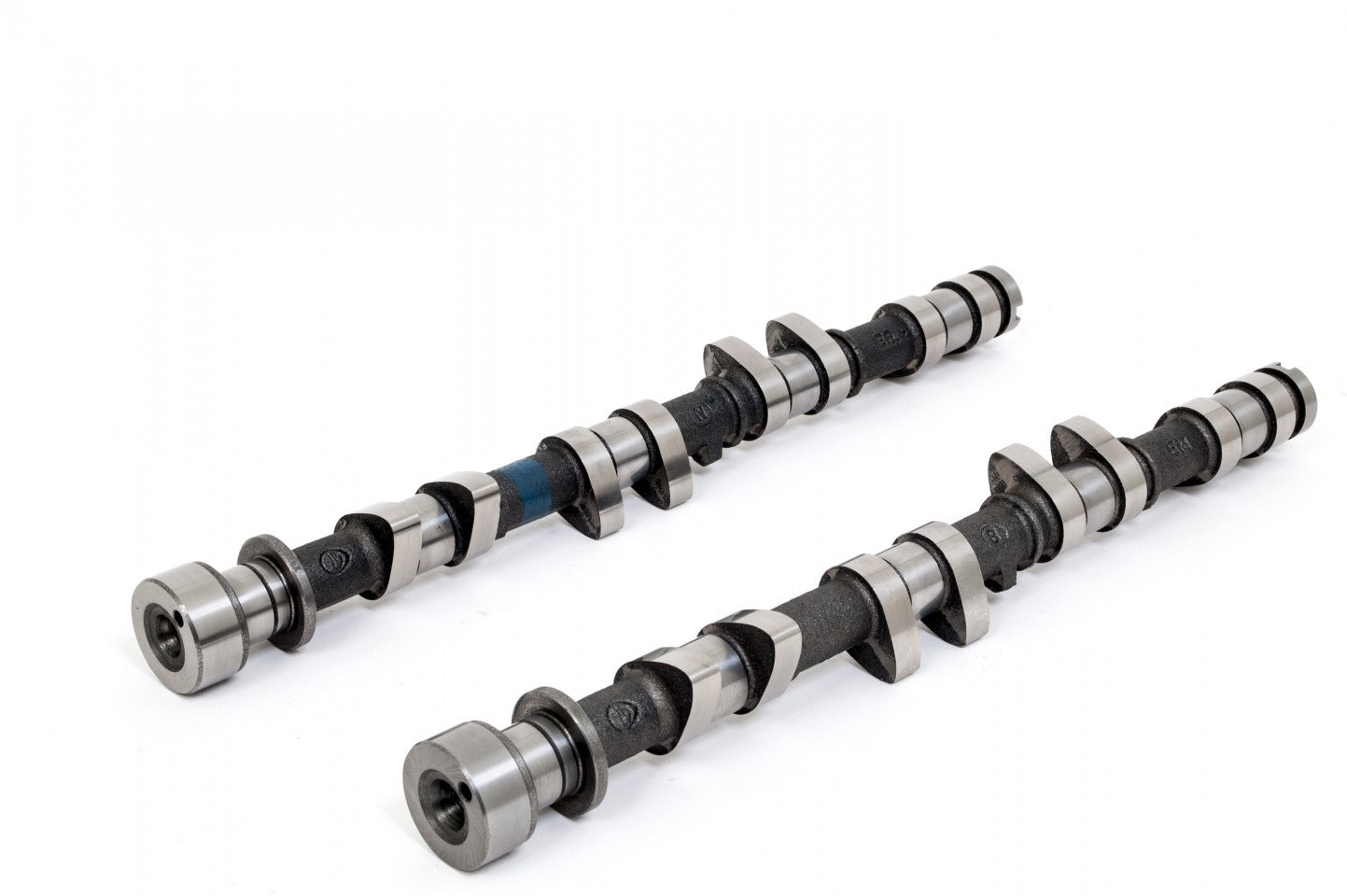

SKU: SKU: FOC16BP300B
Profile: BP300.
Application: Rally.
Unit Type: Blank.
Note: For use in 1.6 engines only.
Note: This profile is not recommended for use with standard fuel injection.
Note:Piper VSSFOC16 or VSSFOC16K valve springs must be used.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 4 kg |
|---|---|
| Application | Rally |
| Power Band | 3500-8200 |
| Duration Inlet | 288° |
| Duration Exhaust | 276° |
| Valve Inlet Lift | .441" 11.19mm |
| Valve Exhaust Lift | .421" 10.68mm |
| Timing Inlet | 40 - 68 |
| Timing Exhaust | 64 - 32 |
| Full Inlet Lift | 104° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .127" 3.23mm |
| TDC Exhaust Lift | .095" 2.41mm |
| Valve Inlet Clearance | .008" .20mm |
| Valve Exhaust Clearance | .010" .25mm |
