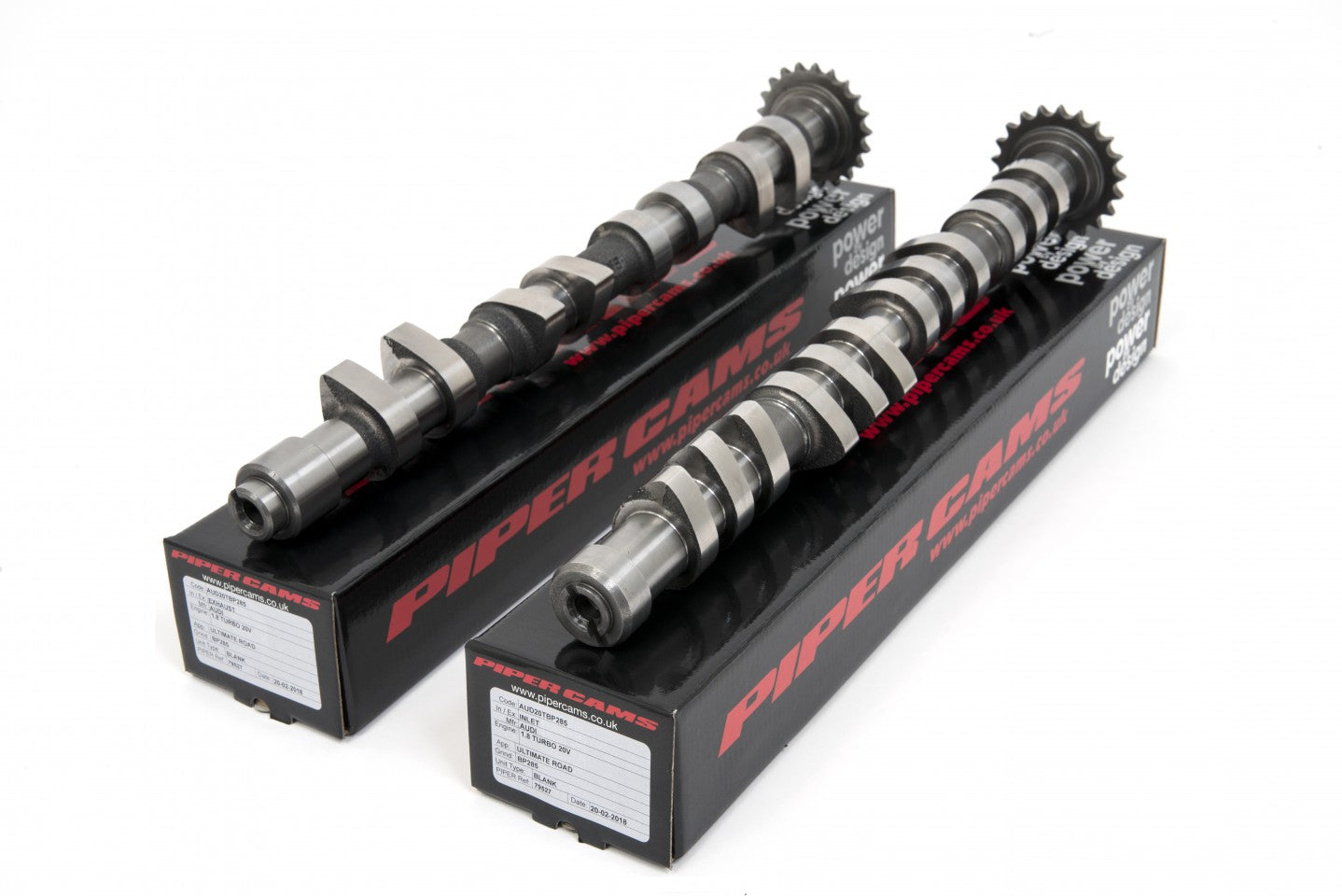

Piper Cams Camshaft - Ultimate Road (V.A.G.)

SKU: SKU: AUD20TBP285B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP285H.

Application: Ultimate Road.

Unit Type: Blank.

Designed for use in engines utilising Hydraulic followers.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 5.5 kg
Application Ultimate Road
Power Band 2500-6500
Power Increase 20+BHP
Duration Inlet 256°
Duration Exhaust 252°
Valve Inlet Lift .342" 8.69mm
Valve Exhaust Lift .407" 10.34mm
Timing Inlet 18 - 58
Timing Exhaust 56 - 16
Full Inlet Lift 110°
Full Exhaust Lift 110°
TDC Inlet Lift .024" 0.60mm
TDC Exhaust Lift .021" 0.53mm
Valve Inlet Clearance HYDRAULIC
Valve Exhaust Clearance HYDRAULIC

Vehicle Application

  • VAG 1.8T 20v Turbo
