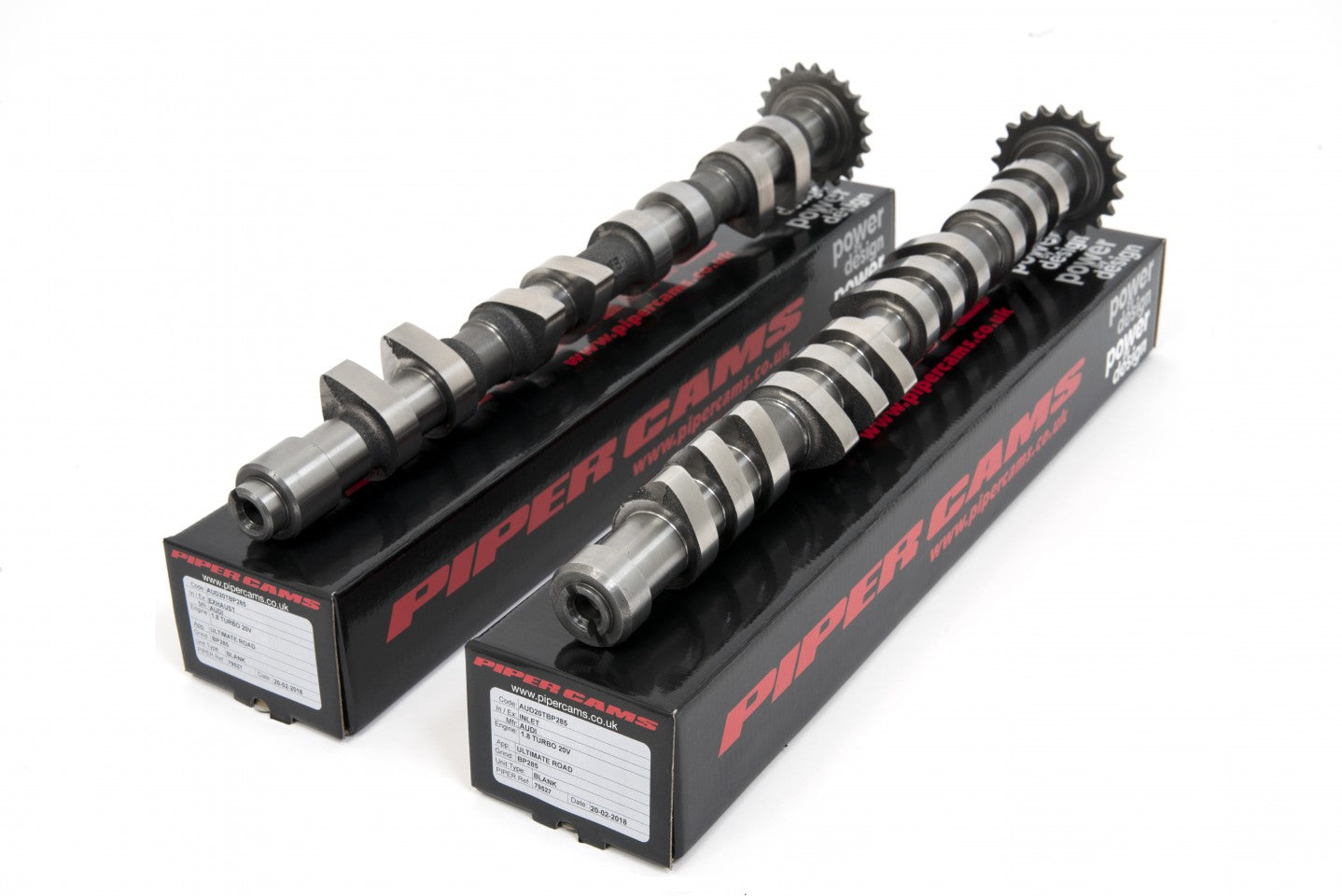

Piper Cams Camshaft - Race (V.A.G.)

SKU: SKU: AUD20TBP300B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP300H.

Application: Rally.

Unit Type: Blank.

Designed for use in engines utilising Hydraulic followers.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 5.5 kg
Application Race
Power Band 3500-7500
Duration Inlet 264°
Duration Exhaust 268°
Valve Inlet Lift .350" 8.89mm
Valve Exhaust Lift .433" 11.00mm
Timing Inlet 24 - 60
Timing Exhaust 64 - 24
Full Inlet Lift 108°
Full Exhaust Lift 110°
TDC Inlet Lift .045" 1.13mm
TDC Exhaust Lift .064" 1.62mm
Valve Inlet Clearance HYDRAULIC
Valve Exhaust Clearance HYDRAULIC

Vehicle Application

  • VAG 1.8T 20v Turbo
