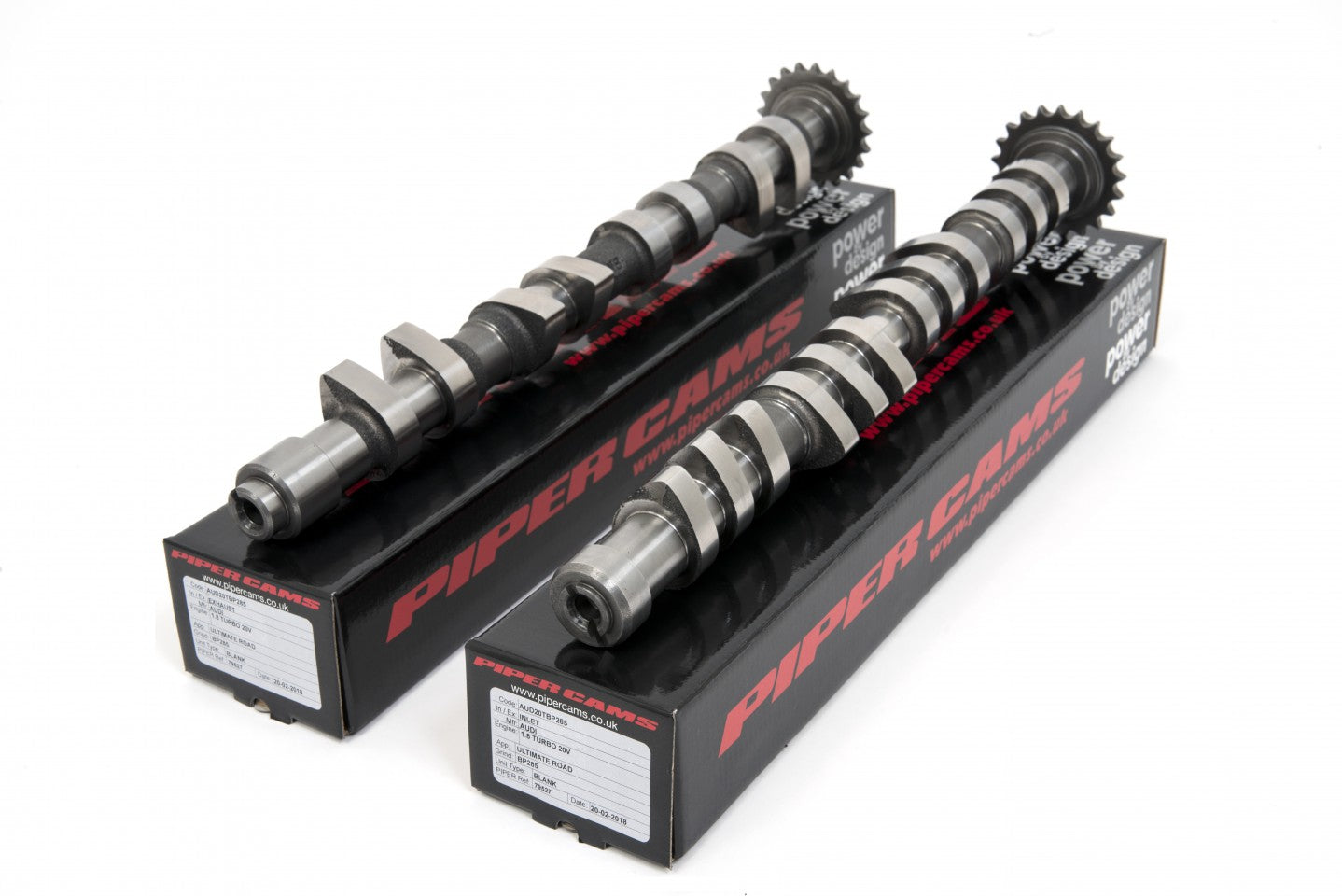

Piper Cams Camshaft - Fast Road (V.A.G.)

SKU: SKU: AUD20TBP270B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP270H.

Application: Fast Road.

Unit Type: Blank.

Designed for use in engines utilising Hydraulic followers.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 5.5 kg
Application Fast Road
Power Band 2000-6000
Power Increase 15BHP
Duration Inlet 252°
Duration Exhaust 246°
Valve Inlet Lift .325" 8.26mm
Valve Exhaust Lift .380" 9.66mm
Timing Inlet 14 - 58
Timing Exhaust 55 - 11
Full Inlet Lift 112°
Full Exhaust Lift 112°
TDC Inlet Lift .021" 0.53mm
TDC Exhaust Lift .024" 0.60mm
Valve Inlet Clearance HYDRAULIC
Valve Exhaust Clearance HYDRAULIC

Vehicle Application

  • VAG 1.8T 20v Turbo
