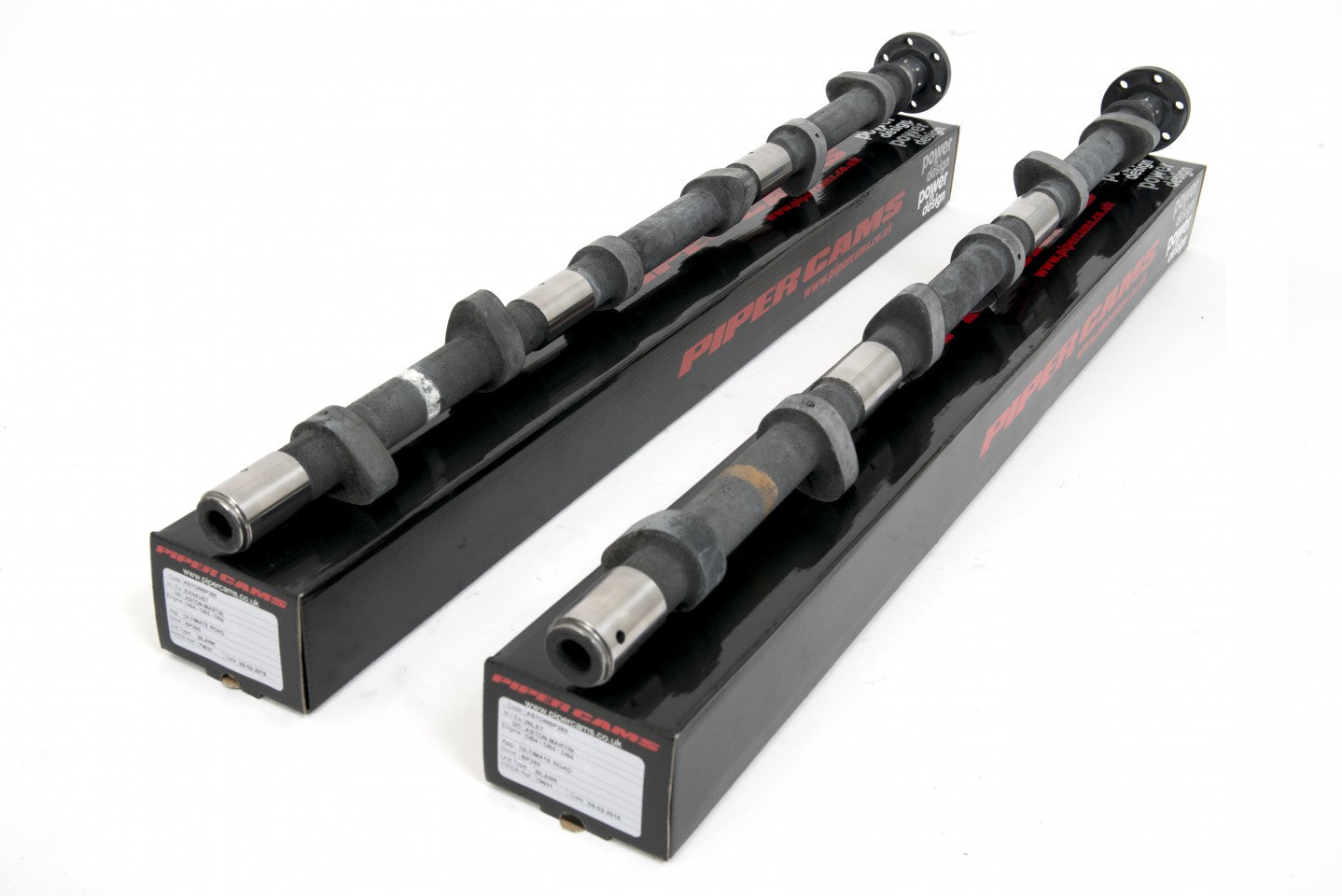

Piper Cams Camshaft - Race (Aston Martin)

SKU: SKU: ASTONBP320B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP320.

Application: Race.

Unit Type: Blank.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 3 kg
Application Race
Power Band 2800-7500
Duration Inlet 310°
Duration Exhaust 310°
Valve Inlet Lift .543" 13.79mm
Valve Exhaust Lift .541" 13.74mm
Timing Inlet 51 - 79
Timing Exhaust 79 - 51
Full Inlet Lift 104°
Full Exhaust Lift 104°
TDC Inlet Lift .191" 4.85mm
TDC Exhaust Lift .189" 4.80mm
Valve Inlet Clearance .017" .43mm
Valve Exhaust Clearance .019" .48mm

Vehicle Application

  • DB5 / DB6
