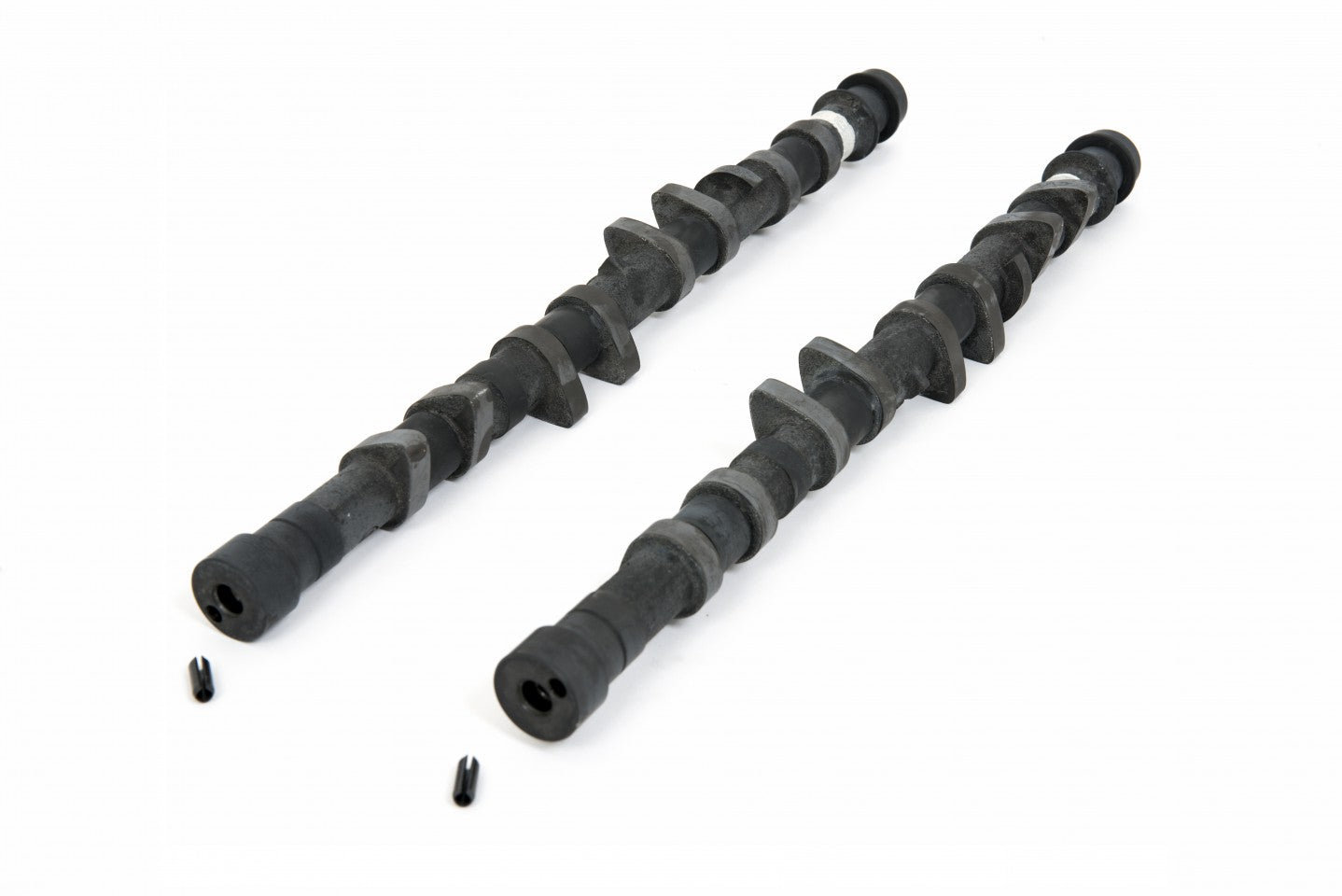

SKU: SKU: ARKBP270HB
Profile: BP270H.
Application: Fast Road.
Unit Type: Blank.
Designed for use in engines utilising Hydraulic followers. See Piper FOLKH
Note:Straight forward installation, designed for use in the 1.6L or 1.8L engine. Piper PULDK Vernier Pulleys advised.
Note: Not for use in VVC engines.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 4 kg |
|---|---|
| Application | Fast Road |
| Power Band | 2000-7000 |
| Power Increase | 16BHP |
| Duration Inlet | 260° |
| Duration Exhaust | 260° |
| Valve Inlet Lift | .380" 9.65mm |
| Valve Exhaust Lift | .380" 9.65mm |
| Timing Inlet | 20 - 60 |
| Timing Exhaust | 64 - 16 |
| Full Inlet Lift | 110° |
| Full Exhaust Lift | 114° |
| TDC Inlet Lift | .035" 0.89mm |
| TDC Exhaust Lift | .016" 0.41mm |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
