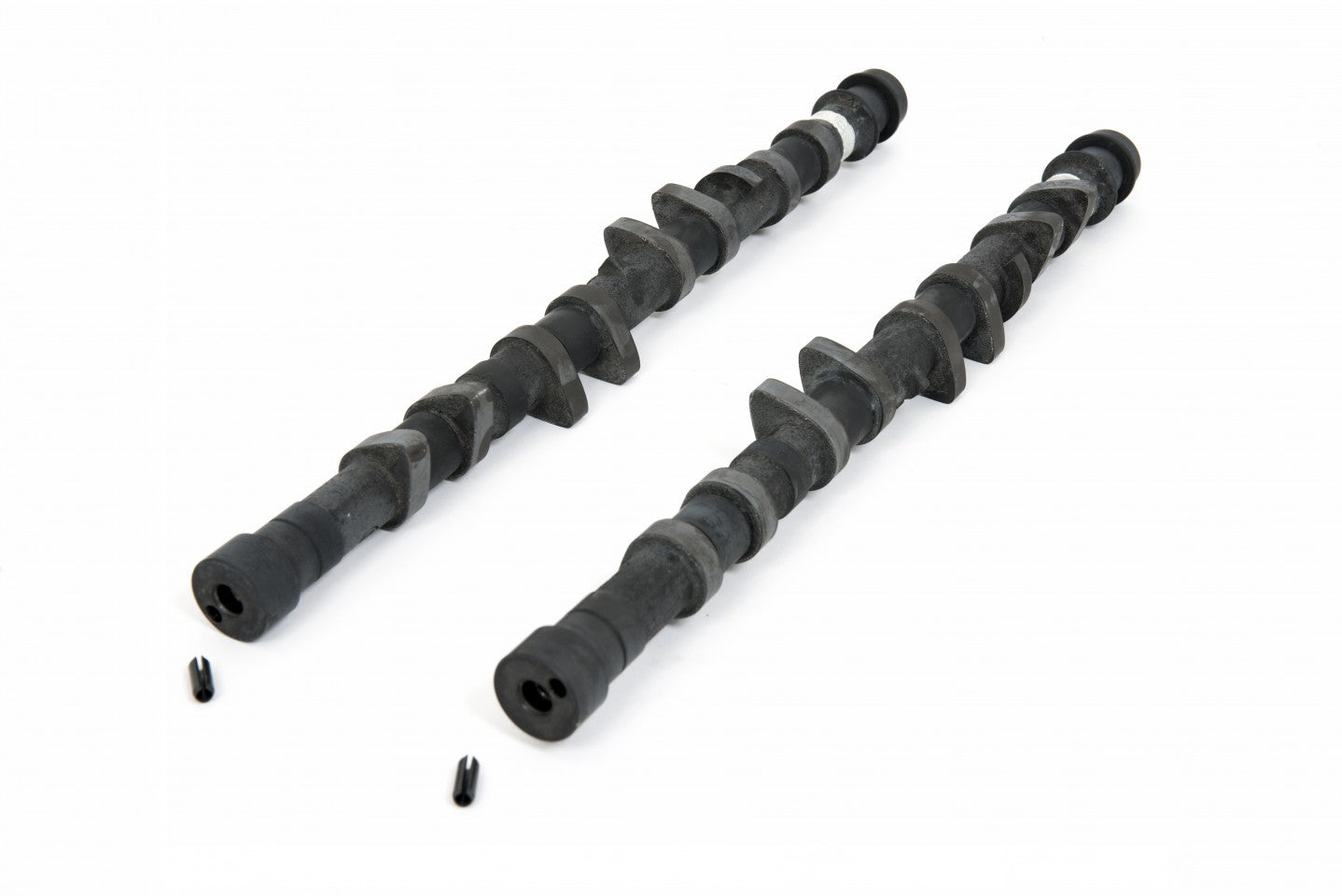

SKU: SKU: ARKBP285HB
Profile: BP285H.
Application: Ultimate Road.
Unit Type: Blank.
Designed for use in engines utilising Hydraulic followers. See Piper FOLKH
Note:Not recommended for standard injection.
Note: Not for use in VVC engines.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 4 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 2500-7500 |
| Power Increase | 20BHP+ |
| Duration Inlet | 274° |
| Duration Exhaust | 274° |
| Valve Inlet Lift | .433" 11.00mm |
| Valve Exhaust Lift | .433" 11.00mm |
| Timing Inlet | 29 - 65 |
| Timing Exhaust | 67 - 27 |
| Full Inlet Lift | 108° |
| Full Exhaust Lift | 110° |
| TDC Inlet Lift | .088" 2.23mm |
| TDC Exhaust Lift | .078" 1.98mm |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
