SKU: SKU: AR16VBP285R
Profile BP285
Application: Ultimate Road.
Unit Type: Re-Profiled Camshafts.
Note: Mechanical cam profile. Designed for use with Mechanical cam followers only.
Note:These are re-profile camshafts only. You will need to complete our Send Parts form and send us your existing camshafts. For more information, please take a look at our Reprofiling page.

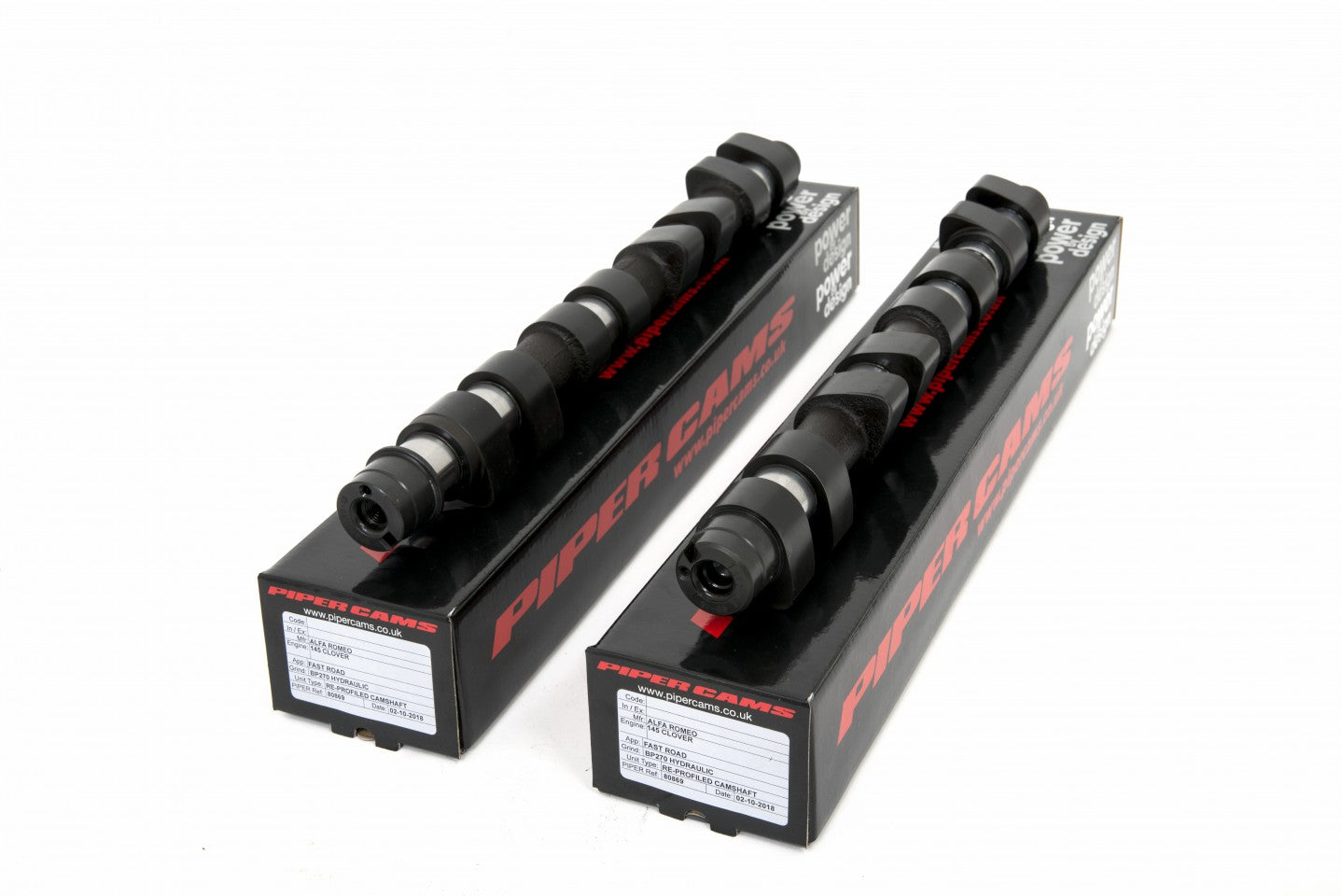

Note:There are many variants of this engine available which may dispute quoted profile data. Pictured cams are 145 Cloverleaf 2L Normally Aspirated Twinspark I4.
| Weight | 3 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 2500-7500 |
| Duration Inlet | 272° |
| Duration Exhaust | 264° |
| Valve Inlet Lift | .432" 10.97mm |
| Valve Exhaust Lift | .415" 10.53mm |
| Timing Inlet | 30 - 62 |
| Timing Exhaust | 58 - 26 |
| Full Inlet Lift | 106° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .084" 2.41mm |
| TDC Exhaust Lift | .081" 2.06mm |
| Valve Inlet Clearance | .008" .20mm |
| Valve Exhaust Clearance | .010" .25mm |
