SKU: SKU: AR16VBP300R
Profile BP300
Application: Rally.
Unit Type: Re-Profiled Camshafts.
Note: Mechanical cam profile. Designed for use with Mechanical cam followers only.
Note:These are re-profile camshafts only. You will need to complete our Send Parts form and send us your existing camshafts. For more information, please take a look at our Reprofiling page.

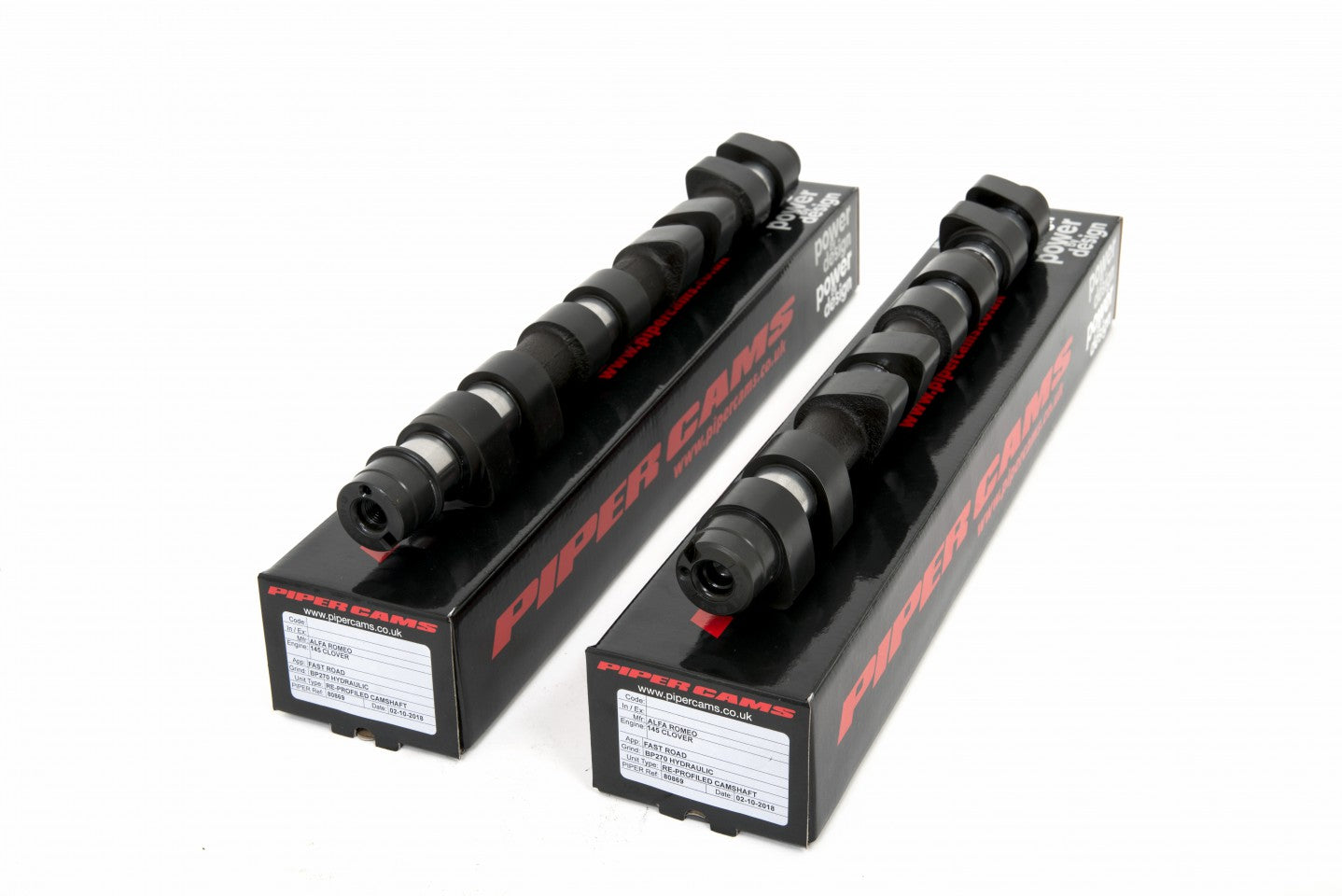

Note:There are many variants of this engine available which may dispute quoted profile data. Pictured cams are 145 Cloverleaf 2L Normally Aspirated Twinspark I4.
| Weight | 3 kg |
|---|---|
| Application | Rally |
| Power Band | 3000-8000 |
| Duration Inlet | 276° |
| Duration Exhaust | 276° |
| Valve Inlet Lift | .457" 11.60mm |
| Valve Exhaust Lift | .450" 11.42mm |
| Timing Inlet | 32 - 64 |
| Timing Exhaust | 64 - 32 |
| Full Inlet Lift | 106° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .110" 2.80mm |
| TDC Exhaust Lift | .097" 2.46mm |
| Valve Inlet Clearance | .008" .20mm |
| Valve Exhaust Clearance | .010" .25mm |
