SKU: SKU: AR16VBP270HR
Profile BP270H
Application: Fast Road.
Unit Type: Re-Profiled Camshaft.
Note: Hydraulic cam profile. Designed for use with Hydraulic cam followers only.
Note:These are re-profile camshafts only. You will need to complete our Send Parts form and send us your existing camshafts. For more information, please take a look at our Reprofiling page.

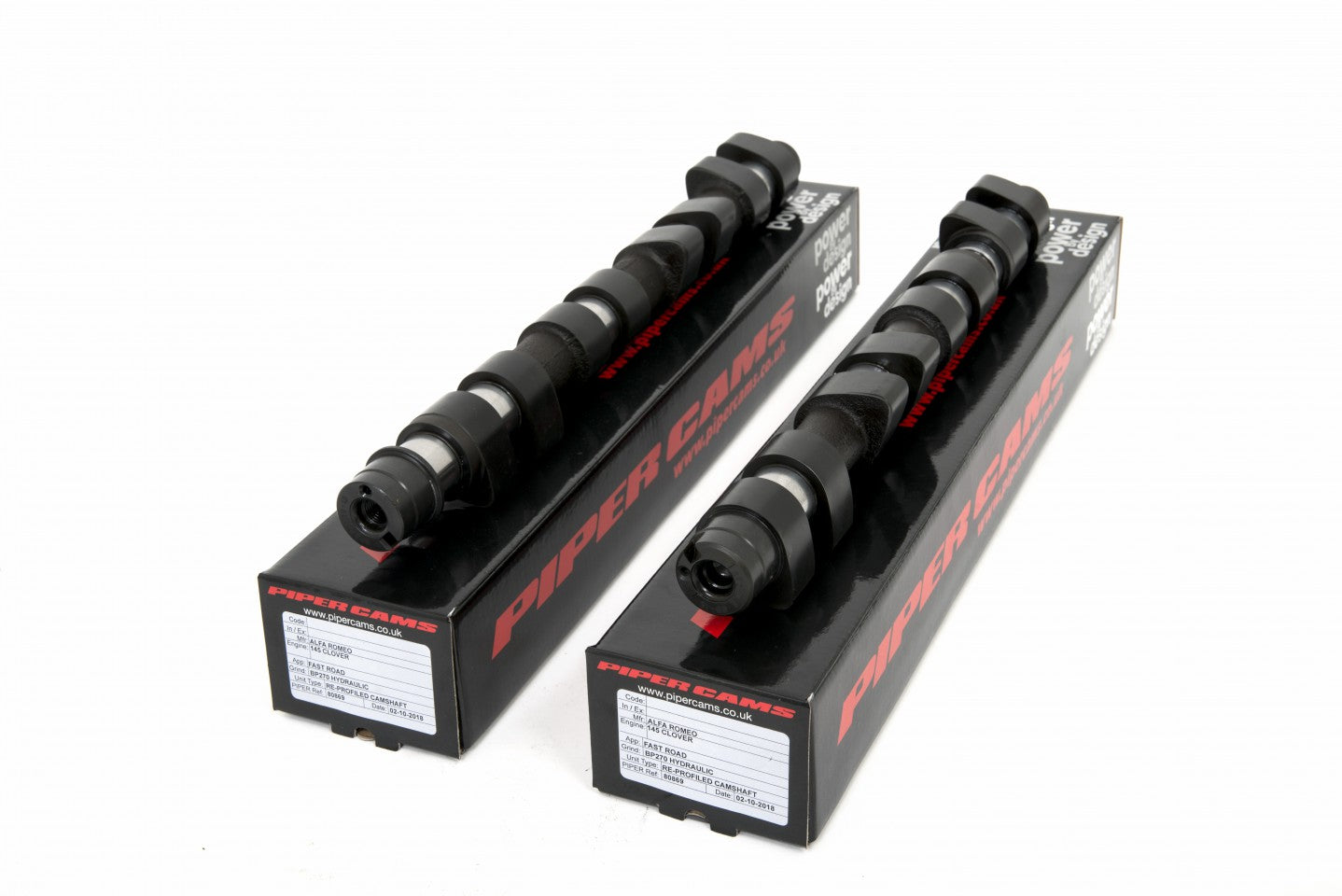

Note:There are many variants of this engine available which may dispute quoted profile data. Pictured cams are 145 Cloverleaf 2L Normally Aspirated Twinspark I4.
| Weight | 3 kg |
|---|---|
| Application | Fast Road |
| Power Band | 1500-6500 |
| Power Increase | 10BHP |
| Duration Inlet | 258° |
| Duration Exhaust | 258° |
| Valve Inlet Lift | .395" 10.03mm |
| Valve Exhaust Lift | .395" 10.03mm |
| Timing Inlet | 19 - 59 |
| Timing Exhaust | 59 - 19 |
| Full Inlet Lift | 110° |
| Full Exhaust Lift | 110° |
| TDC Inlet Lift | .053" 1.33mm |
| TDC Exhaust Lift | .053" 1.33mm |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
