SKU: SKU: HKS32018-AT041

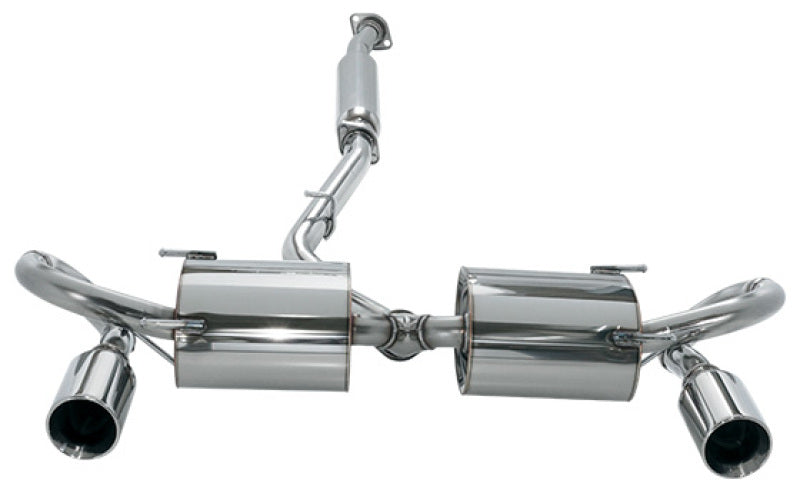

HKS LEGAMAX Sports S-Tail ZN6/ZC6
Succeeded in achieving both comfortable sound and low exhaust pressure
HKS reduced annoying lower sound by tuning the exhaust sound. The sound at low to mid RPM is silenced like the stock exhaust system. However, a low exhaust pressure design enables users to advance for the next tuning level. This exhaust system can stand over 350ps.
This exhaust system EU Certified fully legal exhaust system.
| Cert. No. | JQR30133208 |
|---|
| Vehicle | 86 |
|---|---|
| Model | ZN6 |
| Engine | FA20 |
| Model Year | 12/04 - 21/10 |
| Shape of muffler | RS (LEGAMAX Sports) | |
|---|---|---|
| Main material | S304 | |
| Diameter of tip | 100 L&R | |
| Diameter of center pipe | 60 → 50 x 2 (*1) | |
| Close noise level | Stock | 82 |
| HKS | 88 | |
| About road clearance(*2) | Clearance | 142mm |
| Portion of the kit | Center pipe | |
| Remarks | ||
| Product Weight | 17.0kg | |
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
LEGAMAX Sports
Vehicle: BRZ
Application
Specifications
BRZ DBA-, 4BA-ZC6 Succeeded in achieving both comfortable sound and low exhaust pressure HKS reduced annoying lower sound by tuning the exhaust sound. The sound at low to mid RPM is silenced like the stock exhaust system. However, a low exhaust pressure design enables users to advance for the next tuning level. This exhaust system can stand over 350ps. This exhaust system EU Certified fully legal exhaust system. Cert. No. JQR30133208 Vehicle BRZ Model ZC6 Engine FA20 Model Year 12/03 - 21/07 Shape of muffler RS (LEGAMAX Sports) Main material S304 Diameter of tip 100 L&R Diameter of center pipe 60 → 50 x 2 (*1) Close noise level Stock 82 HKS 88 About road clearance(*2) Clearance 142mm Portion of the kit Center pipe Remarks Product Weight 17.0kg Remarks About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. [ CLOSE ]
