SKU: SKU: HKS32018-AT041V

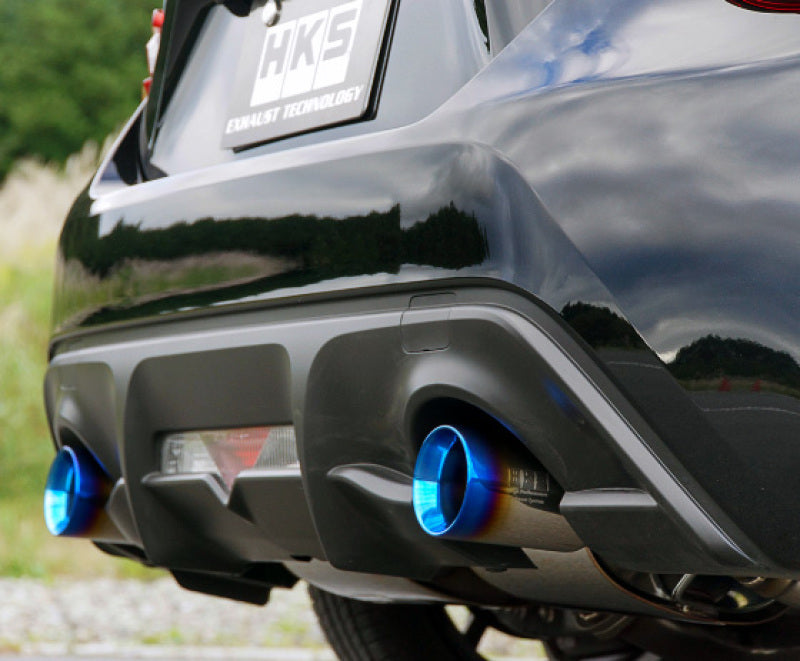

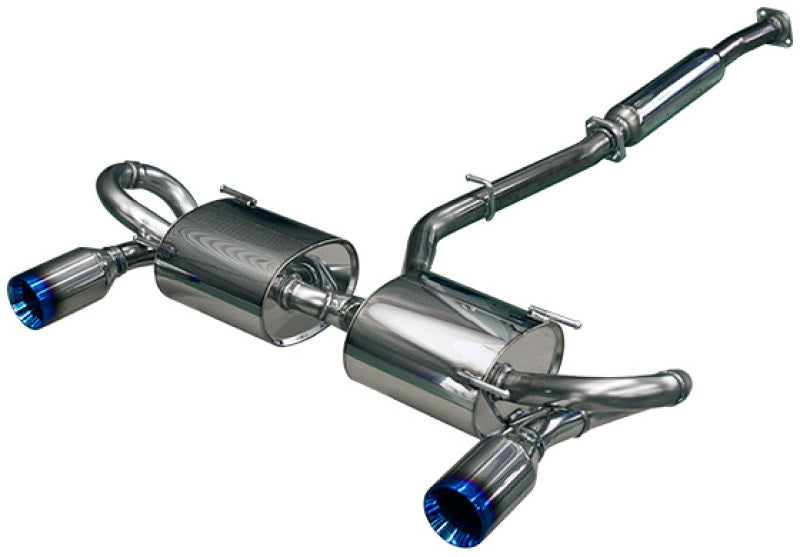

HKS LEGAMAX Sports S-Tail Ti ZN6/ZC6
A complete muffler that combines "quietness" and "high power".
The sound inside the car at low RPMs used in city driving is so quiet that it can be mistaken for a genuine product, and there is no unpleasant humming sound.
However, while it is quiet, at high RPMs you can enjoy a sporty and comfortable sound.
In addition, the overwhelming low exhaust pressure design, which allows for tuning step-ups, allows for an impressive 350ps! It
has the top class capacity of aftermarket mufflers, but does not sacrifice practicality at all.
| Certification number | JQR30133208 |
|---|
| Model name | 86 |
|---|---|
| Model | ZN6 |
| Engine type | FA20 |
| Model year | 12/04 - 21/10 |
| Muffler shape |
RS (Titan) (LEGAMAX Sports) |
|
|---|---|---|
| Main Material | S304 | |
| Tail Outer Diameter | 100 L&R | |
| Intermediate Pipe Diameter | 60 → 50 x 2 (※1) | |
| Nearby exhaust noise | normal | 82 |
| HKS | 88 | |
| Regarding ground clearance when installed (※2) | Number | 142mm |
| Kit target area | Intermediate Pipe | |
| remarks | ||
| HKS product weight | 17.0kg | |
Blue gradation tail, compatible with after model change
*1: Regarding intermediate pipes,
the Φ number of the intermediate pipe diameter in the muffler is the Φ number of the thickest part in the structure (excluding the shell and the outer diameter of the tail).
*2: When the HKS muffler is installed, the part with the smallest clearance between the HKS muffler (all parts included in the kit) and the road surface is listed. Therefore, it may differ from the minimum ground clearance of the vehicle itself.
The data is basically for vehicles with normal suspension, but please note that some data is for use in combination with low-down springs or height-adjustable suspension kits.
Note: Hooks, brackets, and stays are subject to change without notice.
*Exhaust volume at idling
LEGAMAX Sports
Vehicle: BRZ
Application
Specifications
BRZ DBA-, 4BA-ZC6 Cert. No. JQR30133208 Vehicle BRZ Model ZC6 Engine FA20 Model Year 12/03 - 21/07 Shape of muffler RS (Titan) (LEGAMAX Sports) Main material S304 Diameter of tip 100 L&R Diameter of center pipe 60 → 50 x 2 (*1) Close noise level Stock 82 HKS 88 About road clearance(*2) Clearance 142mm Portion of the kit Center pipe Remarks Product Weight 17.0kg Remarks About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. [ CLOSE ]
