CAE Shifter Mitsubishi Lancer EVO 5-9 5-Speed

CAE Ultra Shifter - optimized for motorsport, with the following features:

• CAE Ultra Shifter for Lancer EVO 5 - 9 mit 5 -speed gearbox for use with the original shift cables. Shifter is not for 6-speedcompatible
• This shift type uses the factory reverse gear lock in the gearbox (no mechanism at the gear lever).
• The shifter is operated with the original shift cables.
• Short and ultra-precise shift throws H-pattern.
• The clutch system remains stock.
• Optimal ergonomics with a motorsport focus: Perfect gear lever placement close to the steering wheel. The H-pattern gate spans approx. 65 x 65 mm.

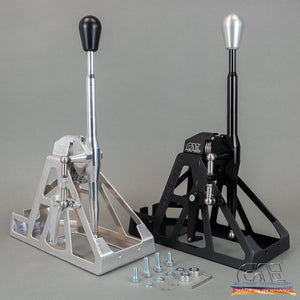

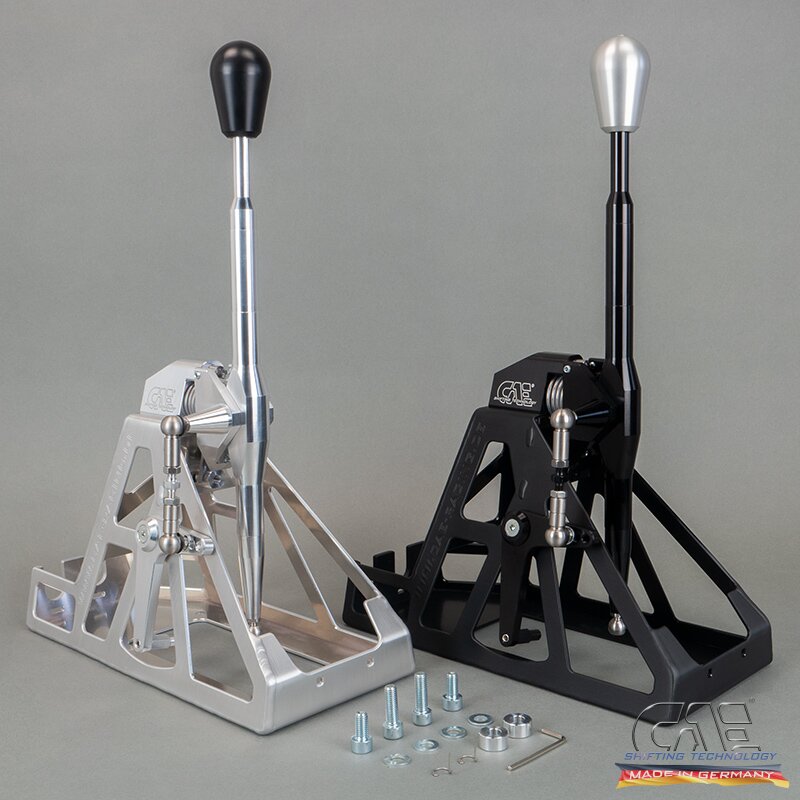

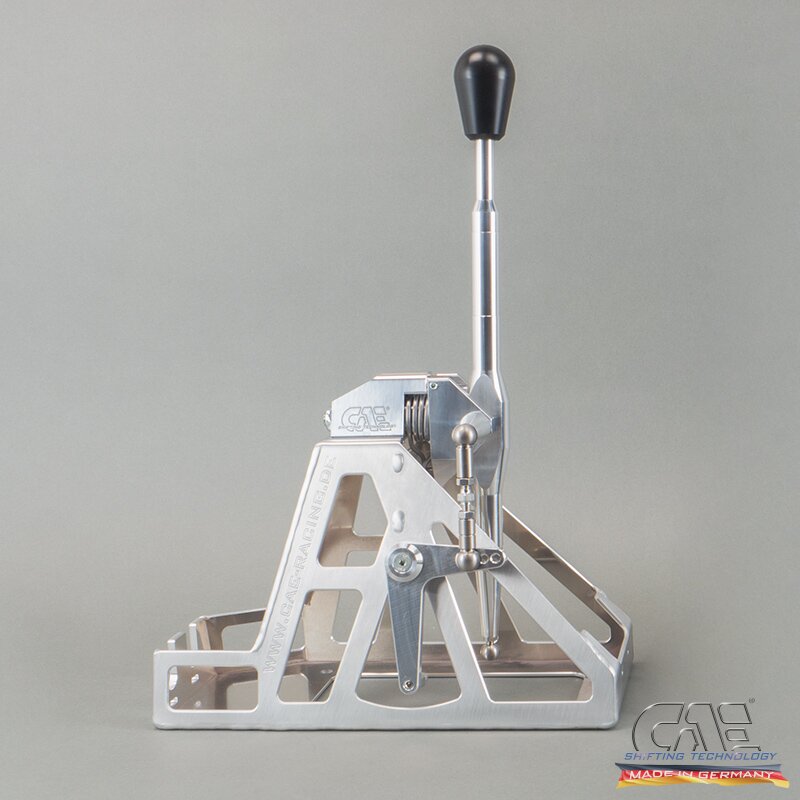

• Low weight with high rigidity: The milled and turned components are machined from 7075 aluminum; the subframe structures are made from laser-cut 3 mm AlMg3 aluminum sheet, joined by TIG welding and brushed to a clean finish.
• Smooth gear changes under load and during cornering.

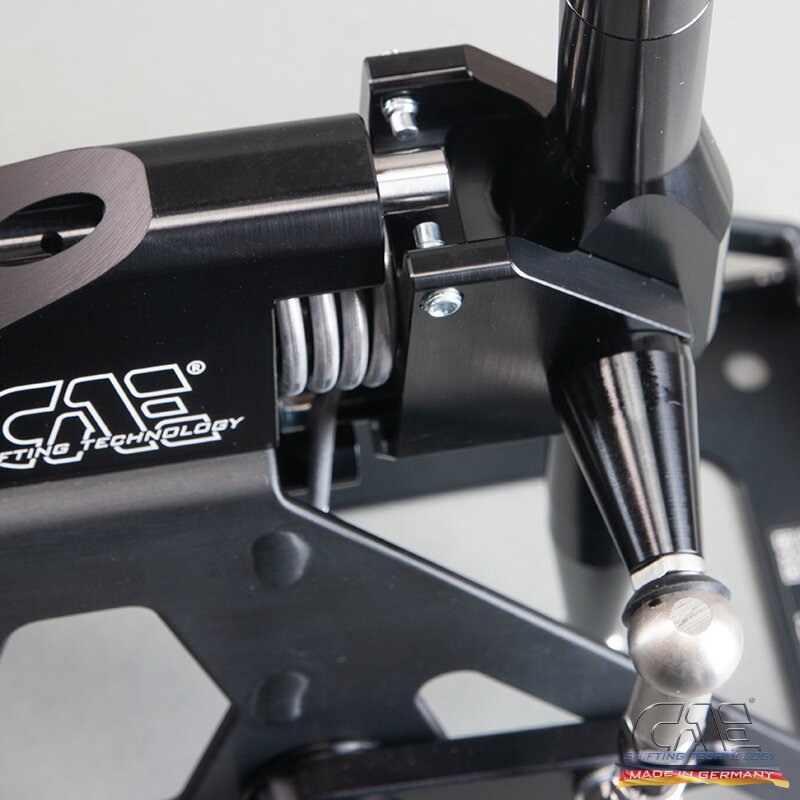

• Integrated center detent spring provides perfect gate feedback during upshifts and downshifts.
• Left/right stops and reverse stop are independently adjustable.
• Easy installation with a complete conversion kit; delivery includes all small parts, fasteners, and a detailed installation manual.

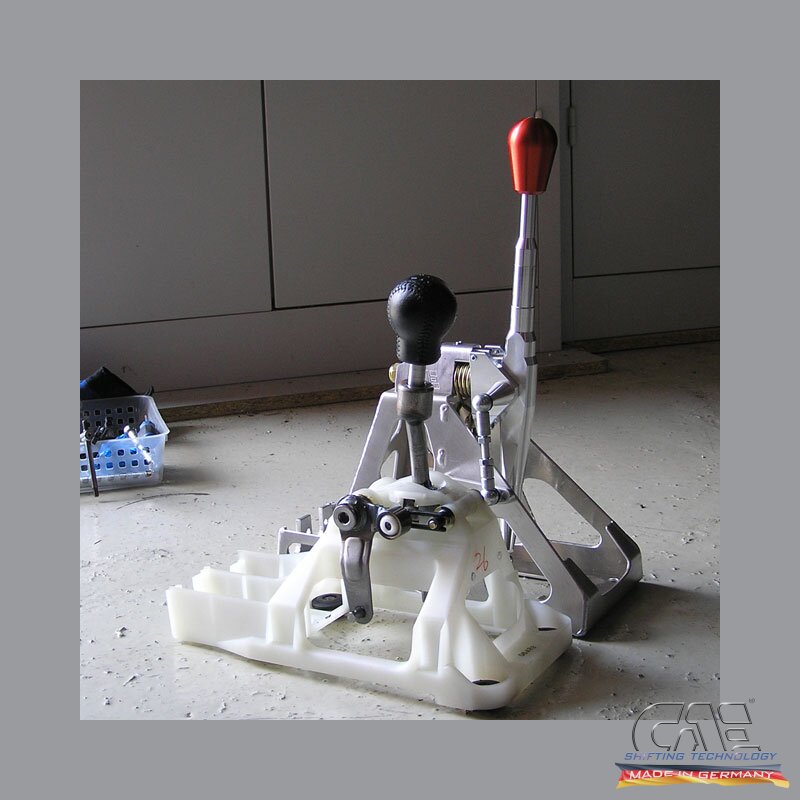

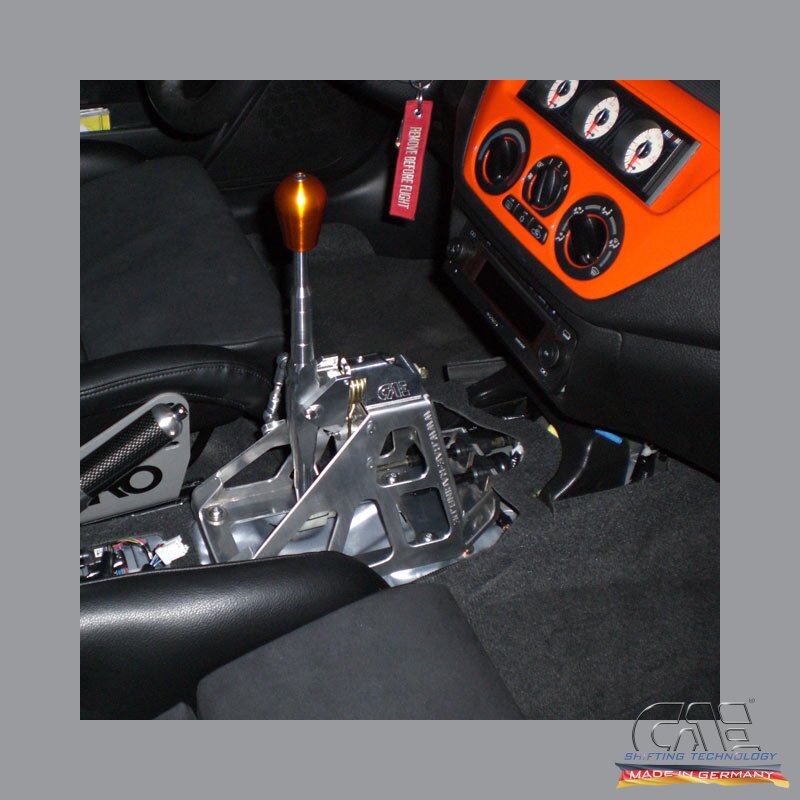

• The shifter is designed for vehicles without interior trim / without a center console and uses the mounting points of the original gear lever.

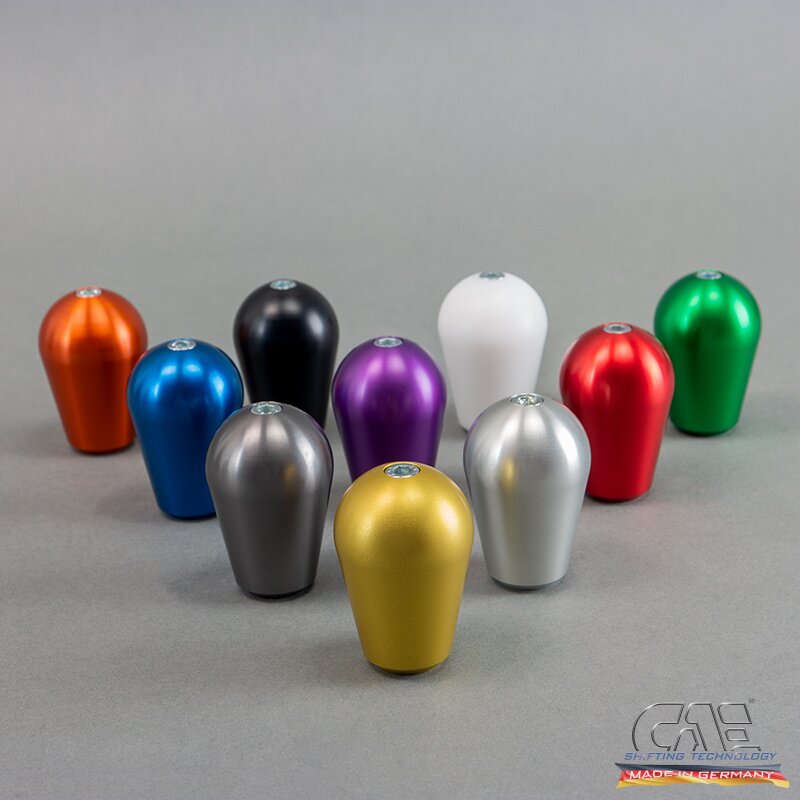

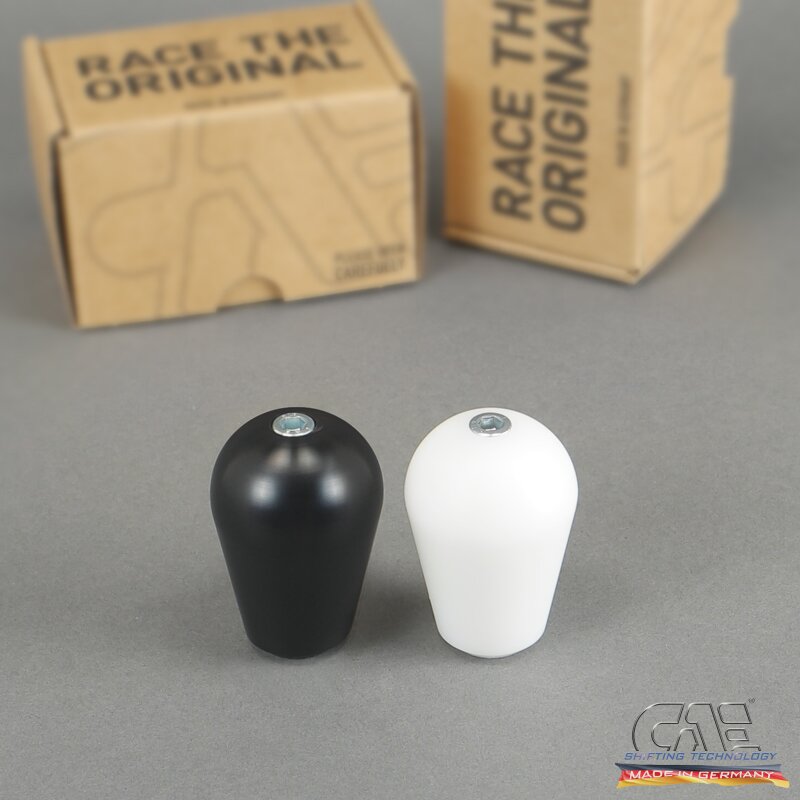

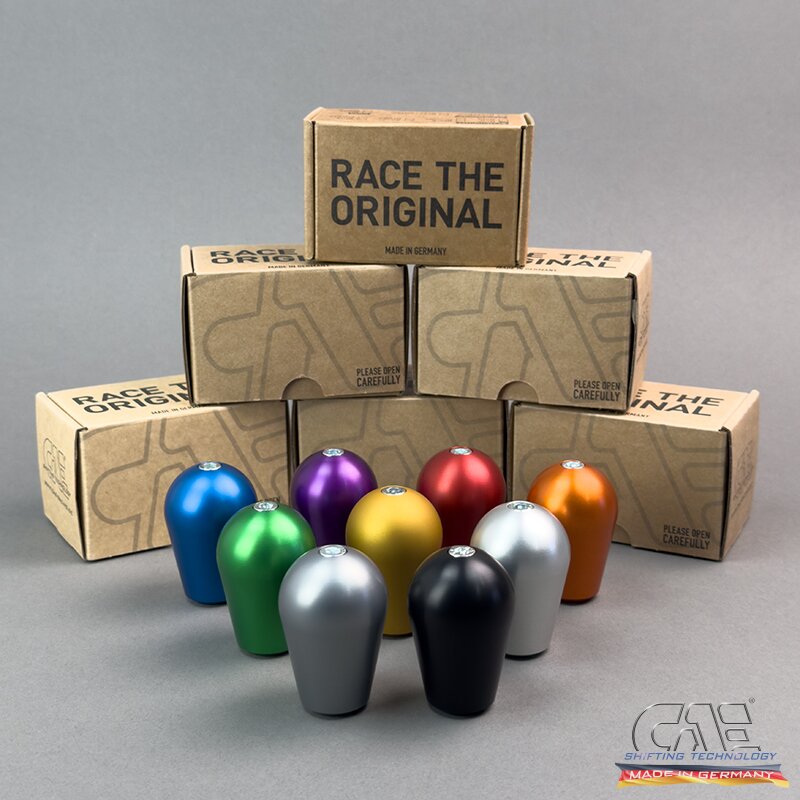

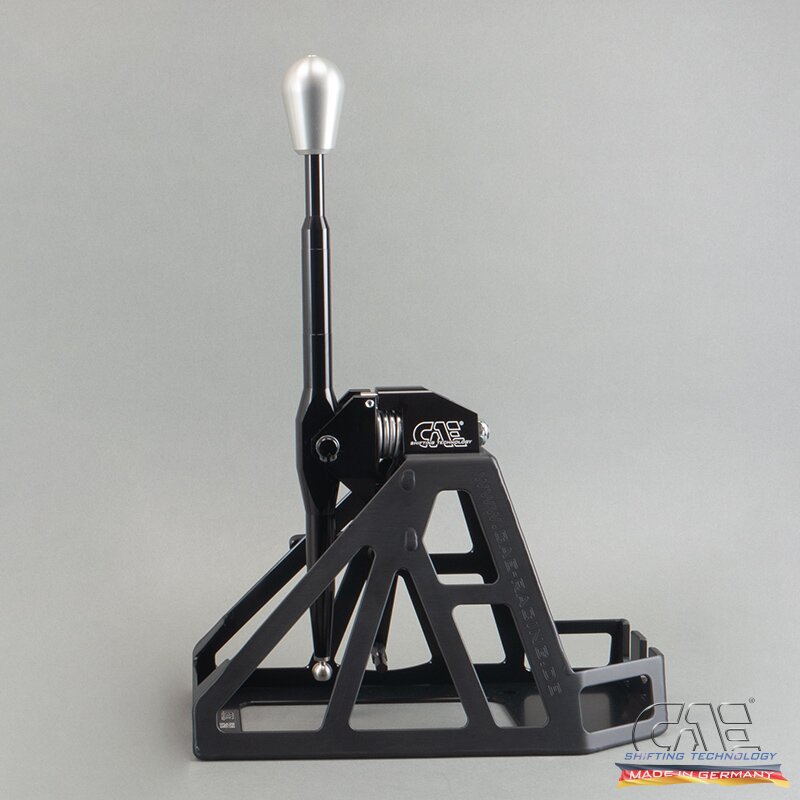

• Shifter surface finish and shift knob available in multiple configurations; and optionally covered in gray Alcantara with a colored X-stitch.

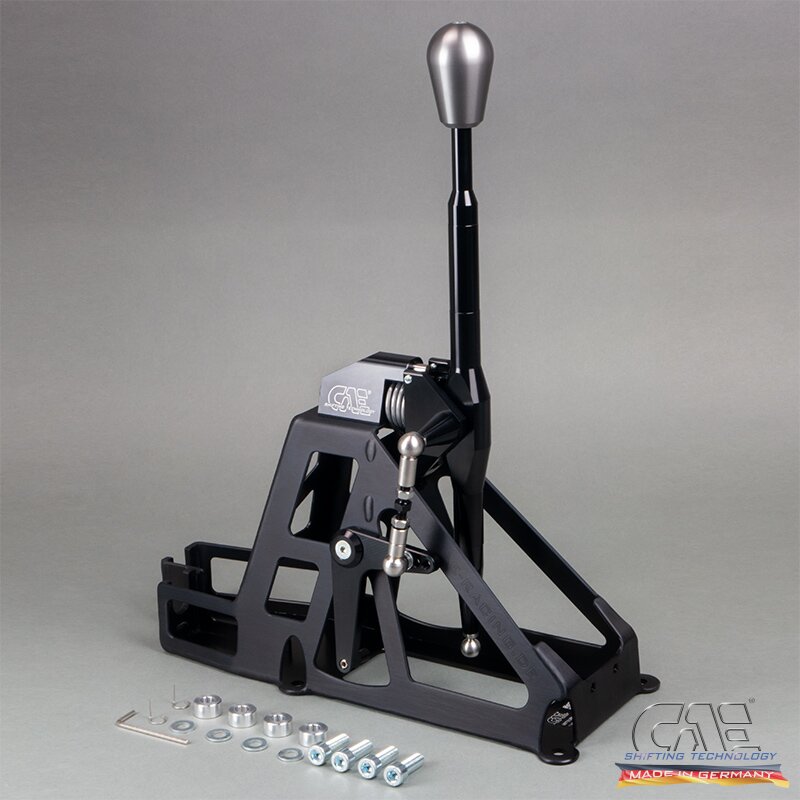

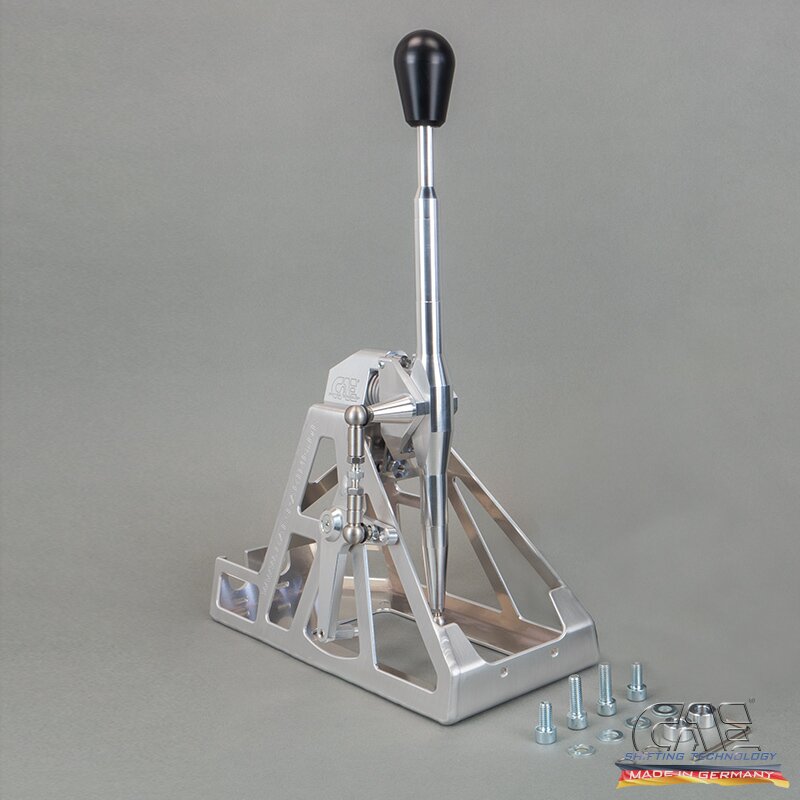

Scope of delivery: Shifter fully assembled, mounting hardware

The installation manual is available for download under the "PDF" tab

For your personal certificate, please contact us.
