CAE Shifter MB W201 ELOX SW-

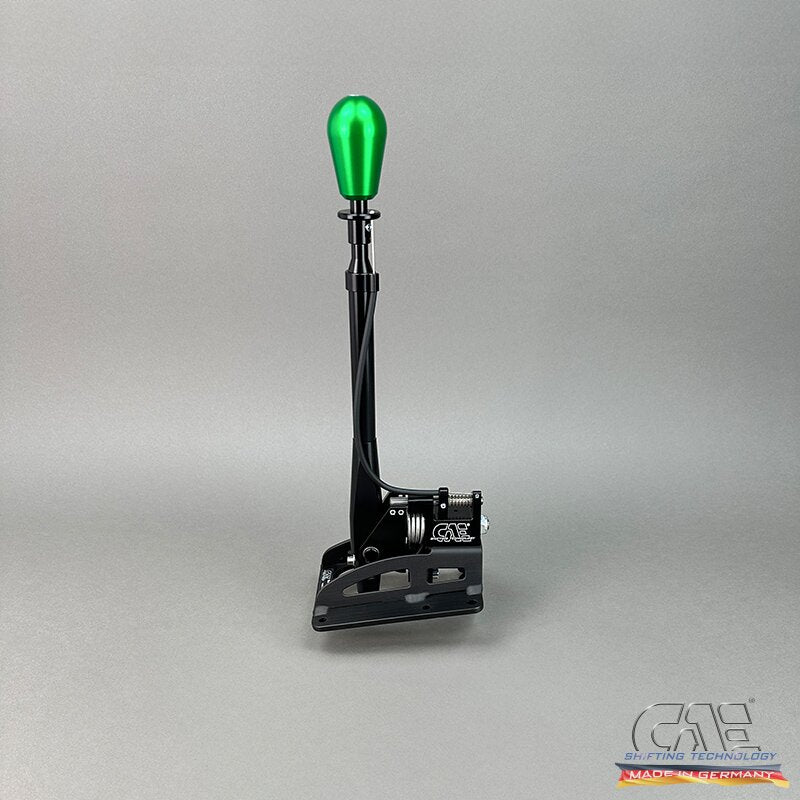

CAE ULTRA Shifter - optimized for motorsport, with the following features:

• CAE ULTRA Shifter for MB W201 with 5- and 6-speed Getrag gearbox (Typ 265, 240), Standard H-pattern or Dog Leg.

  !!! This shifter does not work with the original MB gearbox with e xternal shift rods" !!!

• Short and ultra-precise shift throws H-pattern.
• The clutch system remains stock.

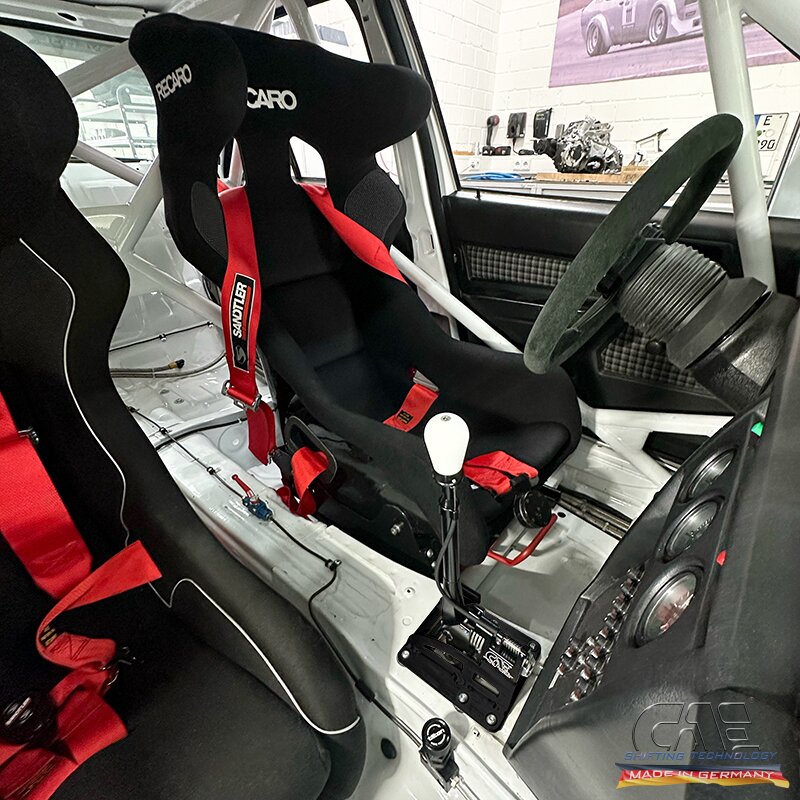

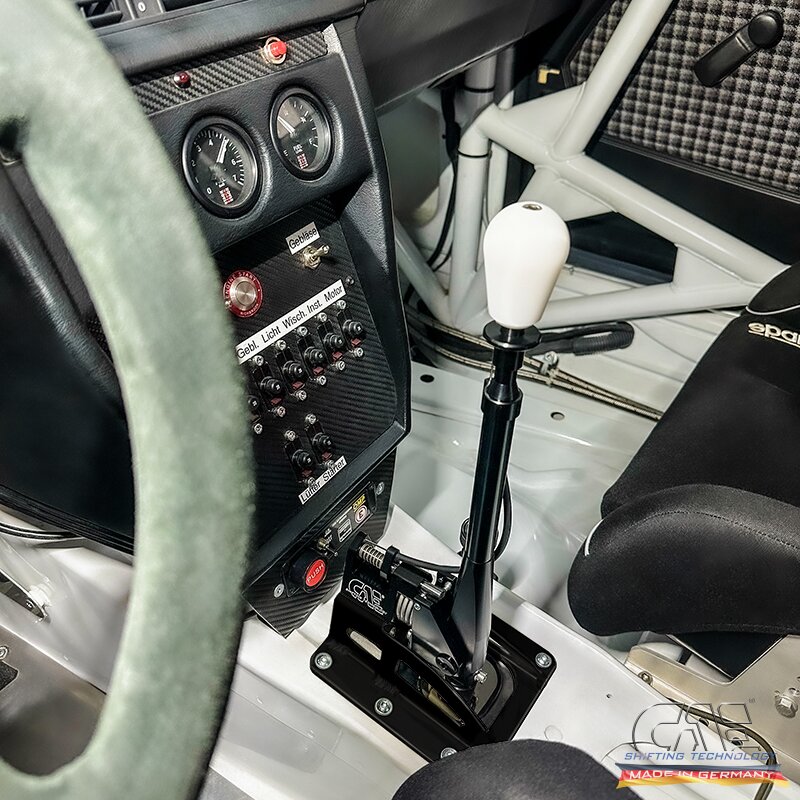

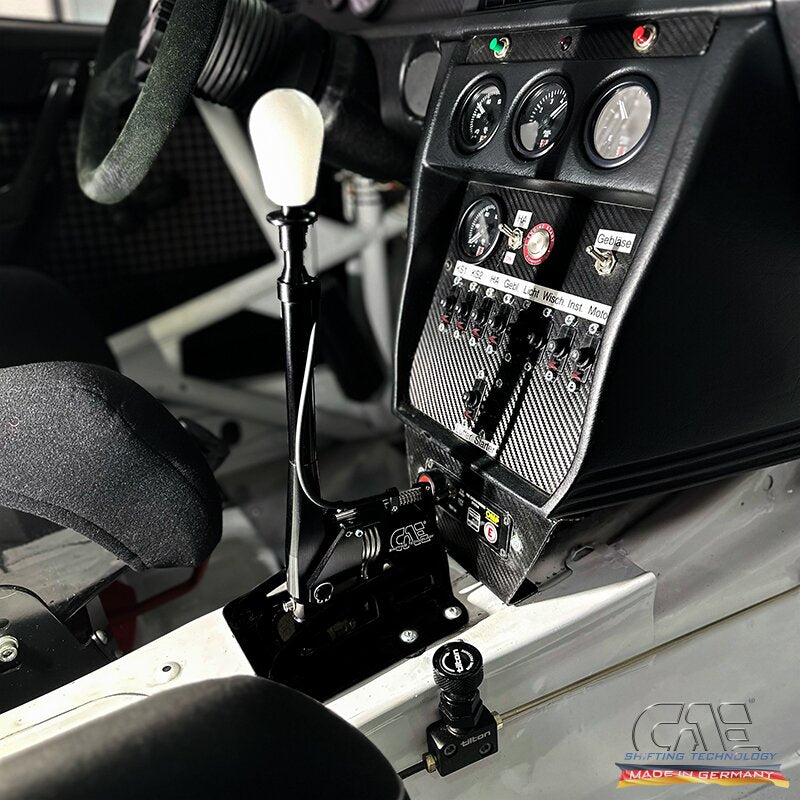

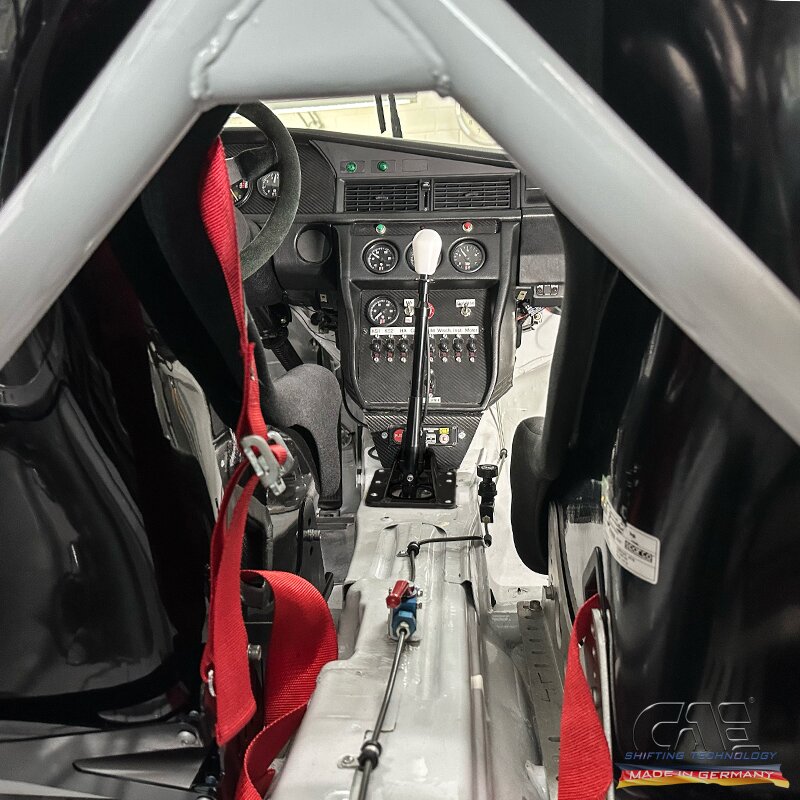

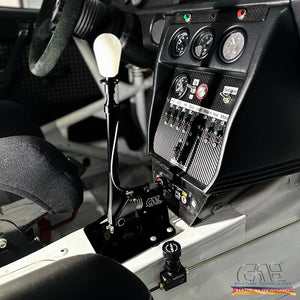

• Optimal ergonomics with a motorsport focus: Perfect gear lever placement close to the steering wheel. The H-pattern gate spans approx. 70 x 70 mm.
• Reverse gear is unlocked via cable pull from the gear lever. Accidental engagement of reverse gear is impossible.
• Low weight with high rigidity: The milled and turned components are machined from 7075 aluminum; the subframe structures are made from laser-cut 3 mm AlMg3 aluminum sheet. The parts are joined by TIG welding, brushed to a clean finish, and anodized black.
• Smooth gear changes under load and during cornering.
• Integrated center detent spring provides perfect gate feedback during upshifts and downshifts.
• Left/right stops and reverse stop are independently adjustable.

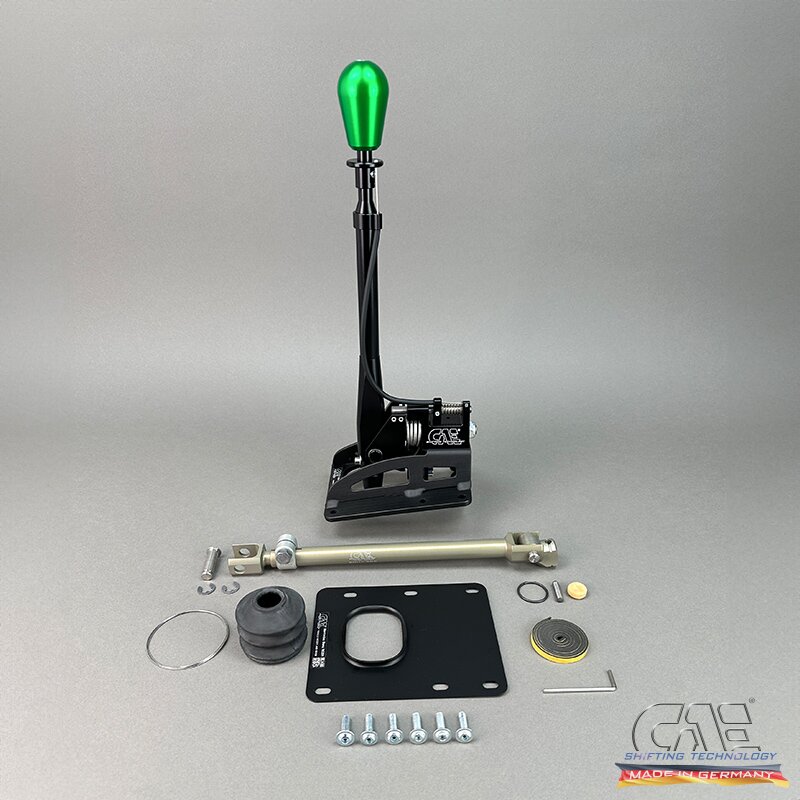

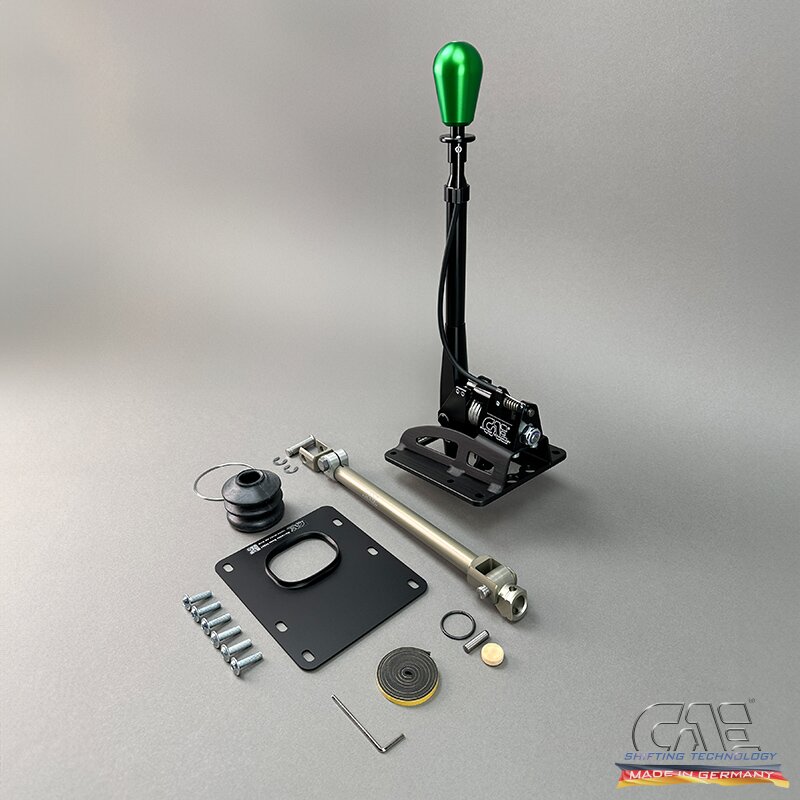

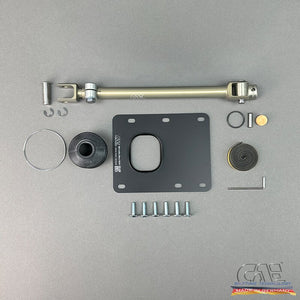

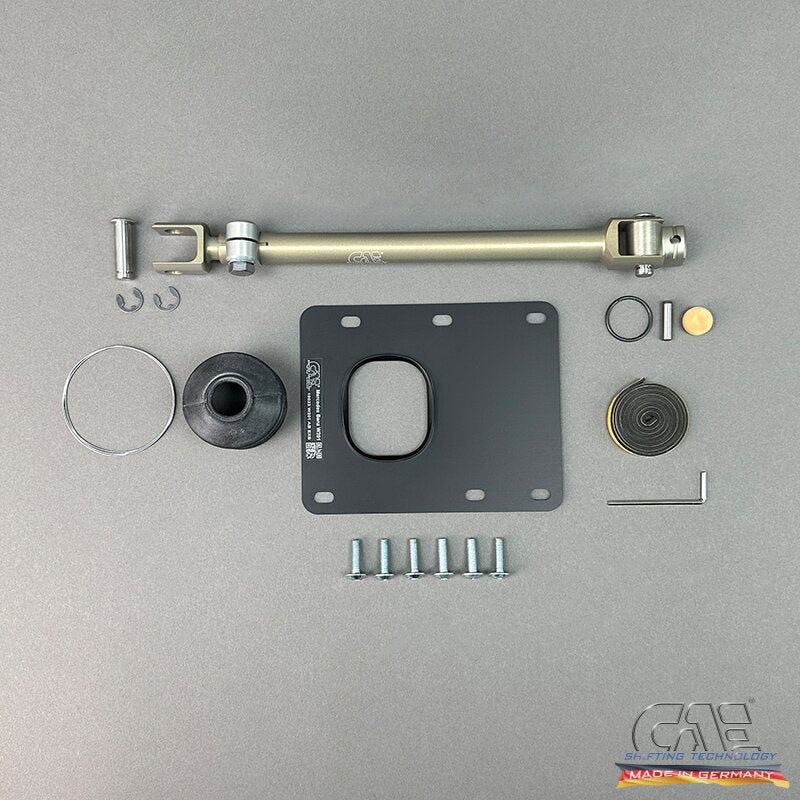

• Delivery includes the CAE XL shift rod, all small parts and fasteners.
• The shifter is designed for vehicles without interior trim / without a center console.

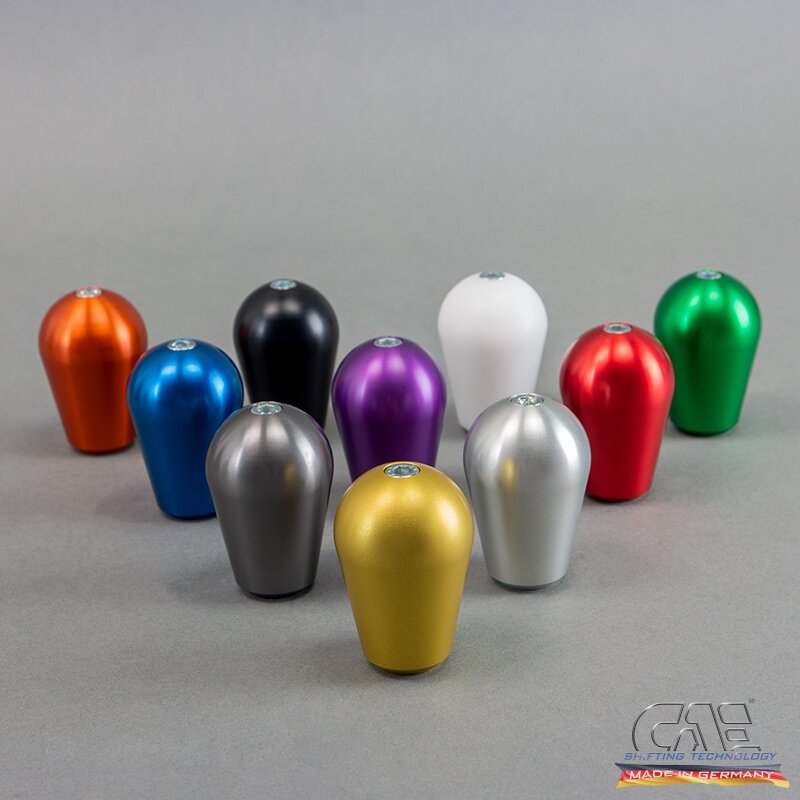

• Shift knob available in multiple configurations; and optionally covered in gray Alcantara with a colored X-stitch

The opening in the center tunnel must be enlarged for installation.
