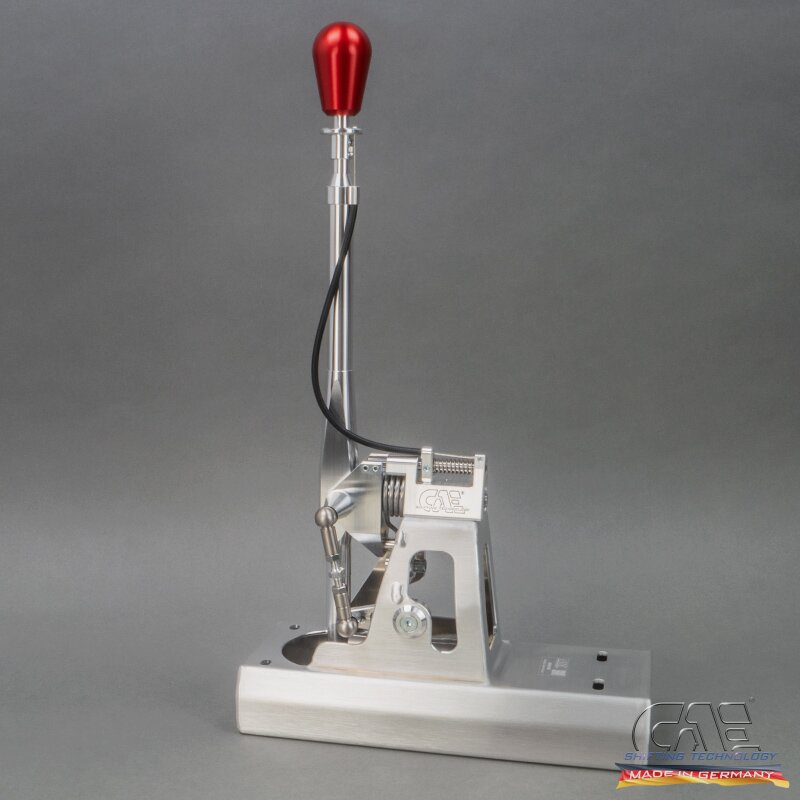

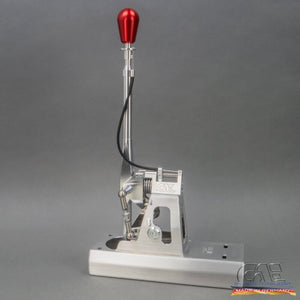

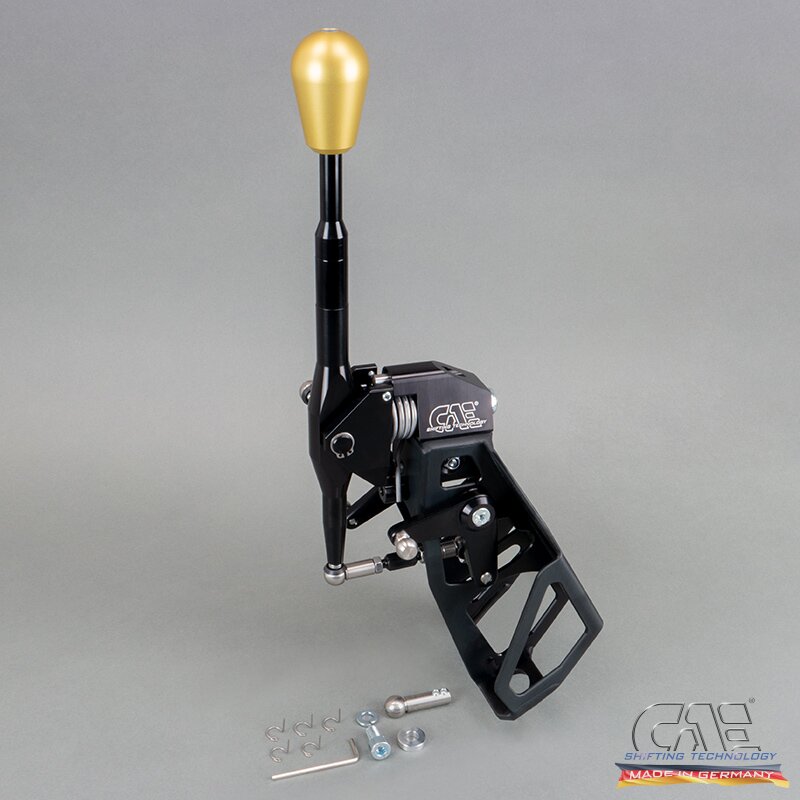

CAE Shifter MINI R5X

CAE Ultra Shifter - optimized for motorsport, with the following features:

• Shifter for the new MINI with 5- and 6-speed gearbox for use with the original shift cables (facelift and later).
• Compatible with all vehicles R53 ab 01/2004 (Facelift) and R56
• For R53 models up to 12/2003 (pre-facelift), the more robust shift cables from the R53 facelift are required (BMW part no. 2511 7 547 370 & 371).
• For 5-speed Midland gearbox is a spezieller Seilsatz required ( Art Nr 10234 EUR 399,-) this is made to order , please inquire if needed.
• Short and ultra-precise shift throws, H-pattern.
• The clutch system remains stock.

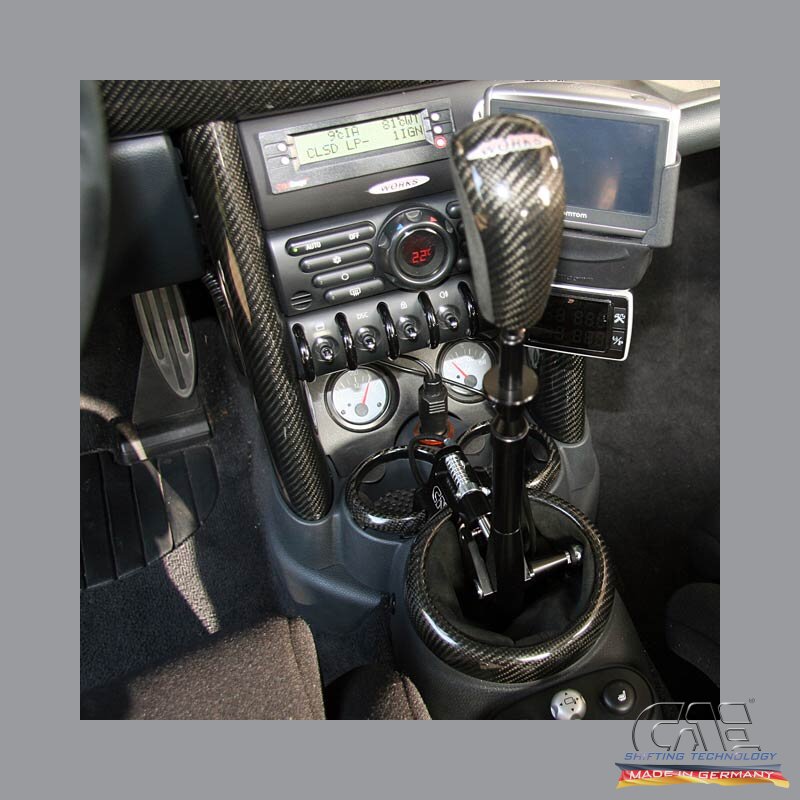

• Optimal ergonomics with a motorsport focus: Perfect gear lever placement close to the steering wheel. The H-pattern gate spans approx. 65 x 65 mm.
• Reverse gear is unlocked via cable pull from the gear lever. Accidental engagement of reverse gear is impossible.

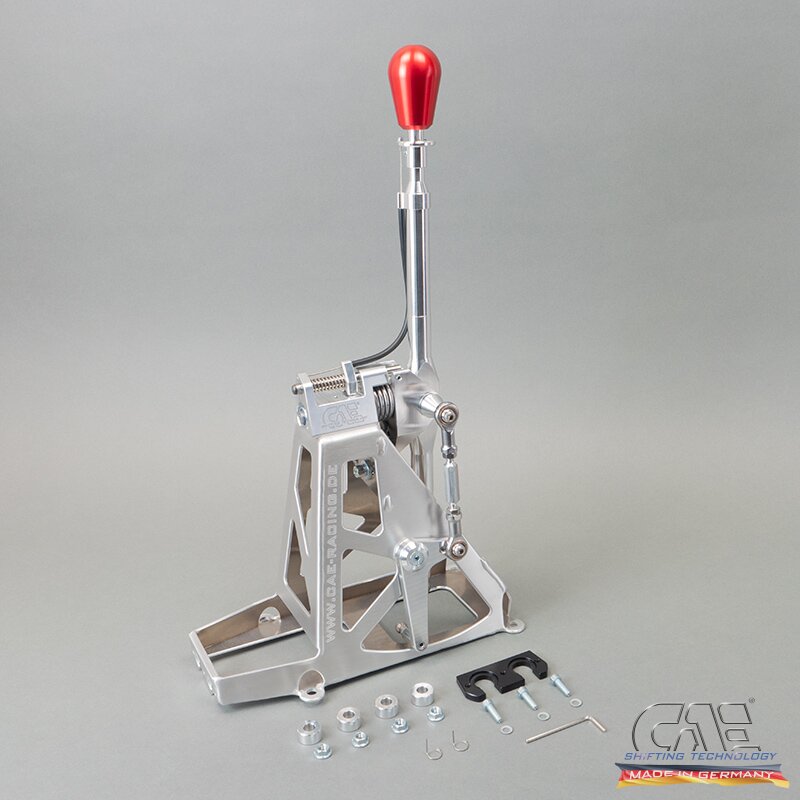

• Low weight with high rigidity: The milled and turned components are machined from 7075 aluminum; the subframe structures are made from laser-cut 3 mm AlMg3 aluminum sheet. The parts are joined by TIG welding and anodized black.
• Smooth gear changes under load and during cornering.
• Integrated center detent spring provides perfect gate feedback during upshifts and downshifts.
• Left/right stops and reverse stop are independently adjustable.

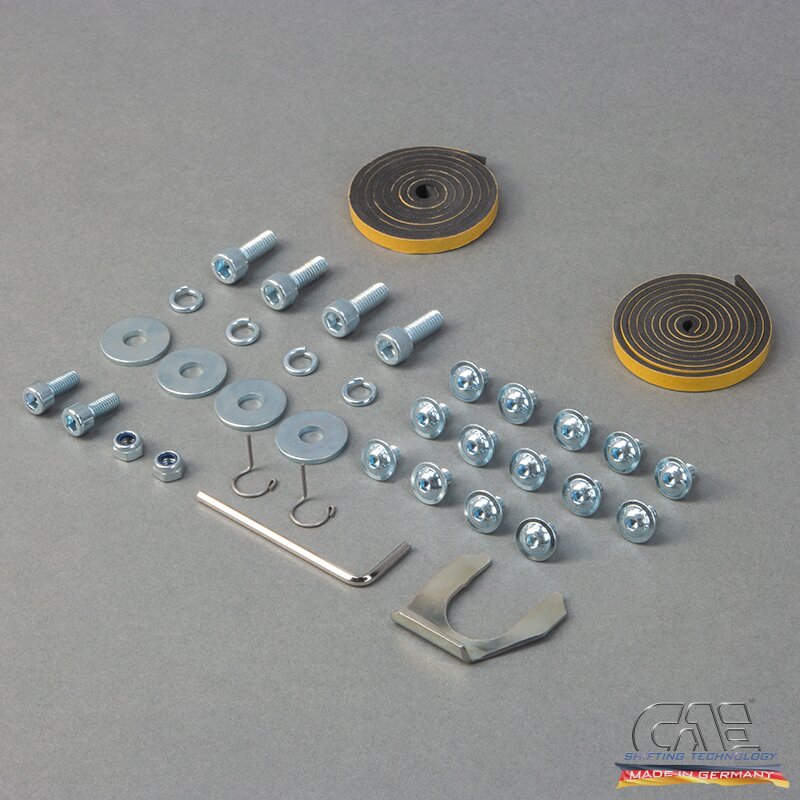

• Easy installation with a complete conversion kit; delivery includes all small parts, fasteners, and a detailed installation manual.

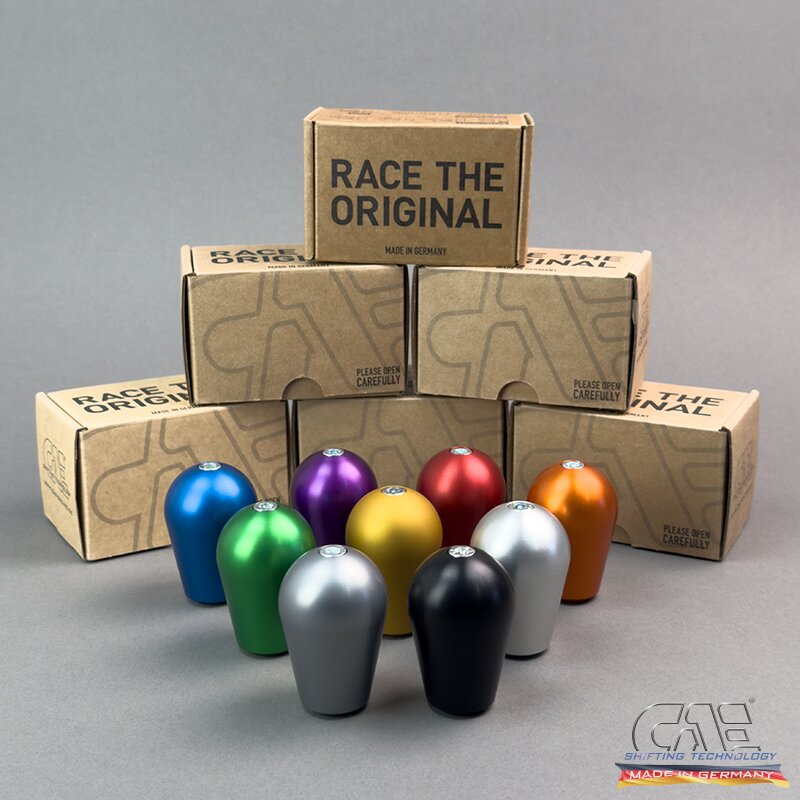

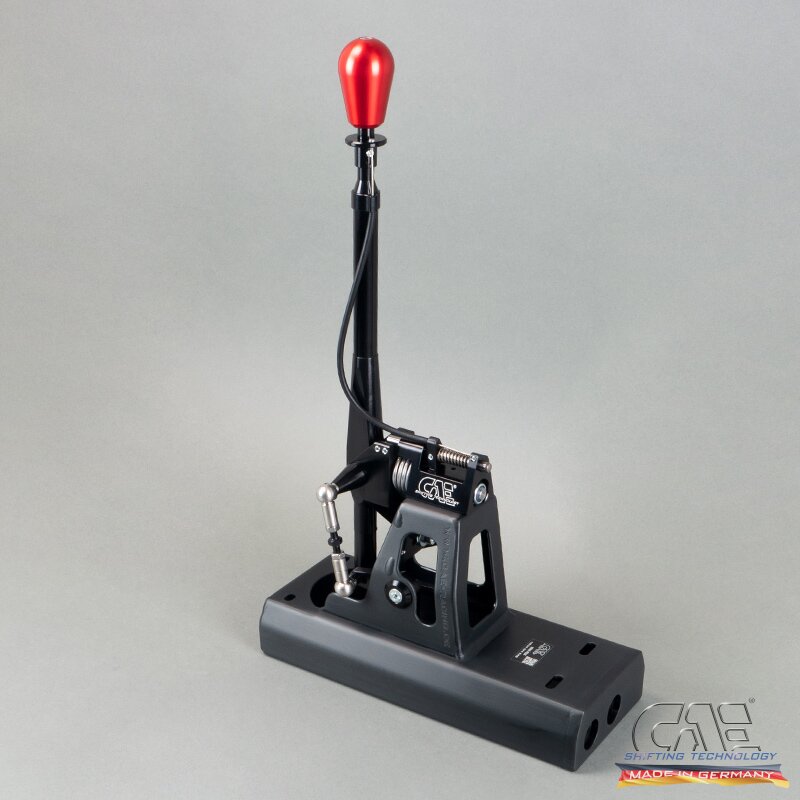

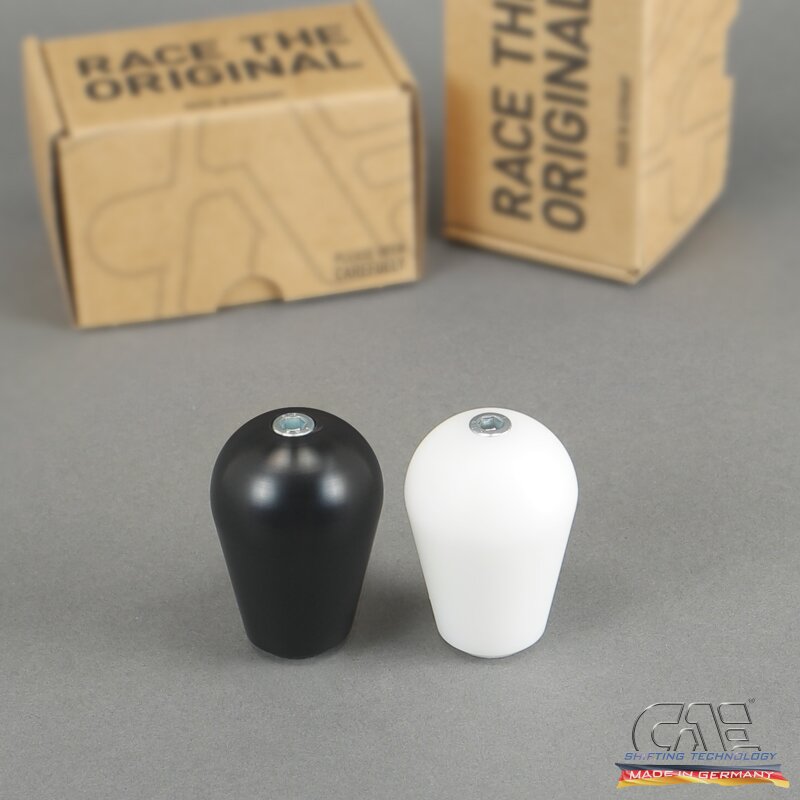

• Shifter surface finish and shift knob available in multiple configurations; and optionally covered in gray Alcantara with a colored X-stitch.

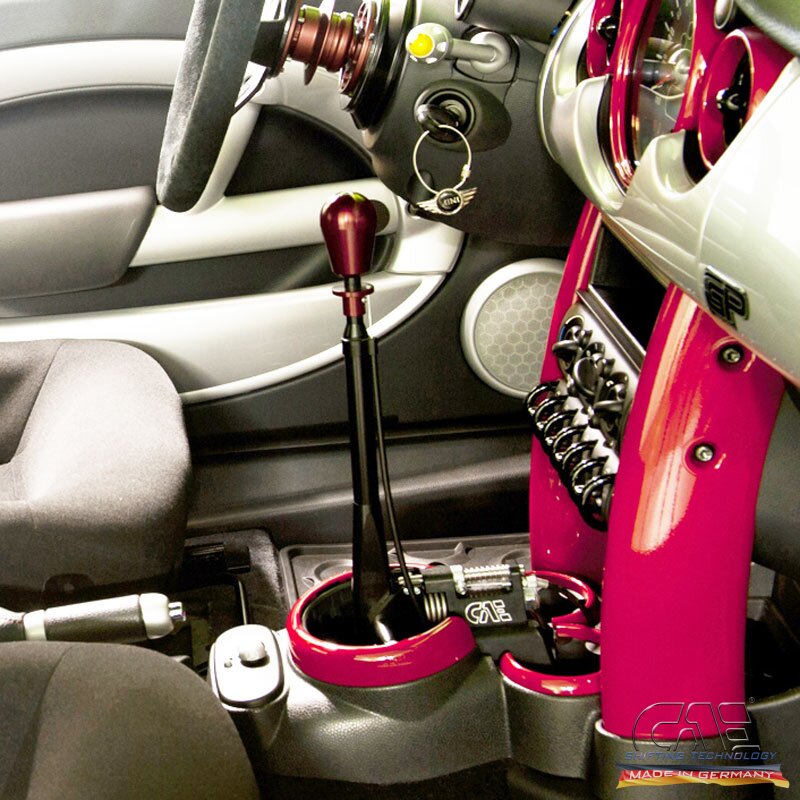

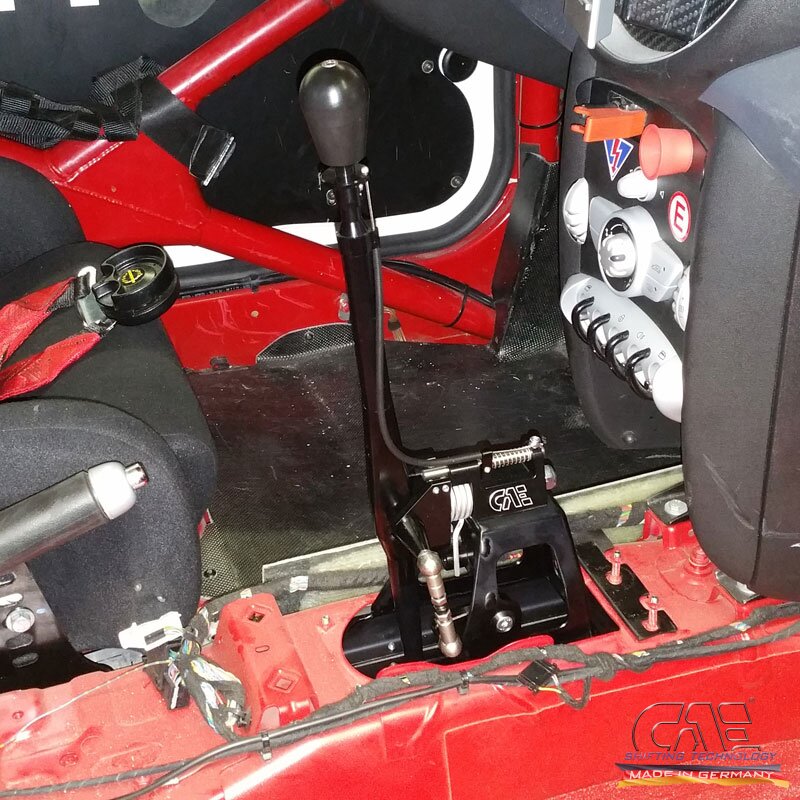

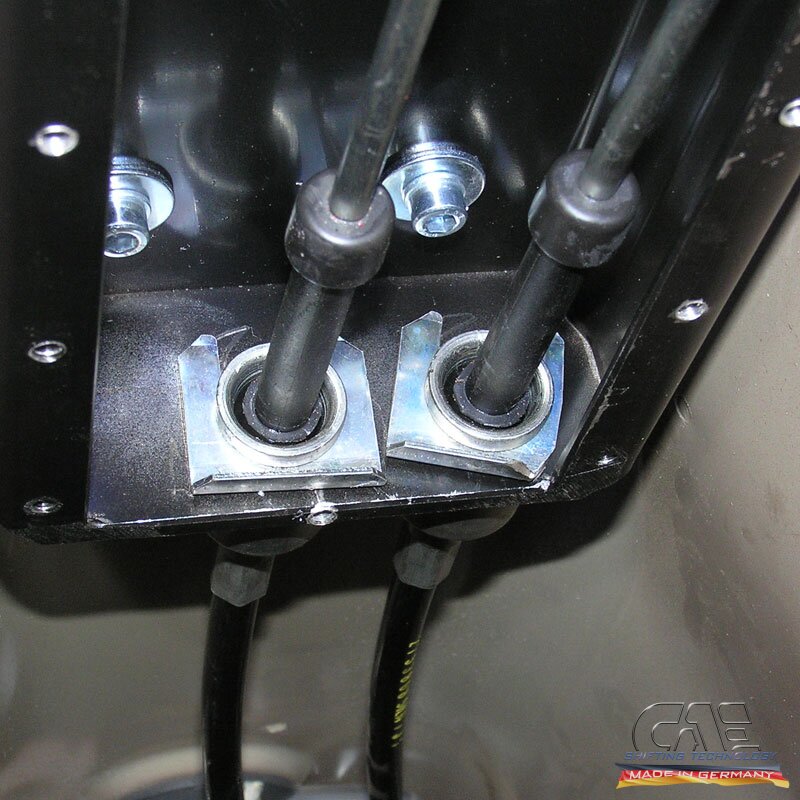

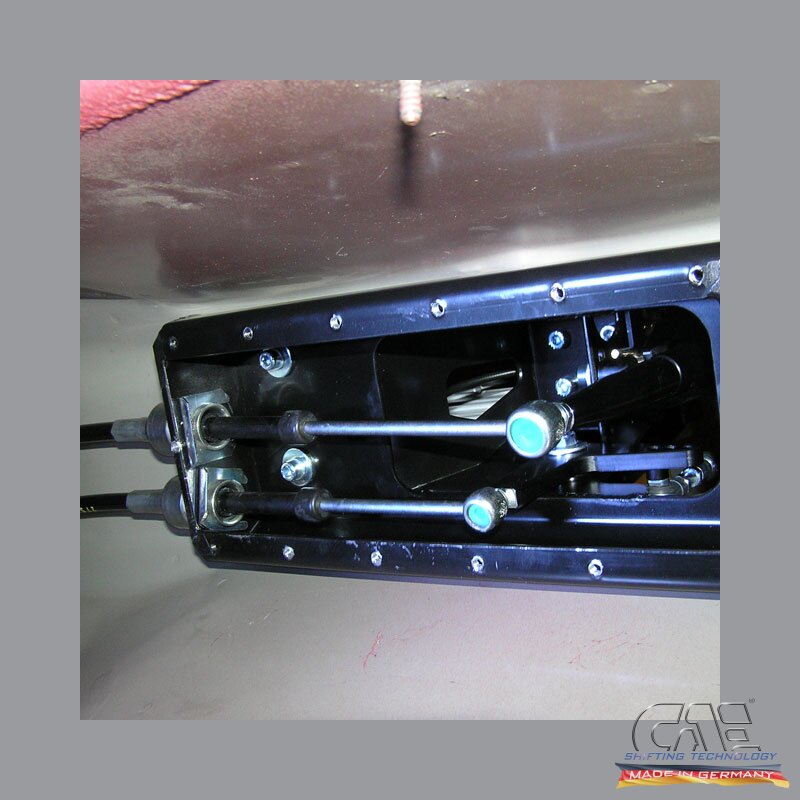

For installation, the exhaust system and heat shields must be removed and refitted. No further modifications to the vehicle are required. The original center console can only be used with significant modification.ationen beibehalten be, z.B. must the Schalter in the center console versetzt be.

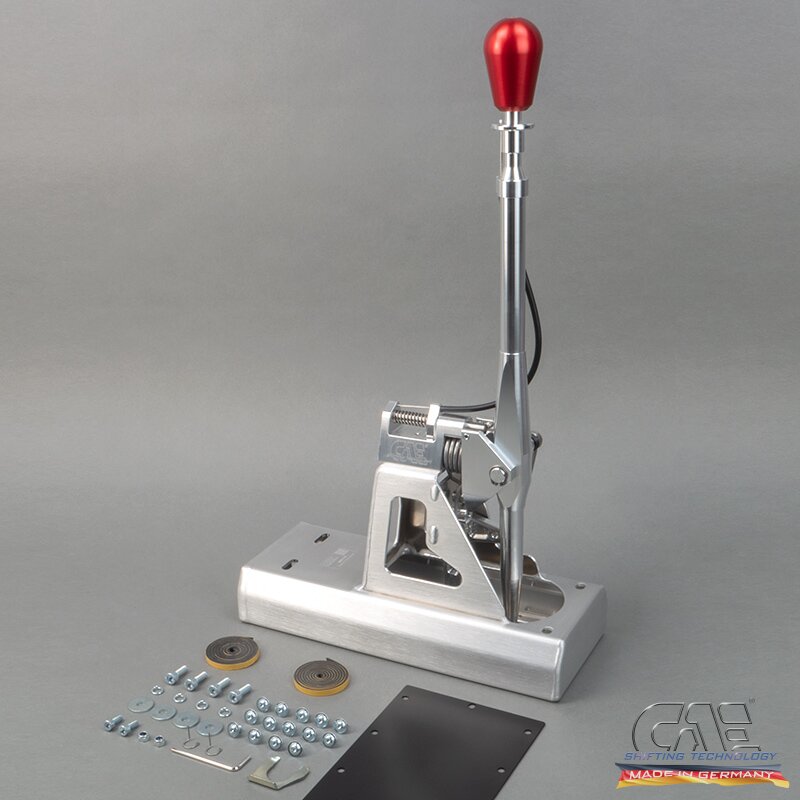

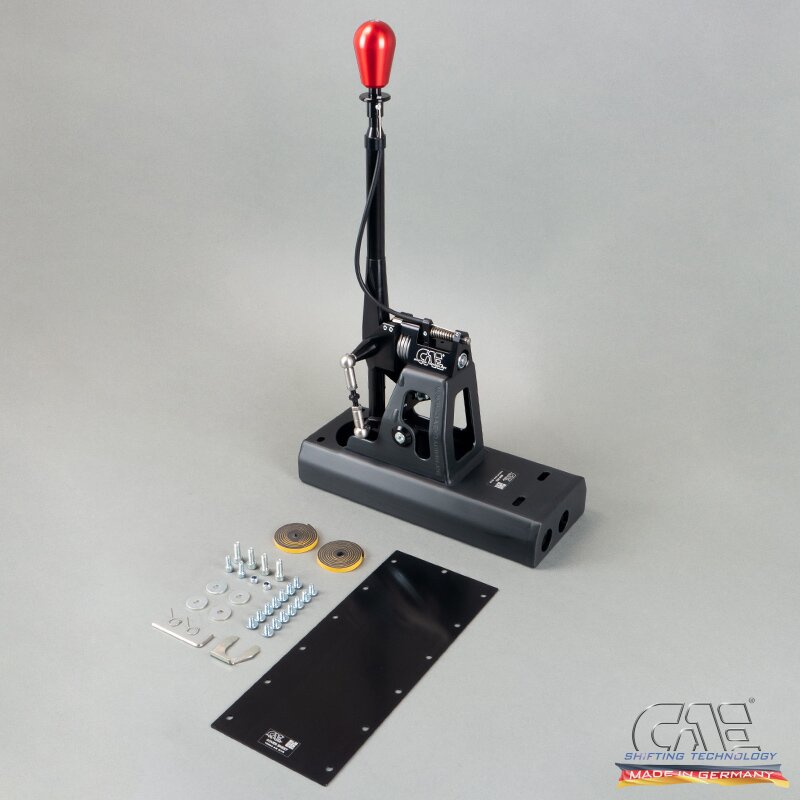

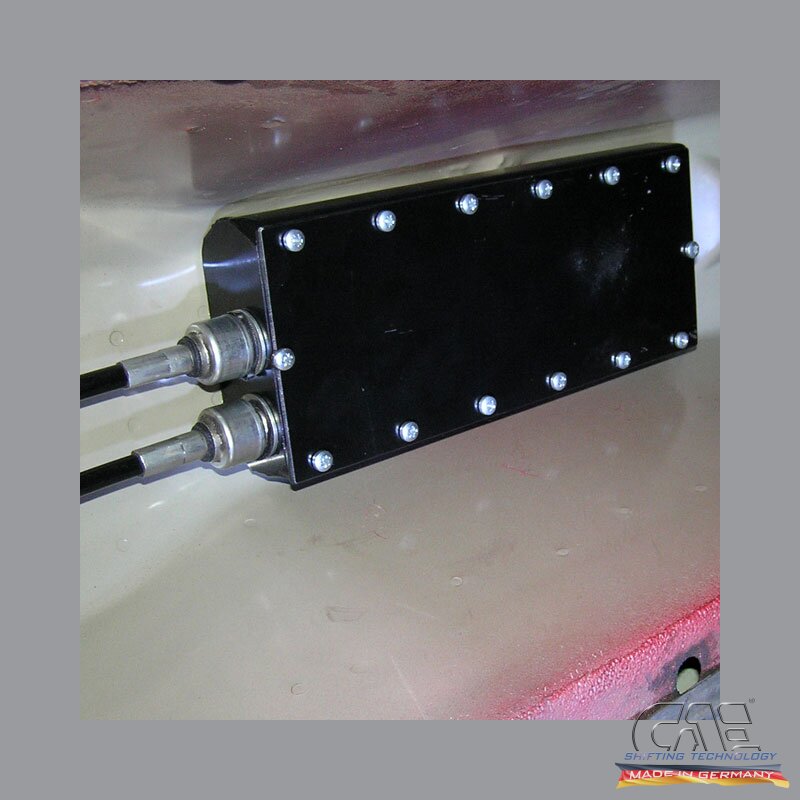

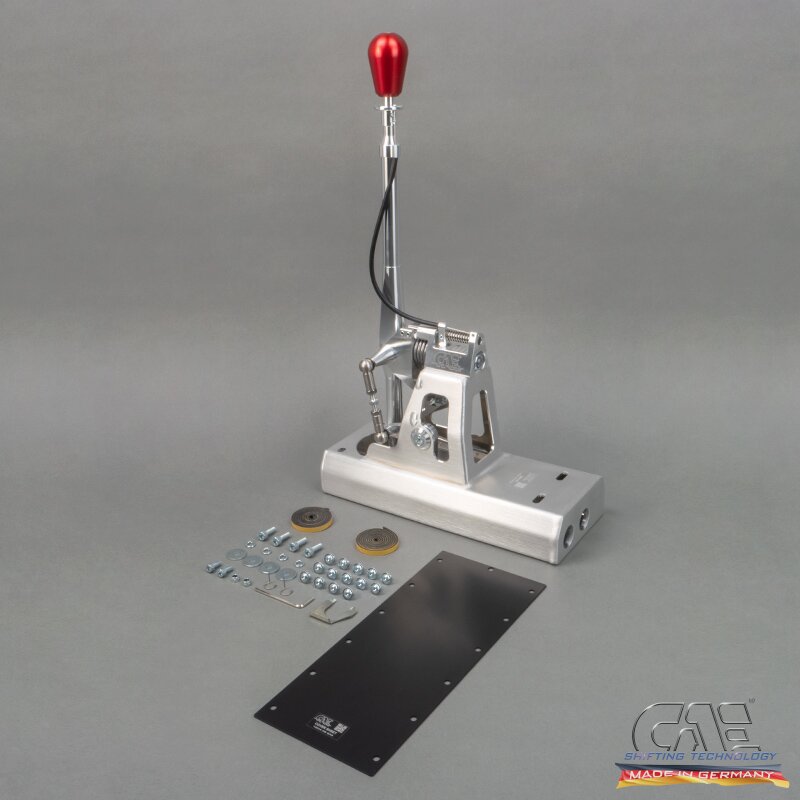

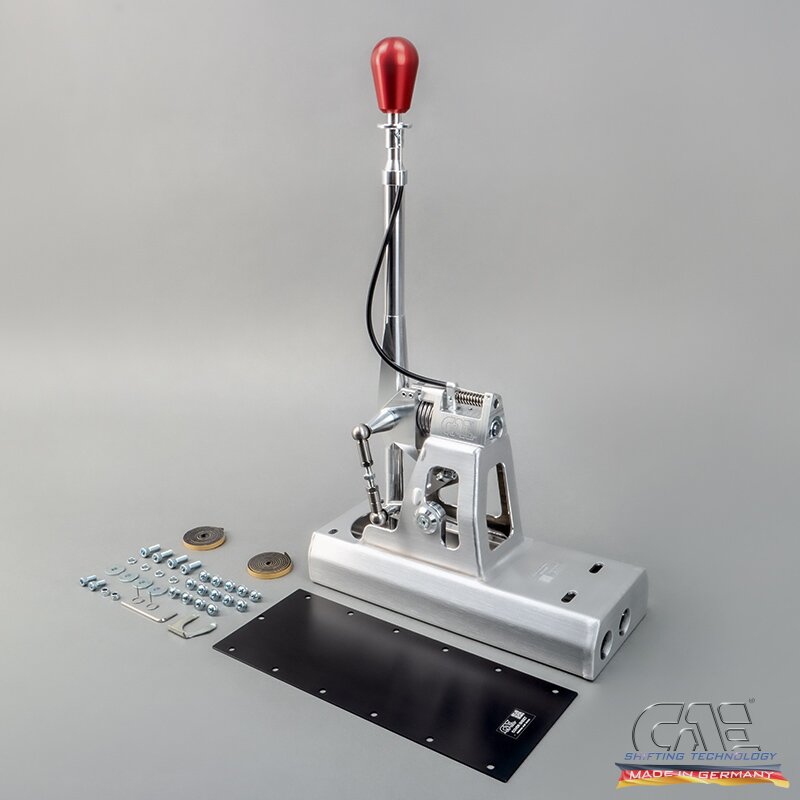

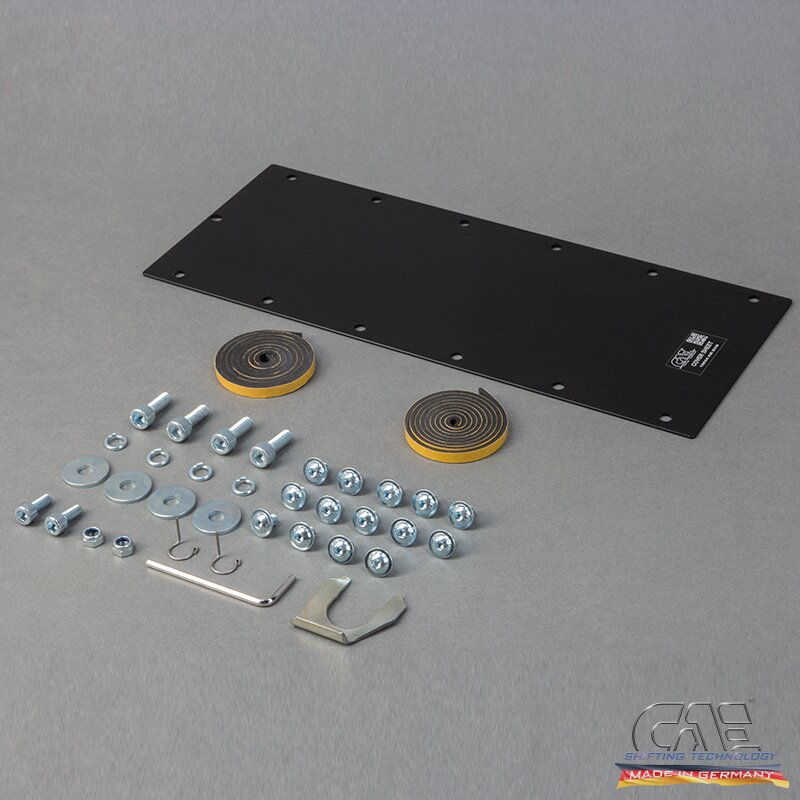

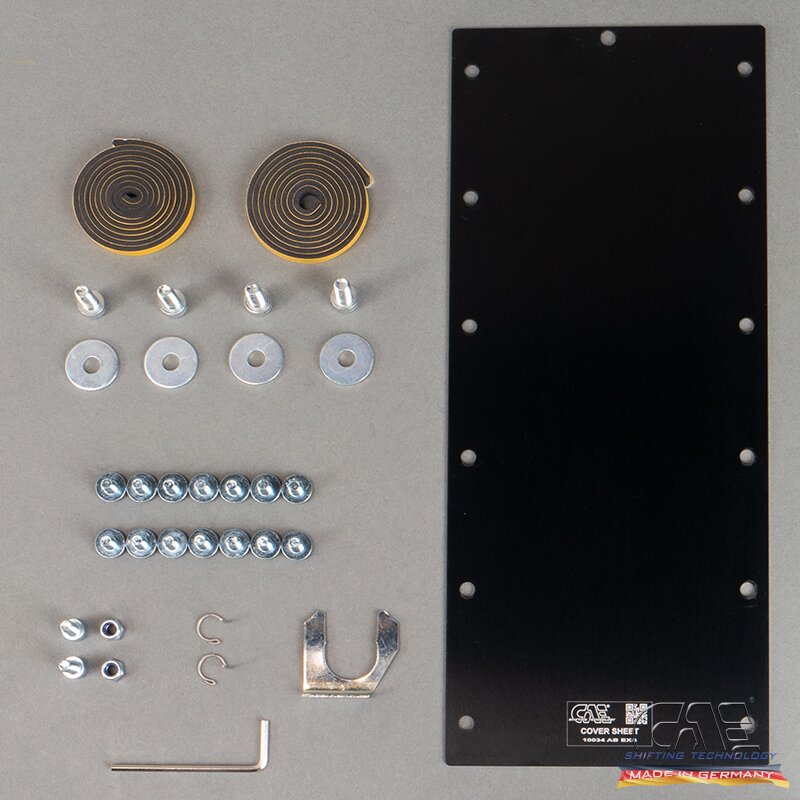

Scope of delivery: Shifter fully assembled (optional with shift cables), unteres cover plate for Shifter, all screws,

The installation manual is available for download under the "PDF" tab on this page

!!! NEW !!! ab 04/19
From now on, for almost all CAE Ultra Shifter a PARTS CERTIFICATE available.

For your personal certificate, please contact us.
