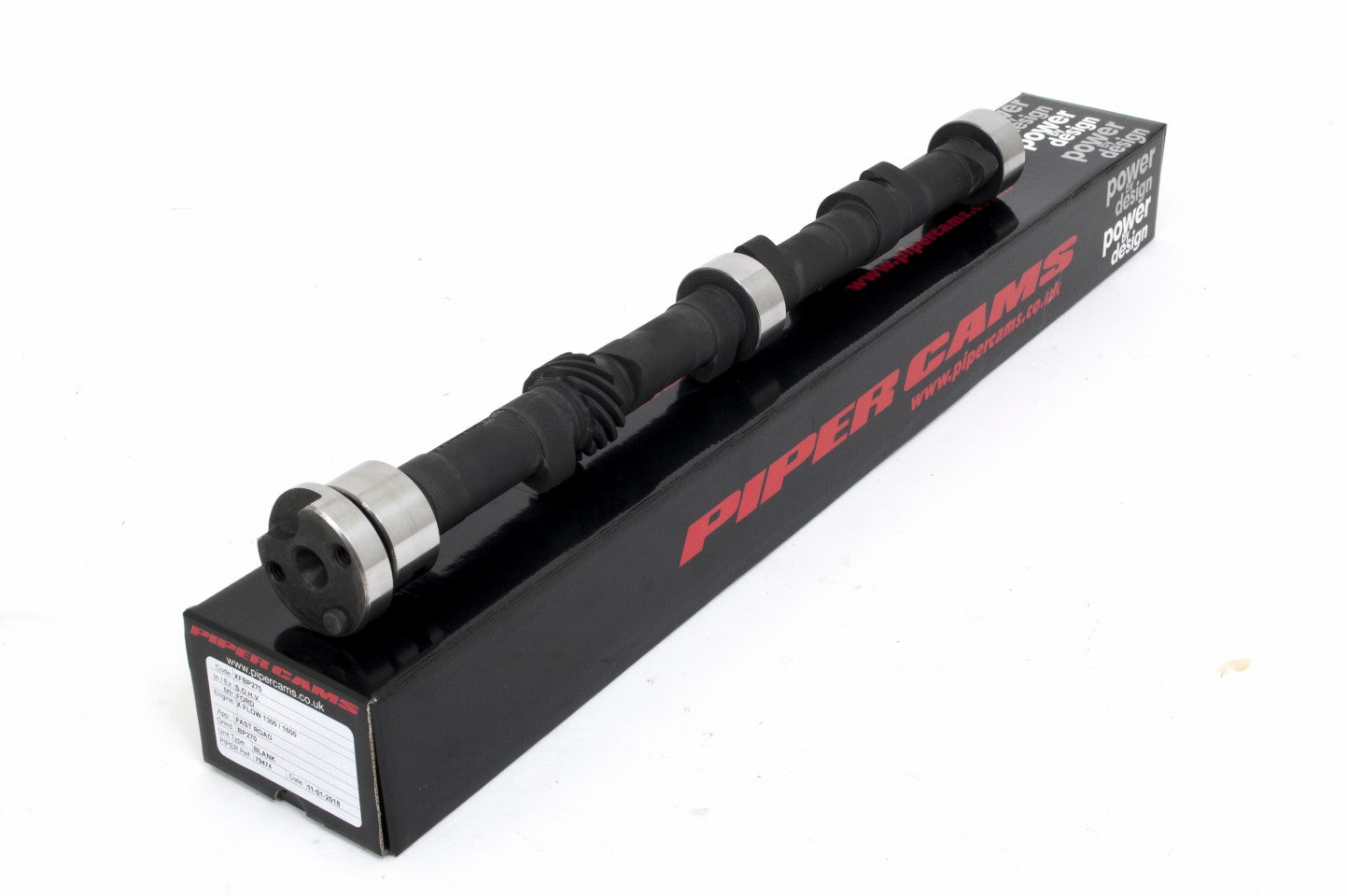

Piper Cams Camshaft - Race (Ford)

SKU: SKU: XF391B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: 391.

Application: 1300 Stockrod.

Unit Type: Blank.

This is the hottest profile that can be installed without machining.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 3 kg
Application Race
Power Band 3000-7000
Duration Inlet 296°
Duration Exhaust 296°
Valve Inlet Lift .440" 11.18mm
Valve Exhaust Lift .440" 11.18mm
Timing Inlet 38 - 78
Timing Exhaust 78 - 38
Full Inlet Lift 110°
TDC Inlet Lift .104" 2.64mm
TDC Exhaust Lift .104" 2.64mm
Valve Inlet Clearance .018" .45mm
Valve Exhaust Clearance .018" .45mm

Vehicle Application

  • FORD Xflow / KENT Engine 1.3 / 1.6
