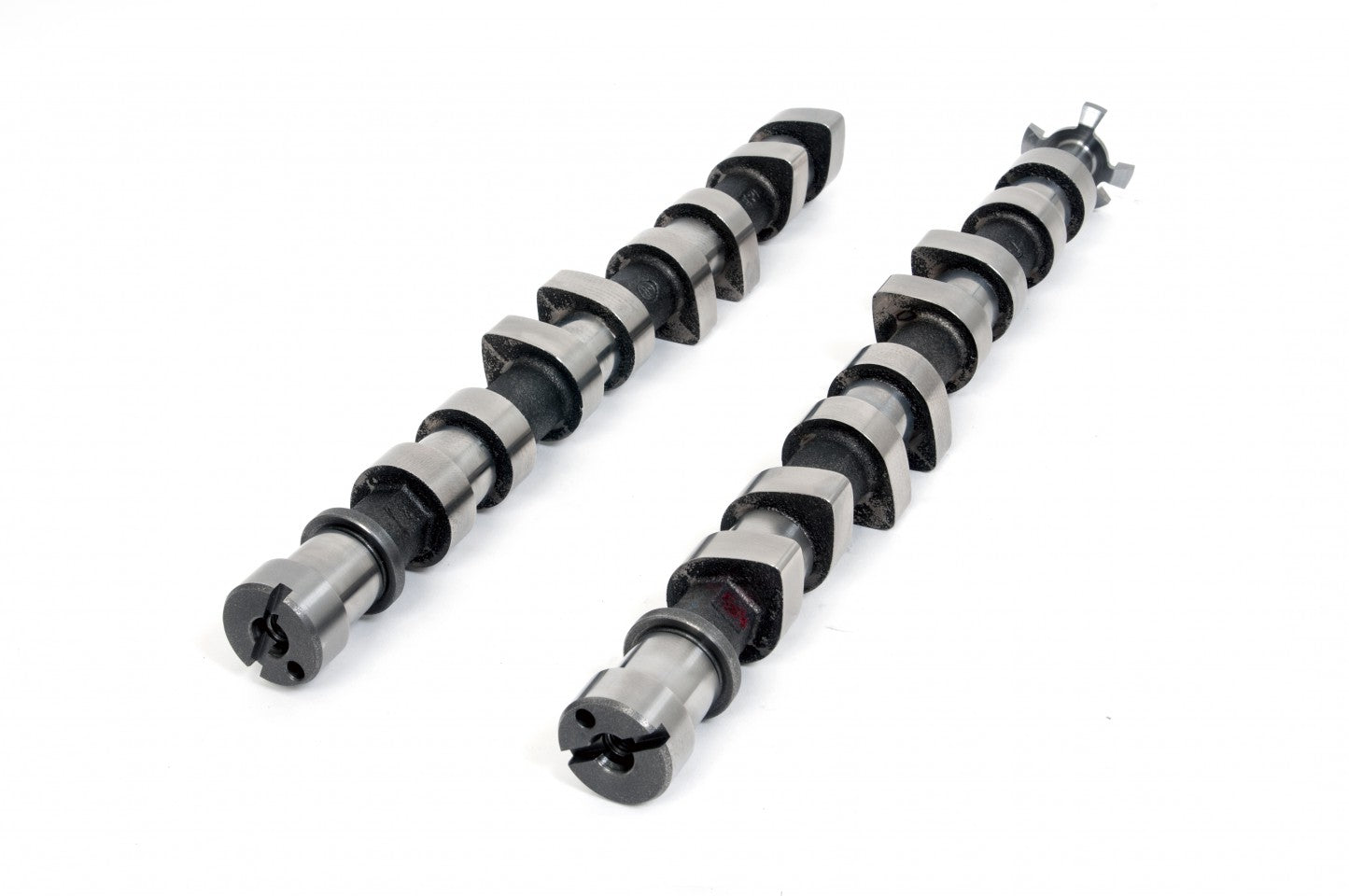

SKU: SKU: VXRCBP285B
Profile: BP285.
Application: Ultimate Road
Unit Type: Blank.
Engine Codes: Z16LEL, A16LEL, Z16LER, A16LER, A16LES & B16LER.
Required: must use uprated valve springs VSSCVXRK.
Note: Please check your trigger type. These are to suit the Corsa VXR 1.6 Turbo with 'D' type trigger, matching the above engine codes. Please use product images for assistance.
Note: For Corsa E VXR 1.6 Turbo B16LES engine type with 'E' type trigger, please see VXRC2BP285B
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 5 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 2000-7000 |
| Duration Inlet | 240° |
| Duration Exhaust | 240° |
| Valve Inlet Lift | .348" 8.85mm |
| Valve Exhaust Lift | .346" 8.80mm |
| Timing Inlet | Oct-50 |
| Timing Exhaust | 50 - 10 |
| Full Inlet Lift | 110° |
| Full Exhaust Lift | 110° |
| TDC Inlet Lift | .016" 0.41mm |
| TDC Exhaust Lift | .014" 0.36mm |
| Valve Inlet Clearance | .008" .20mm |
| Valve Exhaust Clearance | .010" .25mm |
