SKU: SKU: VXRBP285HB

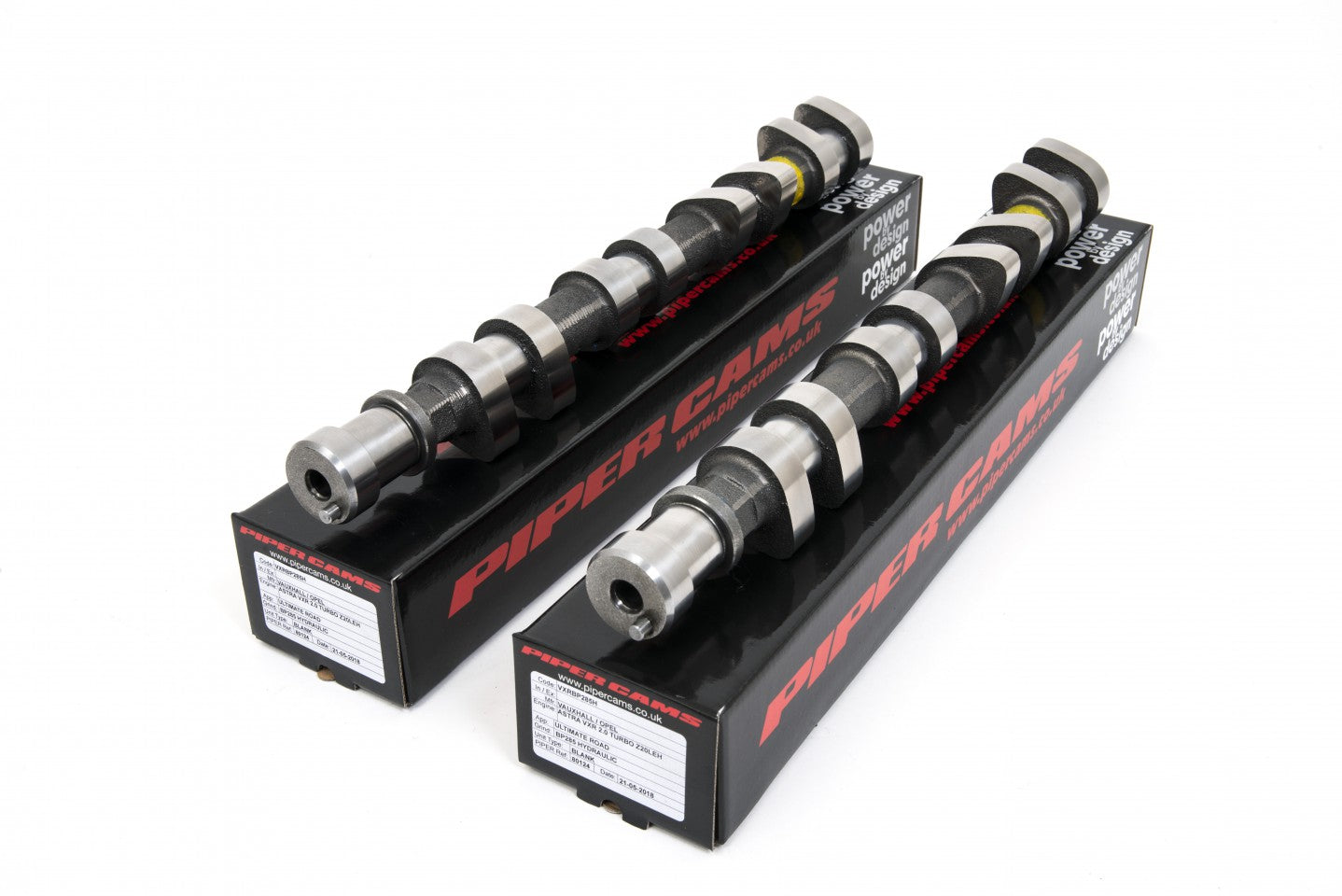

Profile: BP285.
Application: Ultimate Road.
Unit Type: Blank.
Note: This profile is only available on Blank castings. Milder profile is available on Re-Profiled Camshafts, please contact Piper Sales for details.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 6 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 2000-7200 |
| Power Increase | 25BHP |
| Duration Inlet | 262° |
| Duration Exhaust | 262° |
| Valve Inlet Lift | .425" 10.80mm |
| Valve Exhaust Lift | .425" 10.80mm |
| Timing Inlet | 21 - 61 |
| Timing Exhaust | 61 - 21 |
| Full Inlet Lift | 110° |
| Full Exhaust Lift | 110° |
| TDC Inlet Lift | .064" 1.63mm |
| TDC Exhaust Lift | .064" 1.63mm |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
