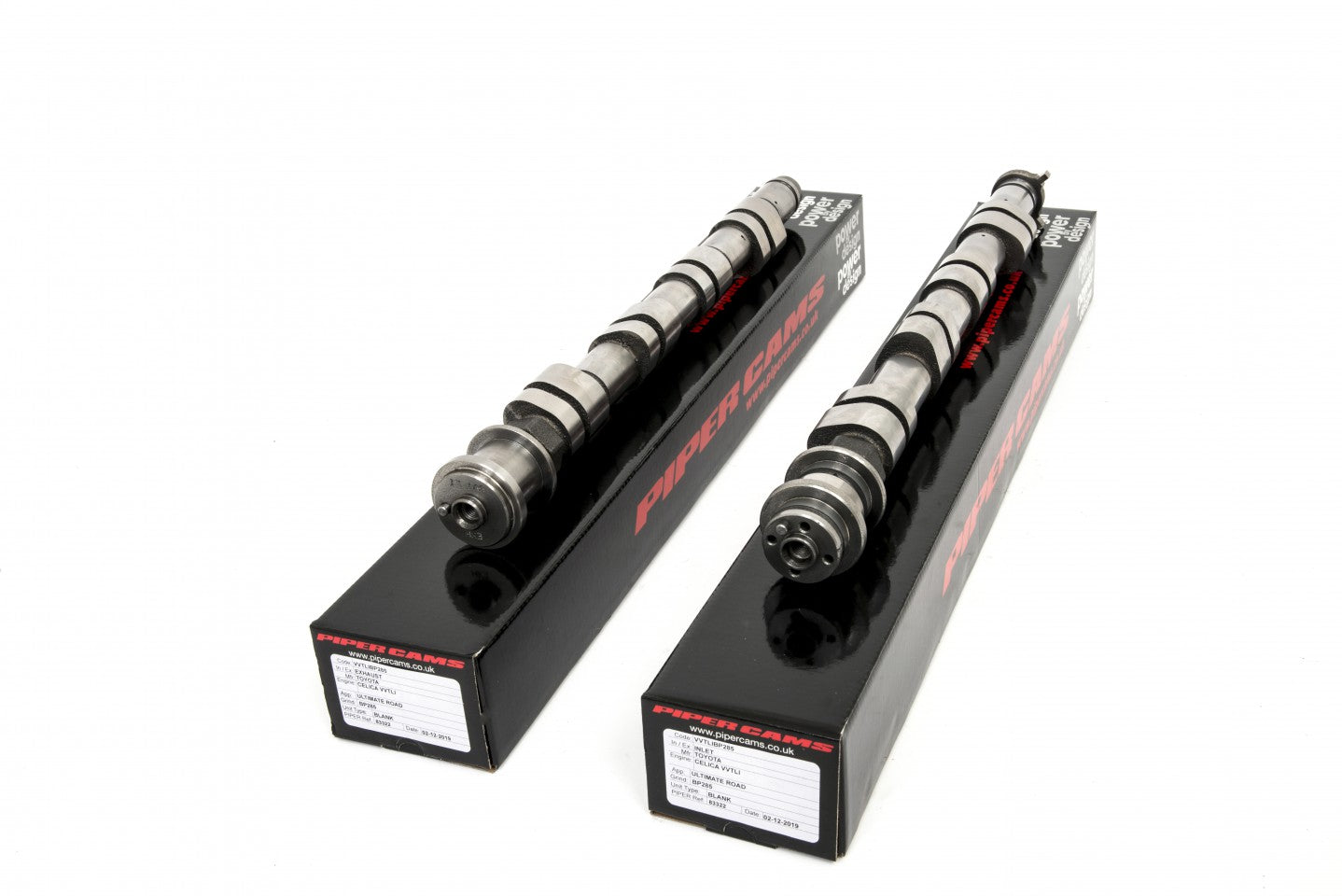

Piper Cams Camshaft Set - Race (Toyota)

SKU: SKU: VVTLIBP320B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP320.

Application: Race.

Unit Type: Blank.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 6 kg
Application Race
Power Band 2000-8500
Duration Inlet 304°
Duration Exhaust 296°
Valve Inlet Lift 0.500" / 12.70mm
Valve Exhaust Lift .460" / 11.68mm
Timing Inlet 53° - 71°
Timing Exhaust 67° - 49°
Full Inlet Lift 99°
Full Exhaust Lift 99°
TDC Inlet Lift .193" 4.91mm
TDC Exhaust Lift .159" 4.03mm
Valve Inlet Clearance .008" .20mm
Valve Exhaust Clearance .010" .25mm

Vehicle Application

  • Toyota Celica Vvtli 2ZZ
