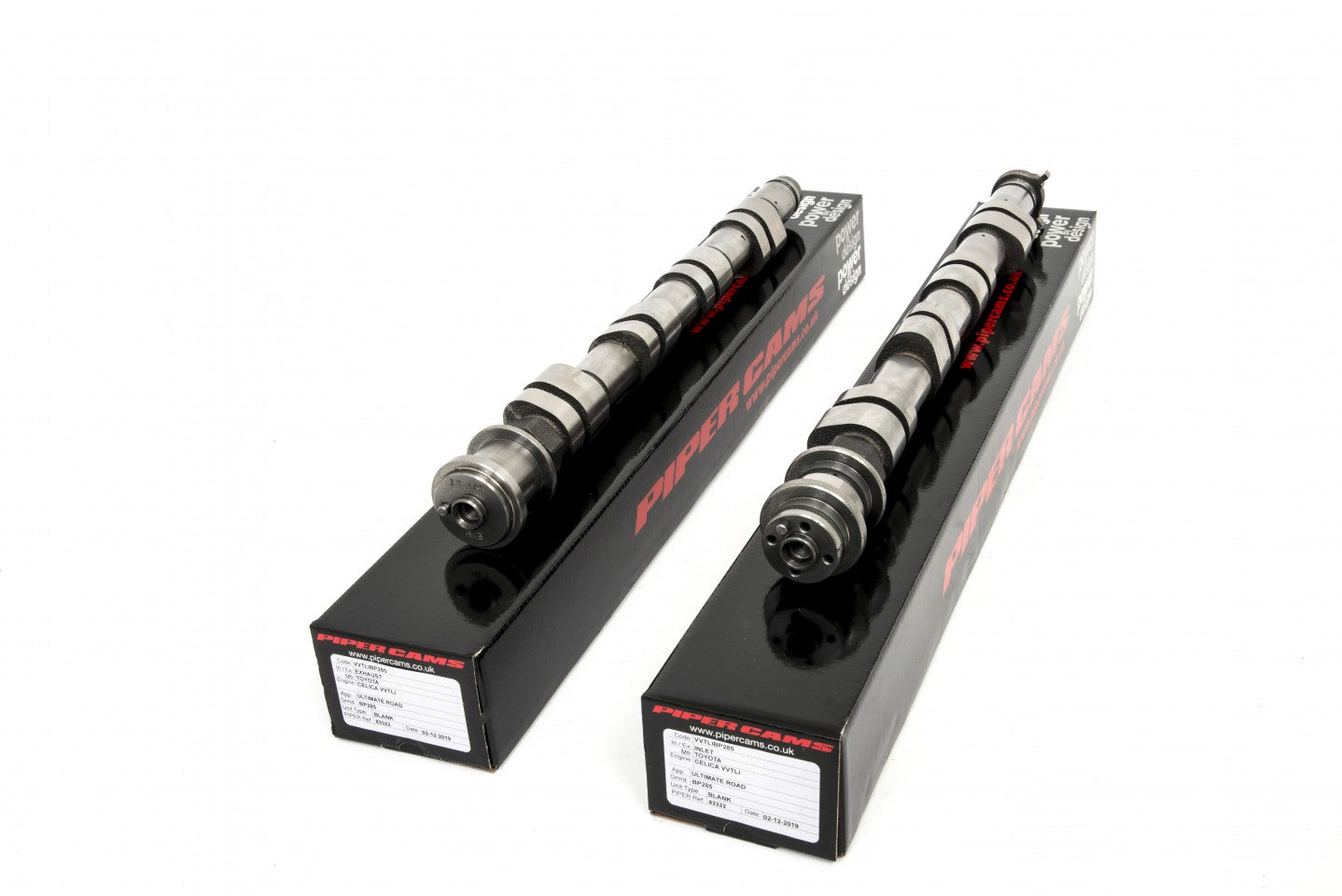

Piper Cams Camshaft Set - Ultimate Road (Toyota)

Piper Cams

Piper Cams Camshaft Set - Ultimate Road (Toyota)

SKU: SKU: VVTLIBP285B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP285.

Application: Ultimate Road.

Unit Type: Blank.

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.

Specifications

Weight 6 kg
Application Ultimate Road
Power Band 2000-8500
Duration Inlet 286°
Duration Exhaust 288°
Valve Inlet Lift .485" / 12.32mm
Valve Exhaust Lift .445" / 11.30mm
Timing Inlet 44° - 62°
Timing Exhaust 63° - 45°
Full Inlet Lift 99°
Full Exhaust Lift 99°
TDC Inlet Lift .147" 3.73mm
TDC Exhaust Lift .135" 3.43mm
Valve Inlet Clearance .008" .20mm
Valve Exhaust Clearance .010" .25mm

Vehicle Application

  • Toyota Celica Vvtli 2ZZ
