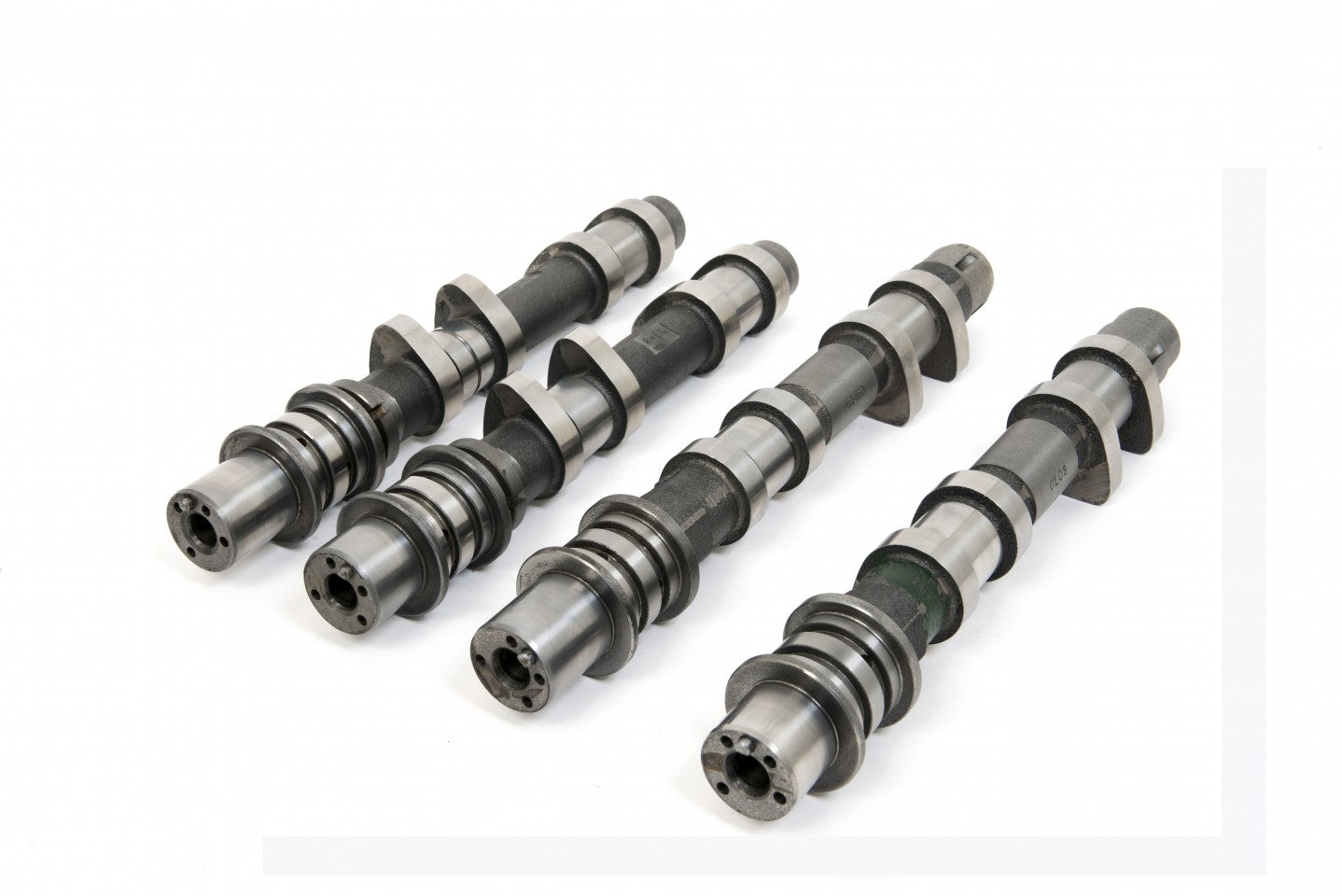

SKU: SKU: SUBGPA
Profile: GPA.
Application: Group A Rally.
Unit Type: Blank.
Designed for use in engines utilising Mechanical followers.
Note: For use with 34mm restrictor.
Note: Versions 4 – 10 available. To avoid delay in your order, please state which version type you require in the order notes at checkout.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 7 kg |
|---|---|
| Application | Group A |
| Power Band | 2700-6500 |
| Duration Inlet | 252° |
| Duration Exhaust | 252° |
| Valve Inlet Lift | .410" 10.41mm |
| Valve Exhaust Lift | .410" 10.41mm |
| Timing Inlet | 16 - 56 |
| Timing Exhaust | 56 - 16 |
| Full Inlet Lift | 110° |
| Full Exhaust Lift | 110° |
| TDC Inlet Lift | .060" 1.52mm |
| TDC Exhaust Lift | .060" 1.52mm |
| Valve Inlet Clearance | .008" .20mm |
| Valve Exhaust Clearance | .010" .25mm |
