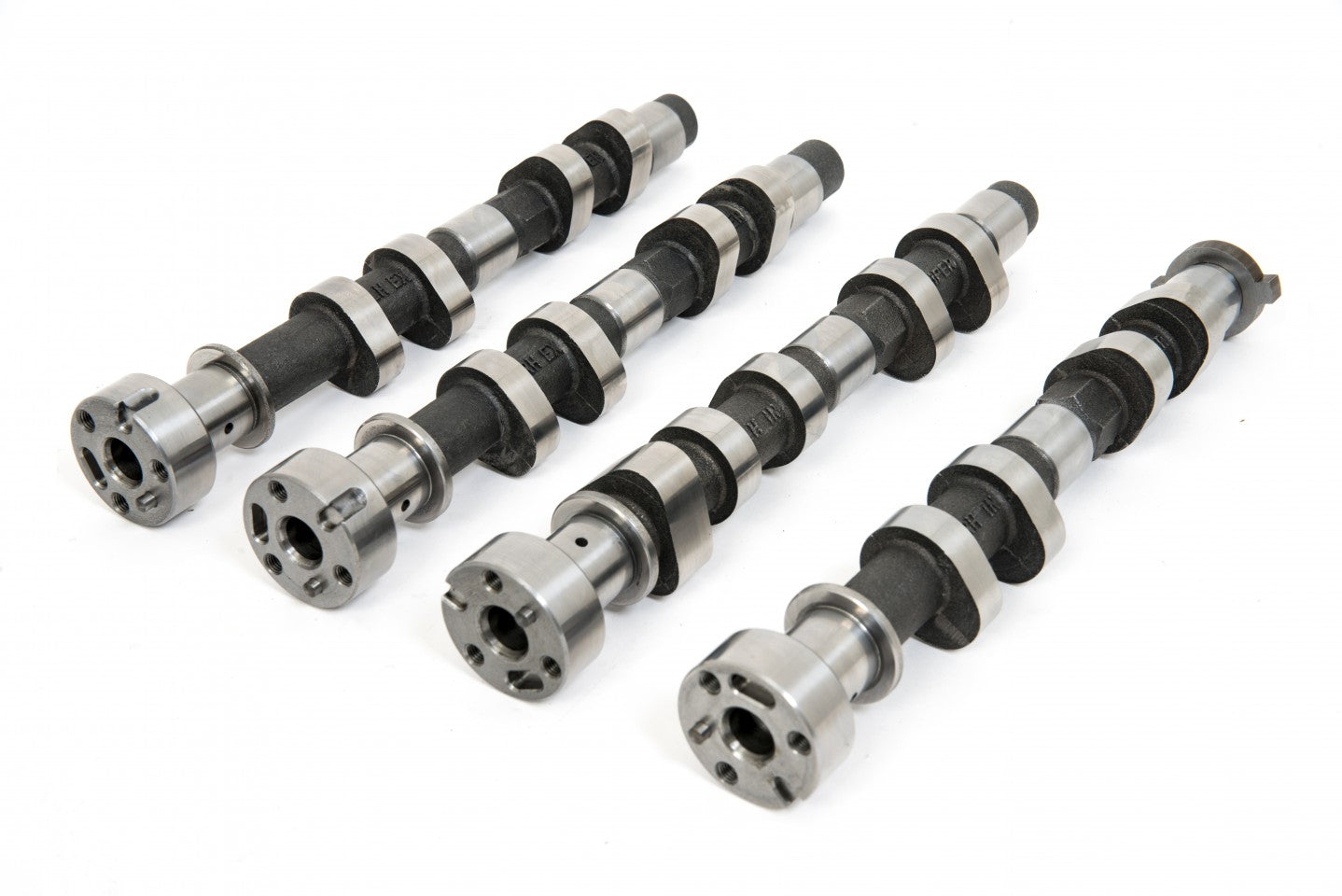

SKU: SKU: SUBFA20BP270
Profile: BP270.
Application: Fast Road.
Unit Type: Blank.
Note: These camshafts DO NOT FITthe FA20DIT engine! We can supply these, but are custom steel billet versions.
Also suits Toyota GT86.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 7 kg |
|---|---|
| Application | Fast Road |
| Duration Inlet | 262° |
| Duration Exhaust | 266° |
| Valve Inlet Lift | .447" 11.35mm |
| Valve Exhaust Lift | .445" 11.30mm |
| Timing Inlet | 21 - 61 |
| Timing Exhaust | 63 - 23 |
| Full Inlet Lift | 110° |
| Full Exhaust Lift | 110° |
| TDC Inlet Lift | .041" 1.04mm |
| TDC Exhaust Lift | .027" 0.69mm |
| Valve Inlet Clearance | .005" .13mm |
| Valve Exhaust Clearance | .007" .18mm |
