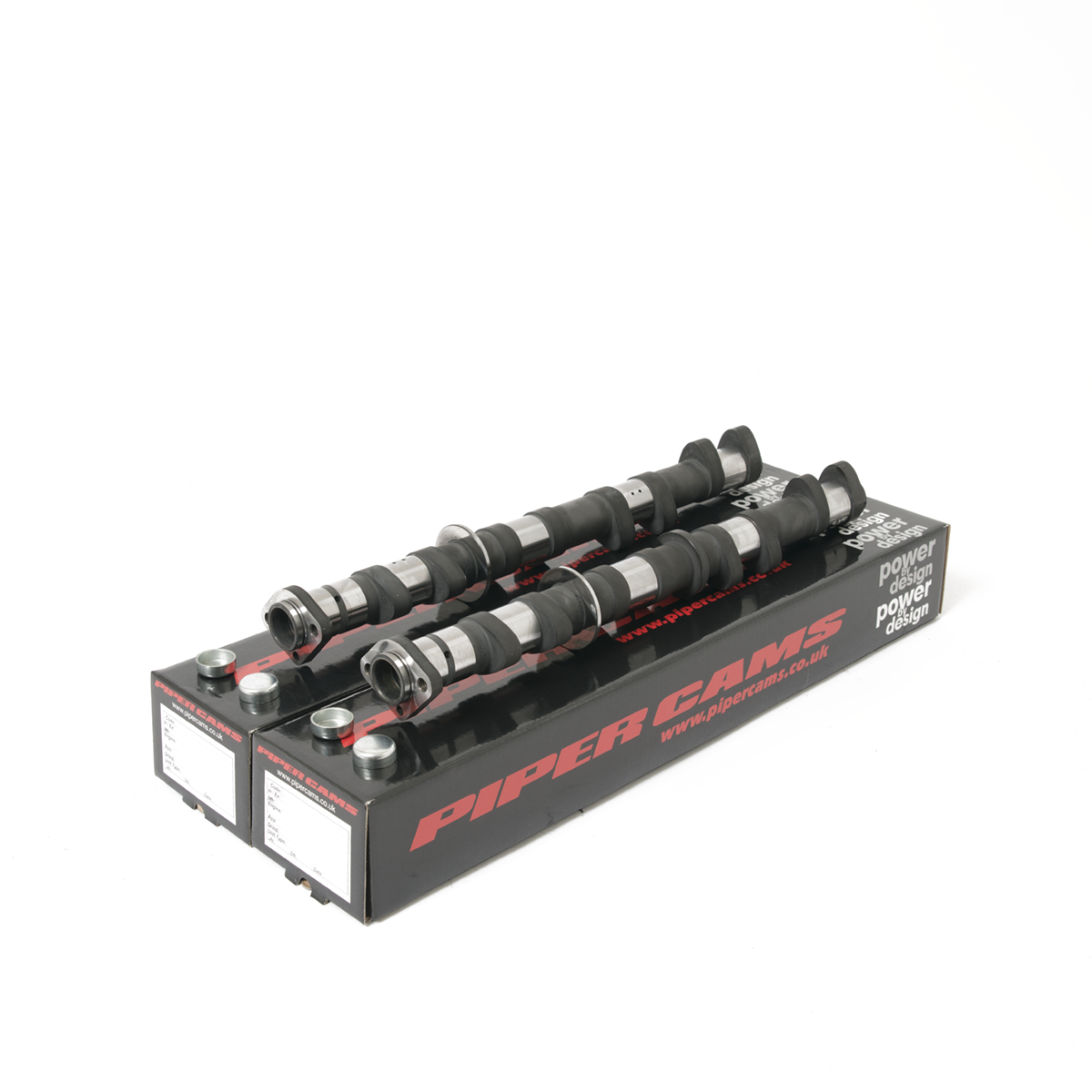

Piper Cams Yamaha YZF R1 Big Bang Race Camshafts

SKU: SKU: PY16

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Yamaha YZF R1 2009-

Profile: PY16.

Application: Race.

For use in the "Big Bang" engine.

Note: These are bespoke steel billet camshafts and are made to order, please enquire for current lead time.

Specifications

Weight 6 kg
Application Race
Duration Inlet 260 deg
Duration Exhaust 254 deg
Valve Inlet Lift .368"
Valve Exhaust Lift .331"
Timing Inlet 20-60
Timing Exhaust 57-17
Full Inlet Lift 110 deg
Full Exhaust Lift 110 deg
TDC Inlet Lift .101"
TDC Exhaust Lift .091"
Valve Inlet Clearance .006" / .15mm
Valve Exhaust Clearance .008" / .20mm

Vehicle Application

  • Yamaha YZF R1
