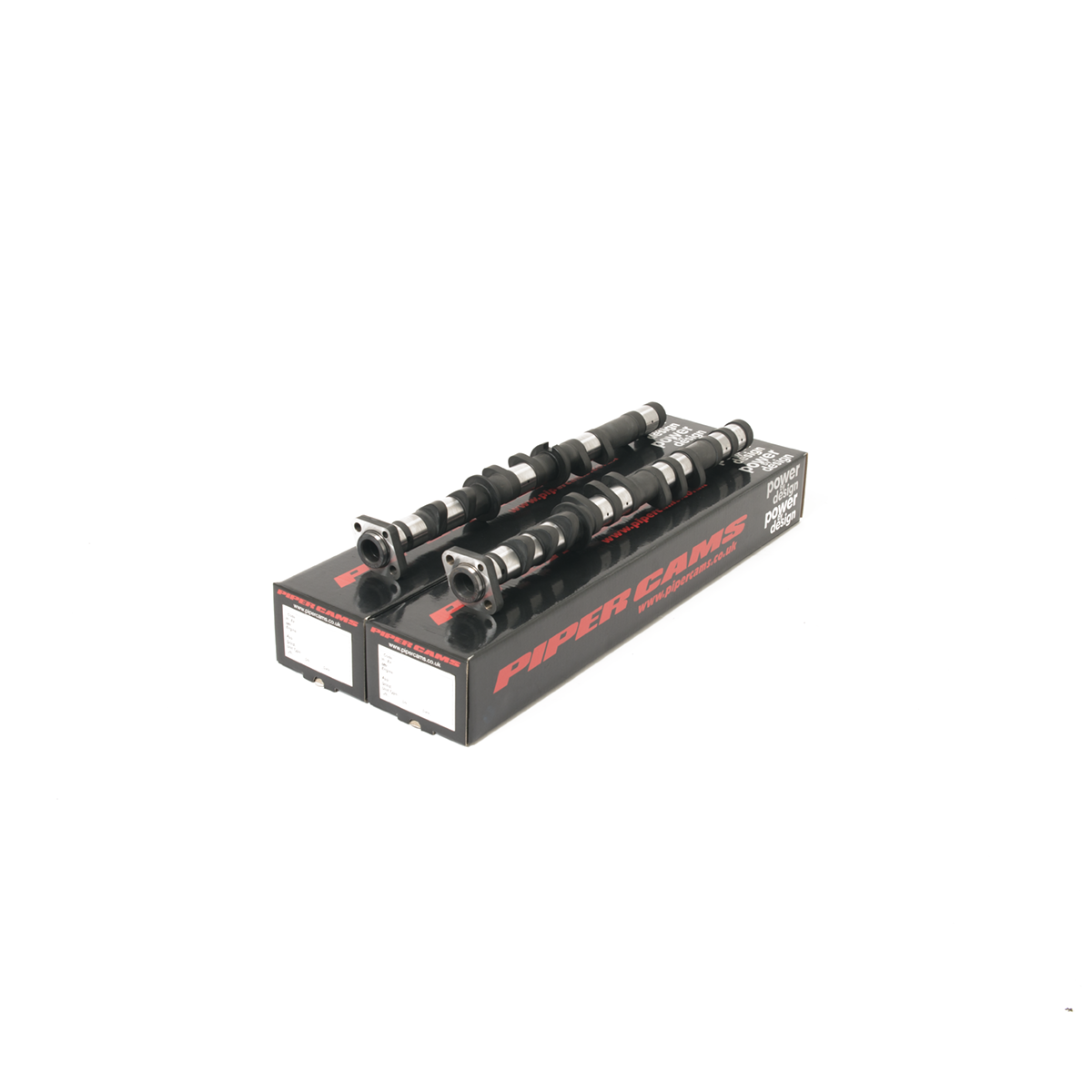

Piper Cams Camshaft - Race (Yamaha Motorcycles)

SKU: SKU: PY15

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Yamaha YZF R1 Injection 2004 - 2006.

Profile: PY15.

Application: Race Top End.

Note: These are Steel Billet Camshafts.

Specifications

Weight 6 kg
Application Race
Duration Inlet 251 deg
Duration Exhaust 251 deg
Valve Inlet Lift .345"
Valve Exhaust Lift .327"
Timing Inlet 21-51
Timing Exhaust 46-16
Full Inlet Lift 105 deg
Full Exhaust Lift 105 deg
TDC Inlet Lift .107"
TDC Exhaust Lift .107"
Valve Inlet Clearance 2.72mm
Valve Exhaust Clearance 2.72mm

Vehicle Application

  • Yamaha YZF R1
