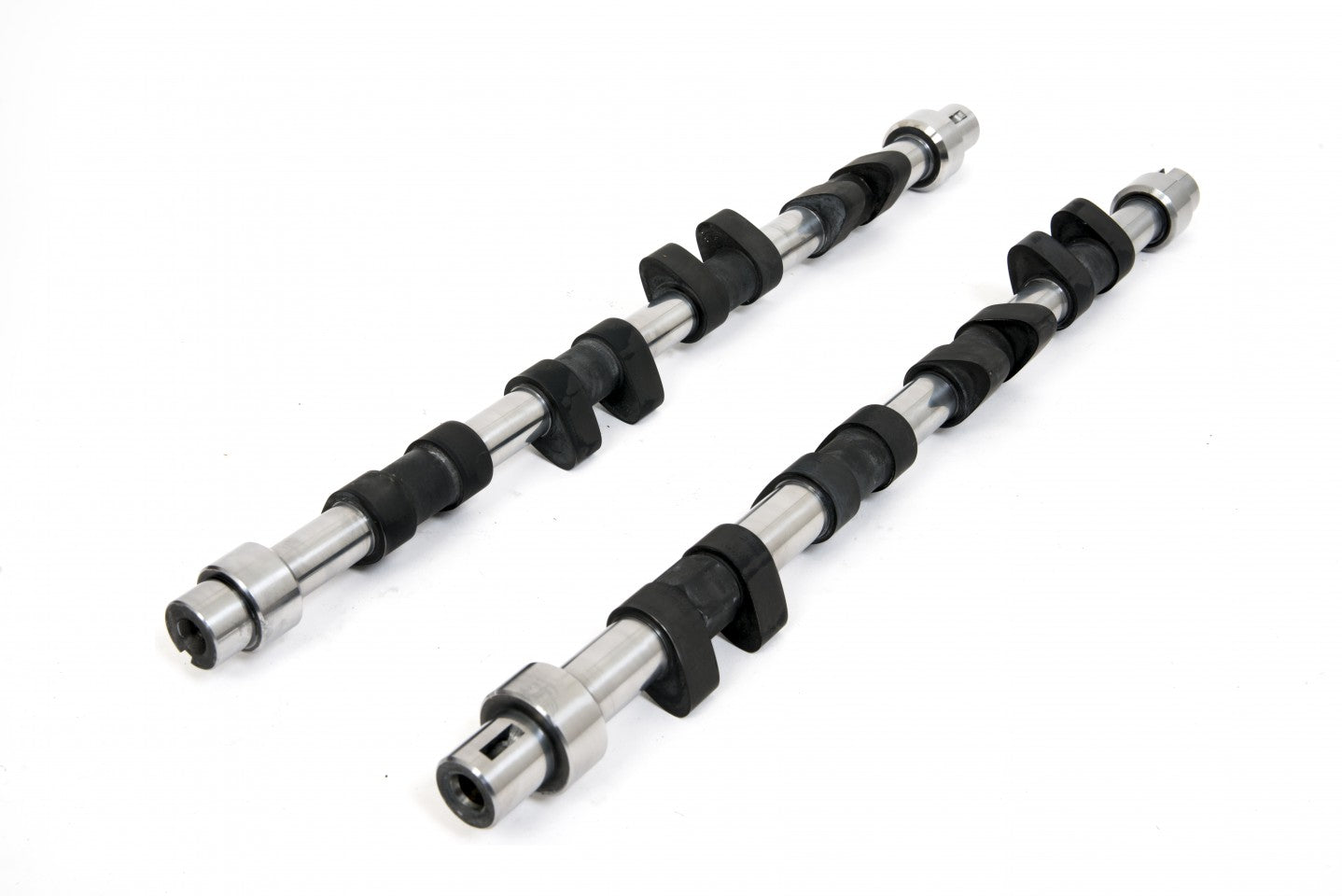

SKU: SKU: P16VBP320B
Profile: BP320.
Application: Race.
Unit Type: Blank.
Note: Not suitable for use with standard O.E springs, Piper VDSMI16 spring kit must be used. Designed for engines utilising Mechanical followers.
Download:-
Right click the link and select 'Save as' to download.
Click the link to open in a new tab.
| Weight | 5 kg |
|---|---|
| Application | Race |
| Power Band | 4000-8500 |
| Duration Inlet | 300° |
| Duration Exhaust | 300° |
| Valve Inlet Lift | .480" 12.19mm |
| Valve Exhaust Lift | .480" 12.19mm |
| Timing Inlet | 46 - 74 |
| Timing Exhaust | 76 - 44 |
| Full Inlet Lift | 104° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .192" 4.88mm |
| TDC Exhaust Lift | .180" 4.58mm |
| Valve Inlet Clearance | .008" .20mm |
| Valve Exhaust Clearance | 010" .25mm |
