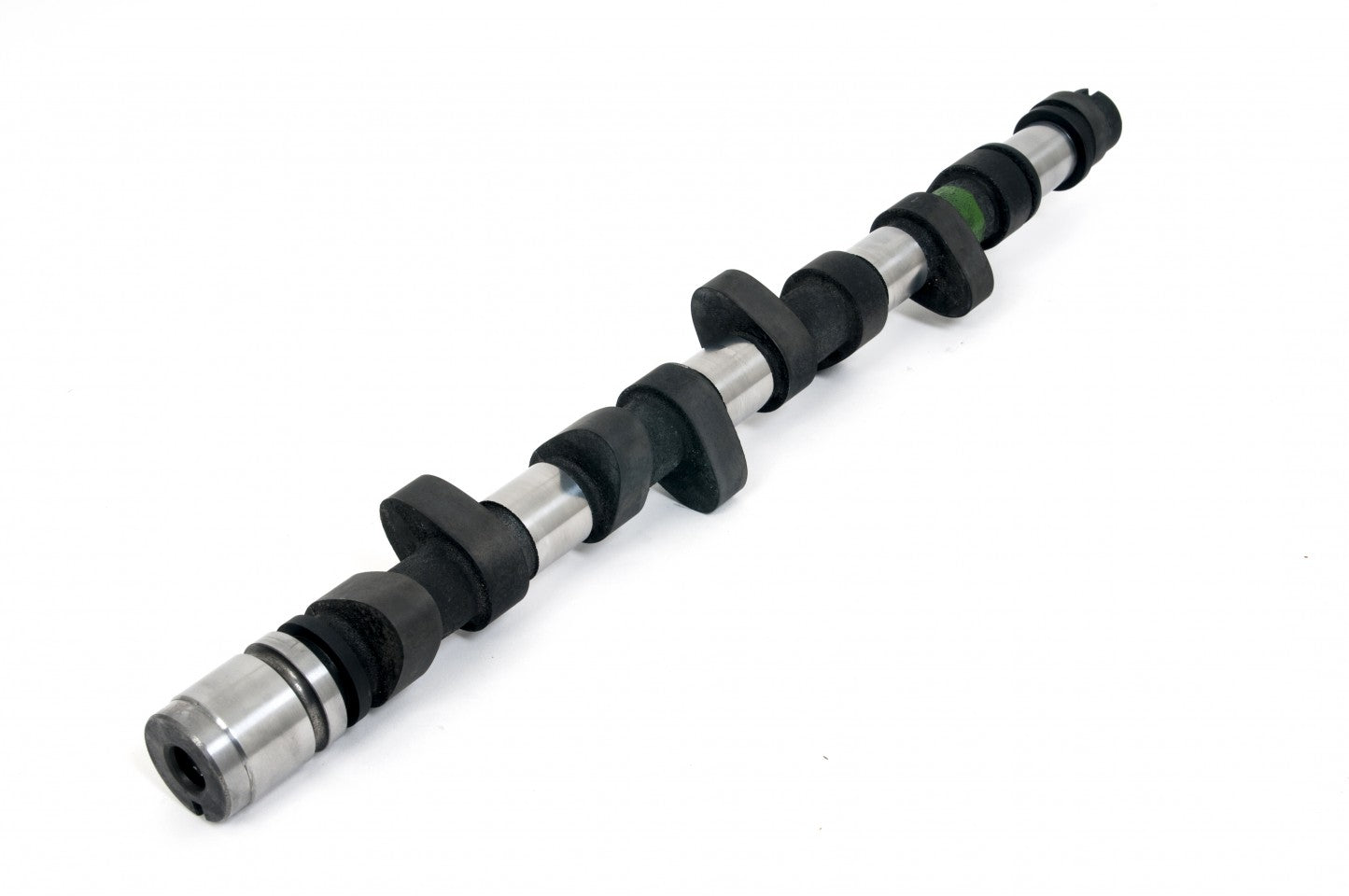

SKU: SKU: P16BP270B
Profile: BP270.
Application: Fast Road.
Unit Type: Blank.
Note:Piper supply these camshafts on universal blank castings, meaning they have both the thrust groove & thrust shoulders.
Note: .028" skimmed from the head when fitting this cam will produce 120bhp @ the wheels instantly.
Download:-
Right click the link and select 'Save as' to download.
Click the link to open in a new tab.
| Weight | 3 kg |
|---|---|
| Application | Fast Road |
| Power Band | 2000-6500 |
| Power Increase | 20BHP |
| Duration Inlet | 272° |
| Duration Exhaust | 272° |
| Valve Inlet Lift | .462" 11.73mm |
| Valve Exhaust Lift | .460" 11.68mm |
| Timing Inlet | 28 - 64 |
| Timing Exhaust | 64 - 28 |
| Full Inlet Lift | 108° |
| TDC Inlet Lift | .062" 1.57mm |
| TDC Exhaust Lift | .060" 1.52mm |
| Valve Inlet Clearance | .008" .20mm |
| Valve Exhaust Clearance | .010" .25mm |
