SKU: SKU: MAZ18BPZ3BP270R
Profile: BP270.
Application: Fast Road.

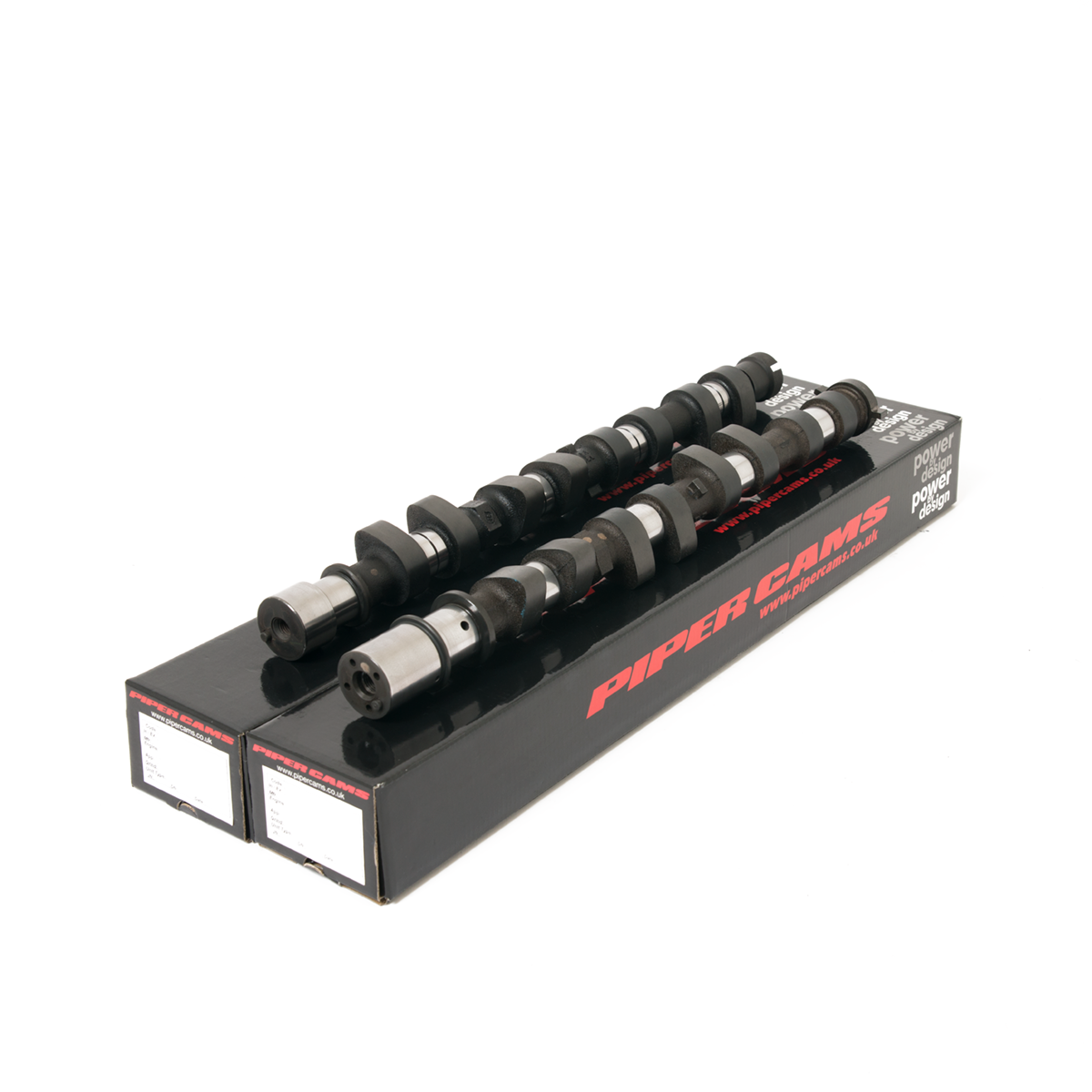

Unit Type: Re-Profiled Camshafts.
Note: This profile suits the 1800cc Mk2 VVT BP-Z3 engine.
Note:These are re-profile camshaft only. You will need to complete our Send Parts form and send us your existing camshafts. For more information, please take a look at our Reprofiling page.
Note: To suit engines utilising Mechanical followers.
Note:Piper 'Top Hat Shims' will be required to keep within service shim sizes when using mechanical profiles.
| Weight | 5 kg |
|---|---|
| Application | Fast Road |
| Power Band | 1500-6500 |
| Duration Inlet | 256° |
| Duration Exhaust | 252° |
| Valve Inlet Lift | .370" 9.40mm |
| Valve Exhaust Lift | .348" 8.83mm |
| Timing Inlet | 20 - 56 |
| Timing Exhaust | 52 - 20 |
| Full Inlet Lift | 108° |
| Full Exhaust Lift | 106° |
| TDC Inlet Lift | .044" 1.12mm |
| TDC Exhaust Lift | .056" 1.43mm |
| Valve Inlet Clearance | .010" .254mm |
| Valve Exhaust Clearance | .012" .305mm |
