SKU: SKU: FIATCBP270B
Profile: BP270.
Application: Fast Road.
Unit Type: Blank.

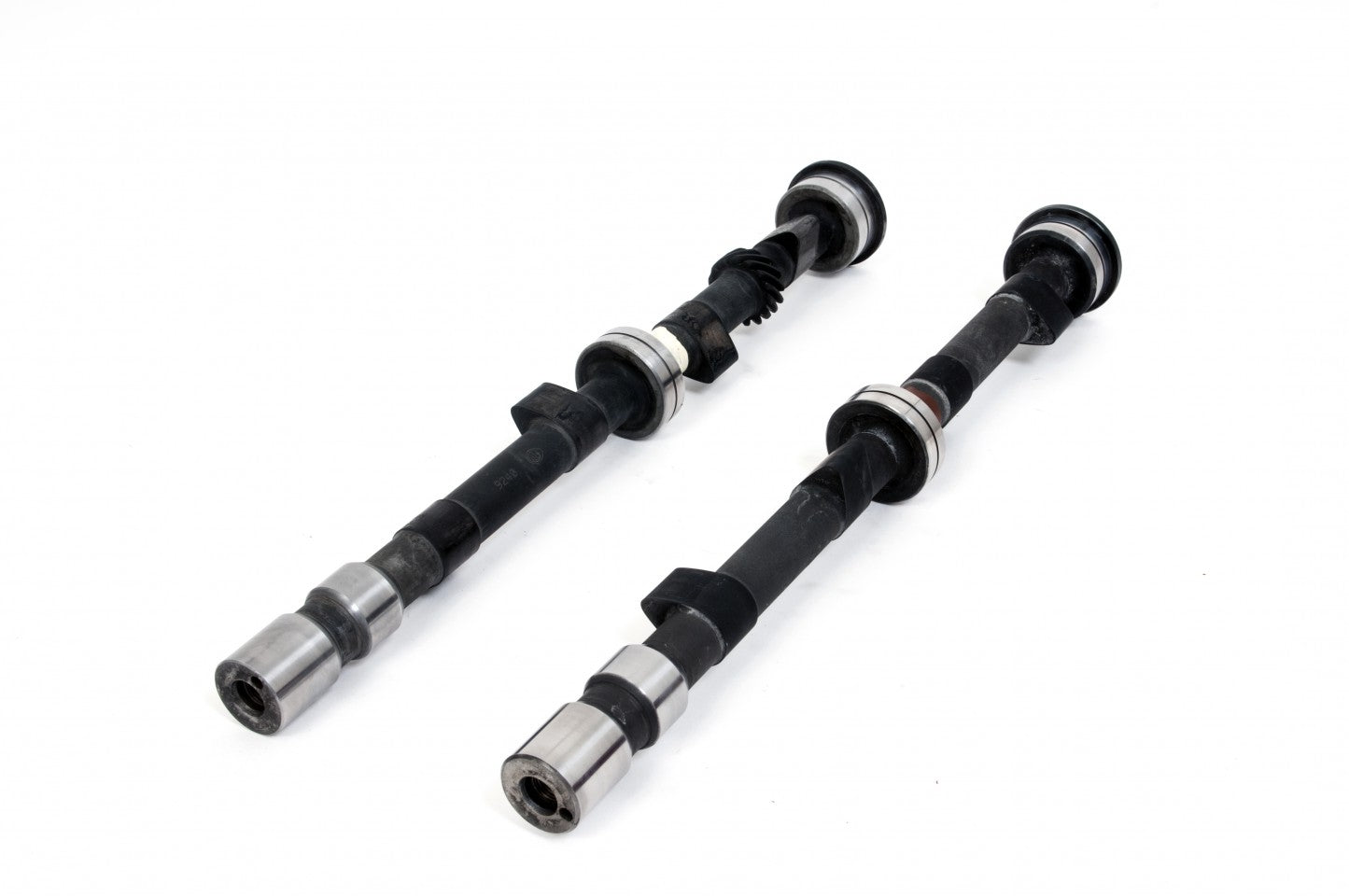

Exhaust camshaft available with or without distributor gear.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 5 kg |
|---|---|
| Application | Fast Road |
| Power Band | 2000-6500 |
| Power Increase | 10BHP |
| Duration Inlet | 280° |
| Duration Exhaust | 280° |
| Valve Inlet Lift | .385" 9.80mm |
| Valve Exhaust Lift | .385" 9.80mm |
| Timing Inlet | 32 - 68 |
| Timing Exhaust | 68 - 32 |
| Full Inlet Lift | 108° |
| Full Exhaust Lift | 108° |
| TDC Inlet Lift | .099" 2.51mm |
| TDC Exhaust Lift | .097" 2.46mm |
| Valve Inlet Clearance | .008" .20mm |
| Valve Exhaust Clearance | .010" .25mm |
| Does the exhaust camshaft need the distributor gear? | YES, NO |
