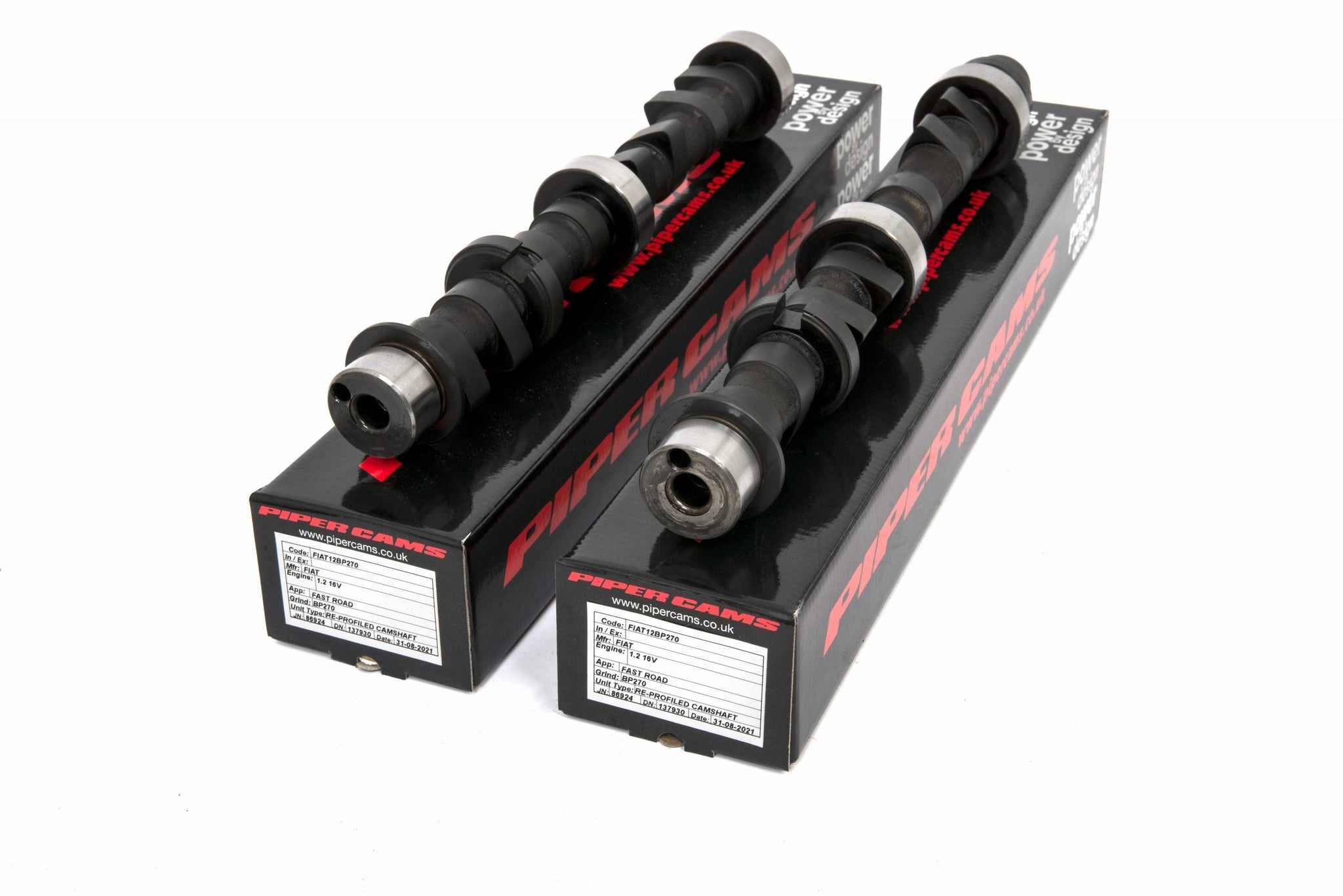

SKU: SKU: FIAT12BP270R
Profile: BP270.
Application: Fast Road.
Unit Type: Re-Profiled Camshafts.
Note:These are re-profile camshafts only. You will need to complete our Send Parts form and send us your existing camshafts. For more information, please take a look at our Reprofiling page.
Note:Reprofiled Camshafts may vary from specifications listed.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 3 kg |
|---|---|
| Application | Fast Road |
| Power Band | 2000-6500 |
| Power Increase | 8BHP |
| Duration Inlet | 248° |
| Duration Exhaust | 248° |
| Valve Inlet Lift | .320" 8.13mm |
| Valve Exhaust Lift | .320" 8.13mm |
| Timing Inlet | 14 - 54 |
| Timing Exhaust | 54 - 14 |
| Full Inlet Lift | 110° |
| Full Exhaust Lift | 110° |
| TDC Inlet Lift | .016" 0.40mm |
| TDC Exhaust Lift | .016" 0.40mm |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
