SKU: SKU: FECO16BP320B

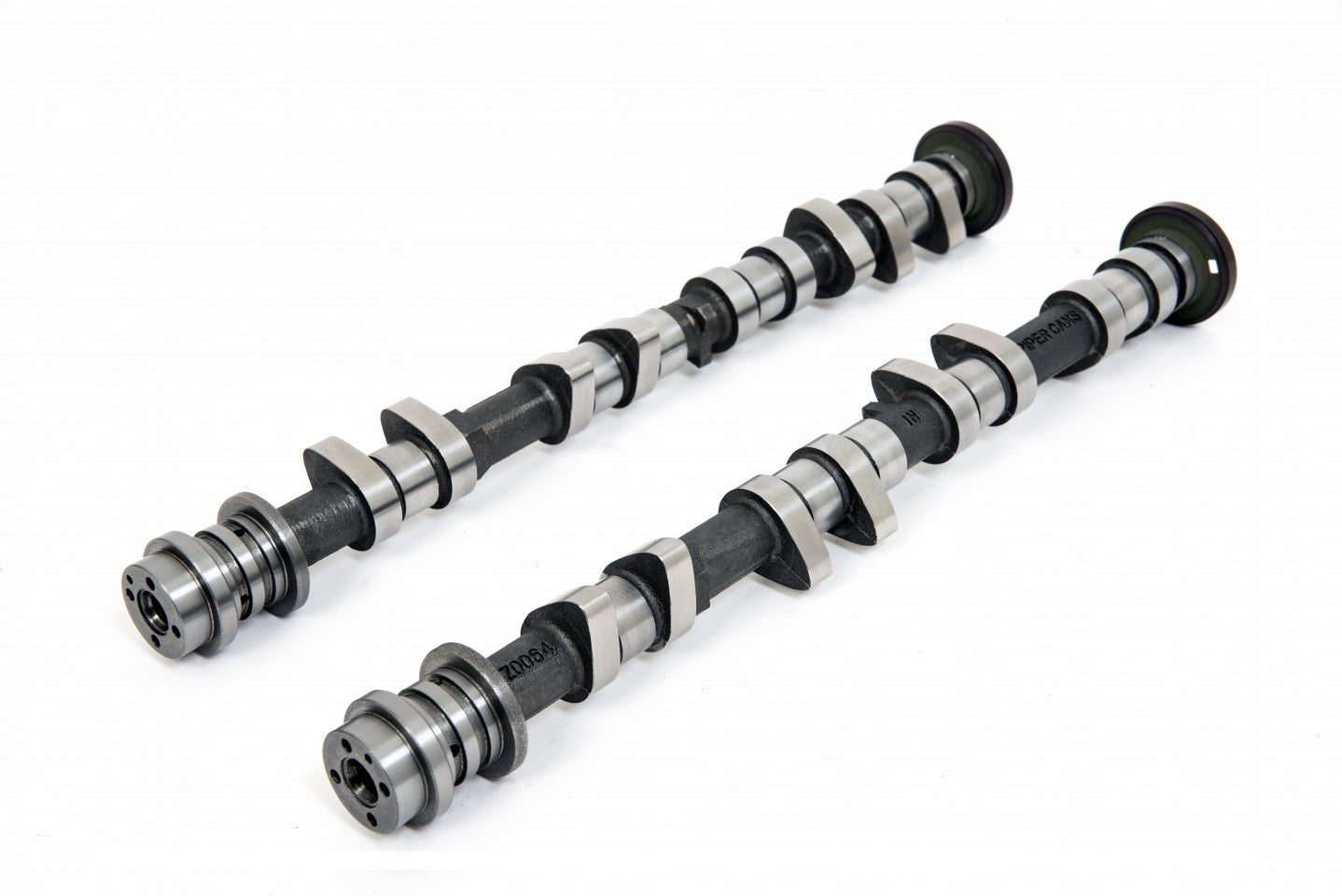

Profile: BP320.
Application: Race.
Unit Type: Blank.
Note: Not Suitable for use with O.E. valve springs. (Piper uprated springs are available.)
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 4 kg |
|---|---|
| Application | Race |
| Power Band | 2500-8500 |
| Duration Inlet | 276° |
| Duration Exhaust | 264° |
| Valve Inlet Lift | .420" 10.67mm |
| Valve Exhaust Lift | .351" 8.91mm |
| Timing Inlet | Oct-86 |
| Timing Exhaust | 52 - 32 |
| Full Inlet Lift | 128° |
| Full Exhaust Lift | 100° |
| TDC Inlet Lift | .010" 0.27mm |
| TDC Exhaust Lift | .094" 2.39mm |
| Valve Inlet Clearance | .010" .25mm |
| Valve Exhaust Clearance | .012" .30mm |
