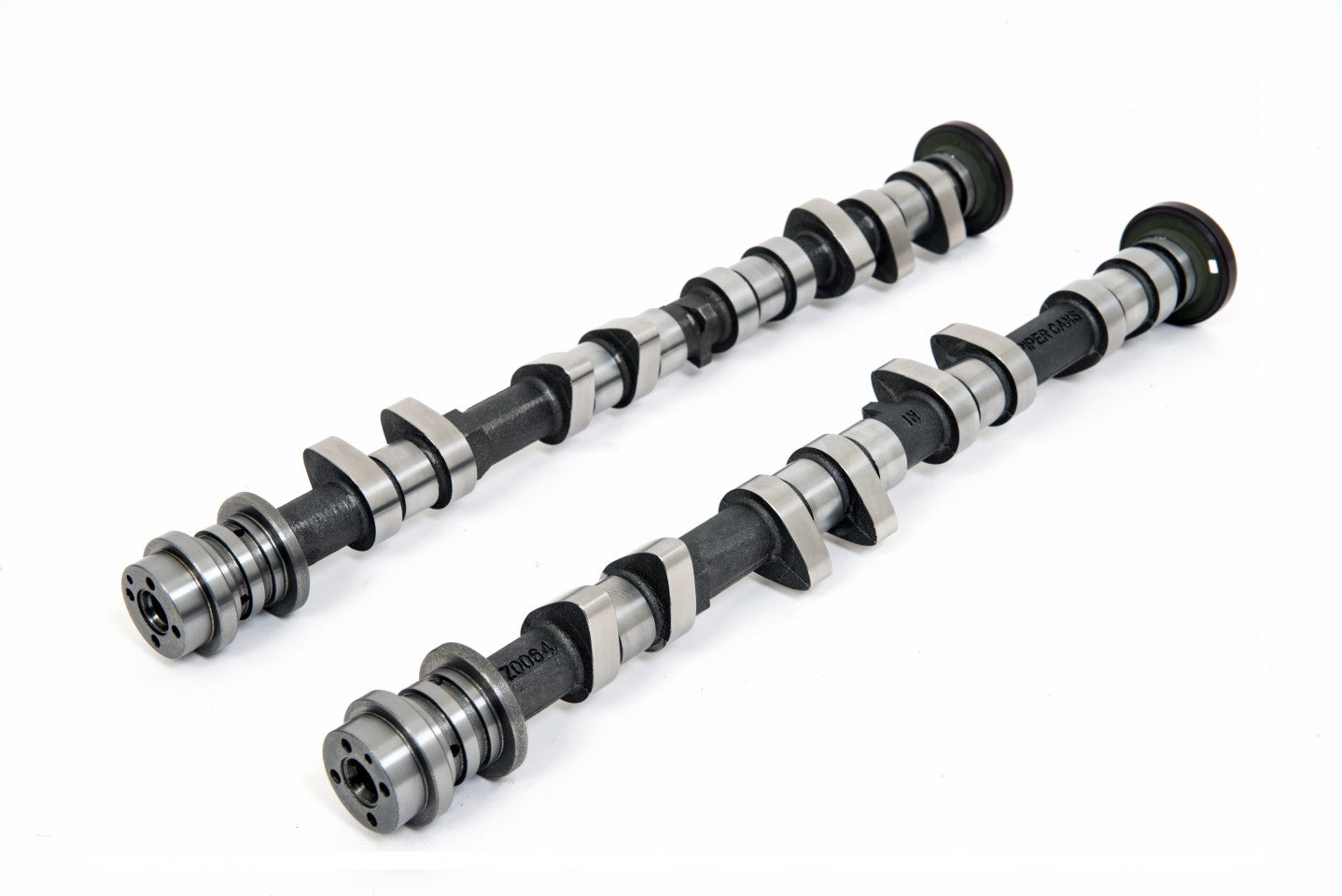

Piper Cams Camshaft - Rally (Ford)

SKU: SKU: FECO16BP300B

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

Profile: BP300.

Application: Rally.

Unit Type: Blank.

Note: Not Suitable for use with O.E. valve springs. (Piper uprated springs are available.)

Download:-

Fitting Data.

Right click the link and select 'Save link as' to download.

Click the link to open in a new tab.



Specifications

Weight 4 kg
Application Rally
Power Band 2500-8000
Duration Inlet 272°
Duration Exhaust 254°
Valve Inlet Lift .376" 9.55mm
Valve Exhaust Lift .331" 8.39mm
Timing Inlet Aug-84
Timing Exhaust 47 - 27
Full Inlet Lift 128°
Full Exhaust Lift 100°
TDC Inlet Lift .008" 0.22mm
TDC Exhaust Lift .057" 1.44mm
Valve Inlet Clearance .010" .25mm
Valve Exhaust Clearance .012" .30mm

Vehicle Application

  • FORD Ecoboost 1.6 - Fiesta ST180
