SKU: SKU: CVHBP285TB

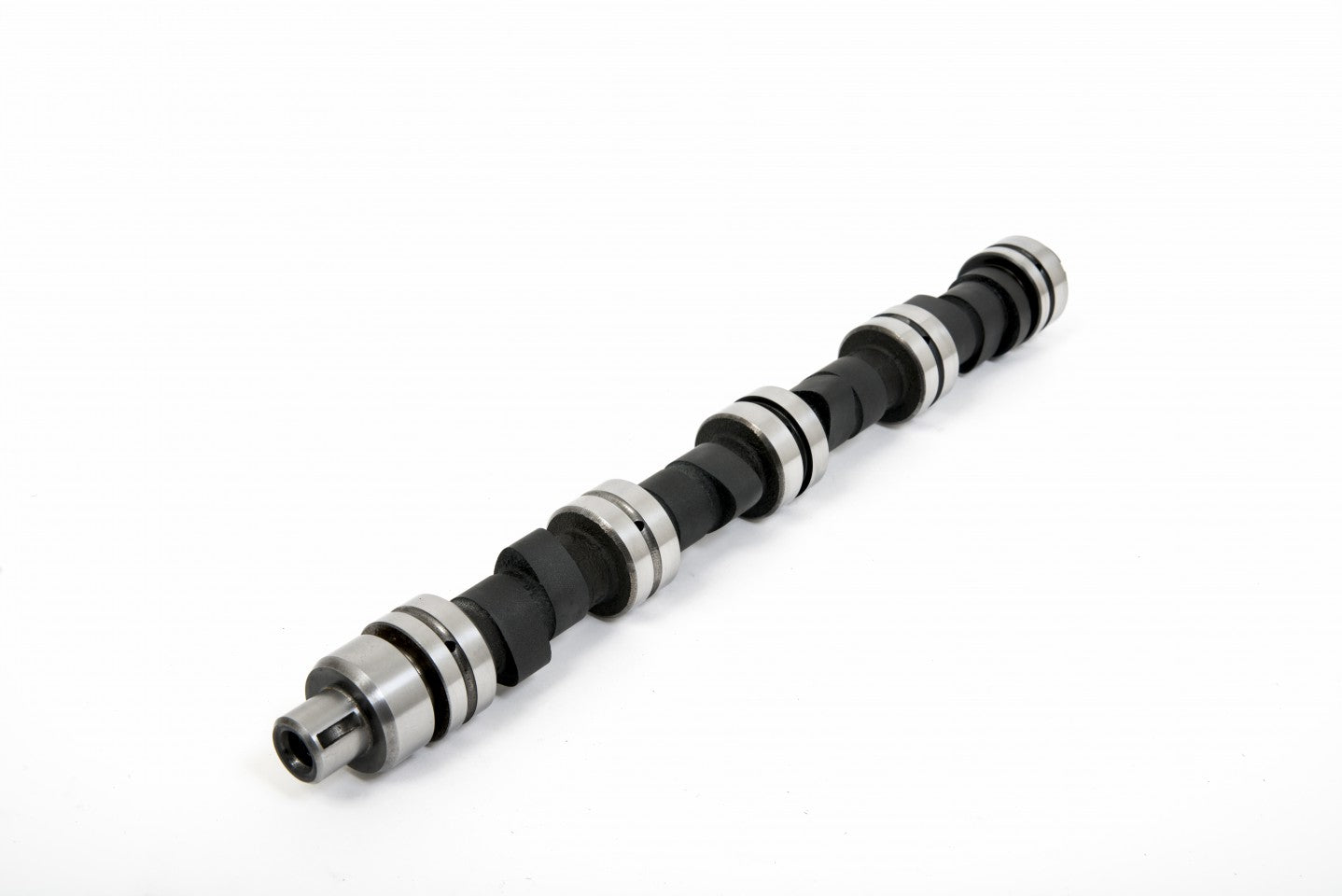

Profile: BP285T.
Application: Ultimate Road Turbo.
Unit Type: Blank.
For cars running standard boost pressure. Straightforward installation in series 1 & 2.
Note: Standard springs coil bind, Piper VSSCVH springs must be used.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 6 kg |
|---|---|
| Application | Ultimate Road Turbo |
| Power Band | 2000-6000+ |
| Power Increase | 15BHP |
| Duration Inlet | 270° |
| Duration Exhaust | 270° |
| Valve Inlet Lift | .458" 11.63mm |
| Valve Exhaust Lift | .440" 11.17mm |
| Timing Inlet | 16 - 74 |
| Timing Exhaust | 74 - 16 |
| Full Inlet Lift | 119° |
| TDC Inlet Lift | .013" 0.33mm |
| TDC Exhaust Lift | .026" 0.6mm |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
