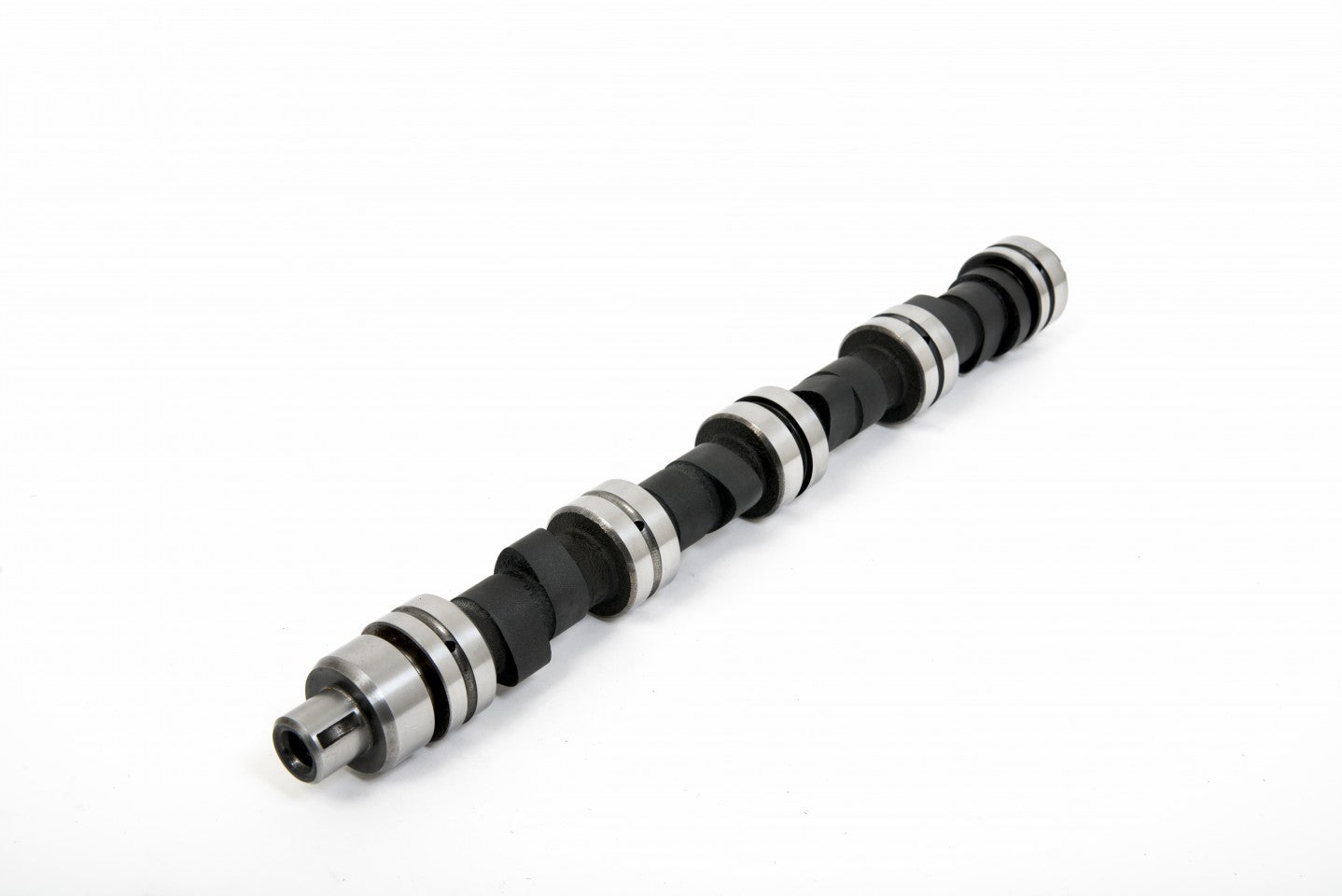

SKU: SKU: CVHBP255B
Profile: BP255.
Application: Mild Road.
Unit Type: Blank.
For use in all engine sizes.
Note:Standard springs coil bind, Piper VSSCVH springs must be used.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new tab.
| Weight | 4 kg |
|---|---|
| Application | Mild Road |
| Power Band | 1000-5500 |
| Power Increase | 6BHP |
| Duration Inlet | 268° |
| Duration Exhaust | 268° |
| Valve Inlet Lift | .400" 10.16mm |
| Valve Exhaust Lift | .400" 10.16mm |
| Timing Inlet | 22 - 66 |
| Timing Exhaust | 66 - 22 |
| Full Inlet Lift | 112° |
| TDC Inlet Lift | .045" 1.14mm |
| TDC Exhaust Lift | .045" 1.14mm |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
