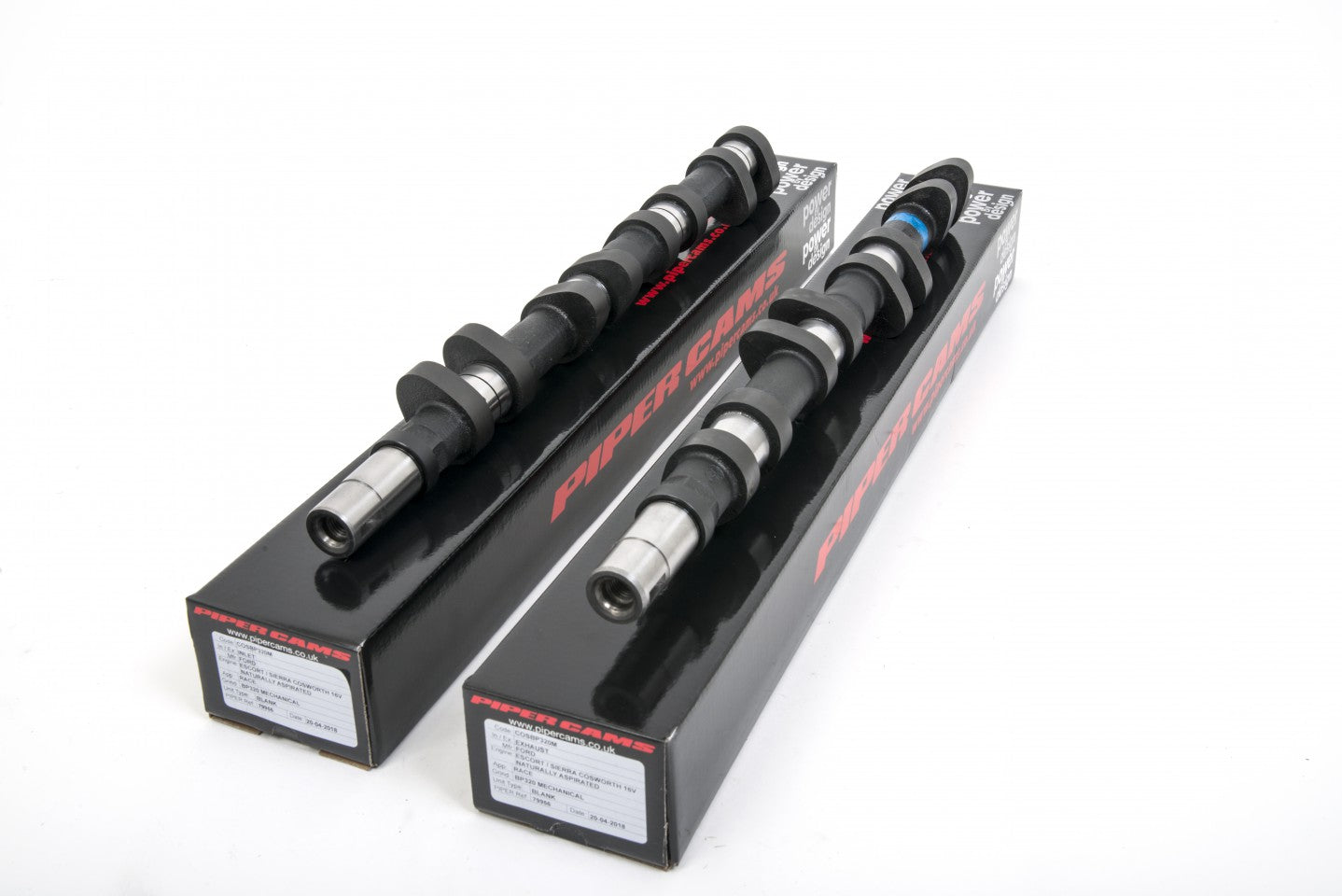

SKU: SKU: COSBP270HB
Profile: BP270H.
Application: Fast Road.
Unit Type: Blank.
Designed for Naturally Aspirated engines utilising Hydraulic followers.
Note:When fitting to a 2WD head, Piper COSWASH thrust spacers are required.
Download:-
Right click the link and select 'Save link as' to download.
Click the link to open in a new browser.
| Weight | 6 kg |
|---|---|
| Application | Fast Road |
| Power Band | 2000-6500 |
| Duration Inlet | 268° |
| Duration Exhaust | 268° |
| Valve Inlet Lift | .395" 10.03mm |
| Valve Exhaust Lift | .367" 9.32mm |
| Timing Inlet | 26 - 62 |
| Timing Exhaust | 62 - 26 |
| Full Inlet Lift | 108° |
| Full Exhaust Lift | 108° |
| TDC Inlet Lift | .067" 1.70mm |
| TDC Exhaust Lift | .065" 1.65mm |
| Valve Inlet Clearance | HYDRAULIC |
| Valve Exhaust Clearance | HYDRAULIC |
