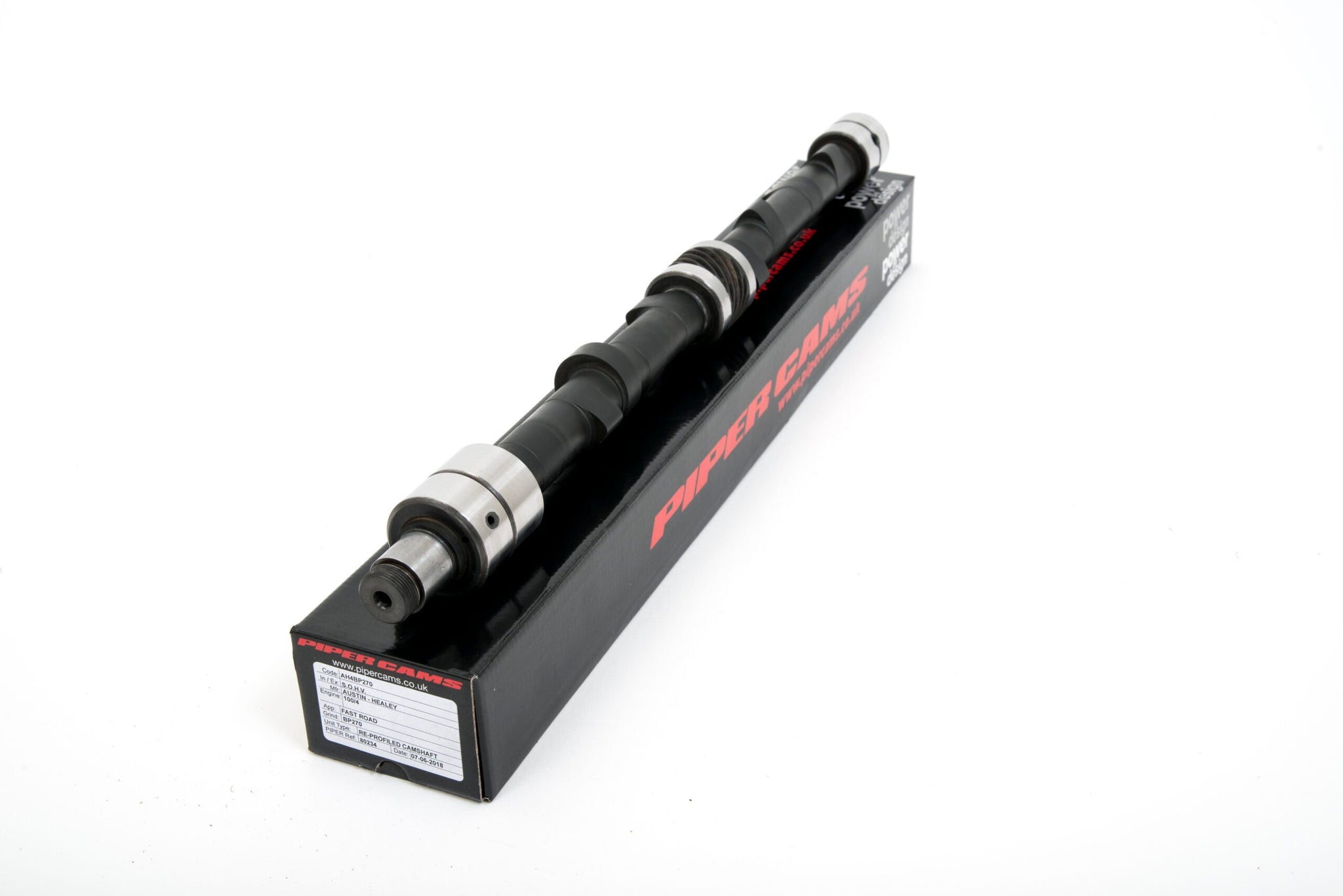

SKU: SKU: AH4BP300R
Profile: BP300.
Application: Rally.
Unit Type: Re-Profiled Camshaft.
Download:-
Right click the link and select ‘Save link as’ to download.
Click the link to open in a new tab.
Note:This is a reprofile camshaft only. You will need to complete our Send Parts form and send us your existing camshaft. For more information, please take a look at our Reprofiling page.
| Weight | 3 kg |
|---|---|
| Application | Rally |
| Power Band | 2500-6500 |
| Duration Inlet | 296° |
| Duration Exhaust | 296° |
| Valve Inlet Lift | .456" 11.59mm |
| Valve Exhaust Lift | .454" 11.54mm |
| Timing Inlet | 43 - 71 |
| Timing Exhaust | 71 - 43 |
| Full Inlet Lift | 104° |
| Full Exhaust Lift | 104° |
| TDC Inlet Lift | .138" 3.52mm |
| TDC Exhaust Lift | .136" 3.46mm |
| Valve Inlet Clearance | .016" .40mm |
| Valve Exhaust Clearance | .018" .45mm |
