SKU: SKU: AH4BP285R
Profile: BP270.
Application: Fast Road.

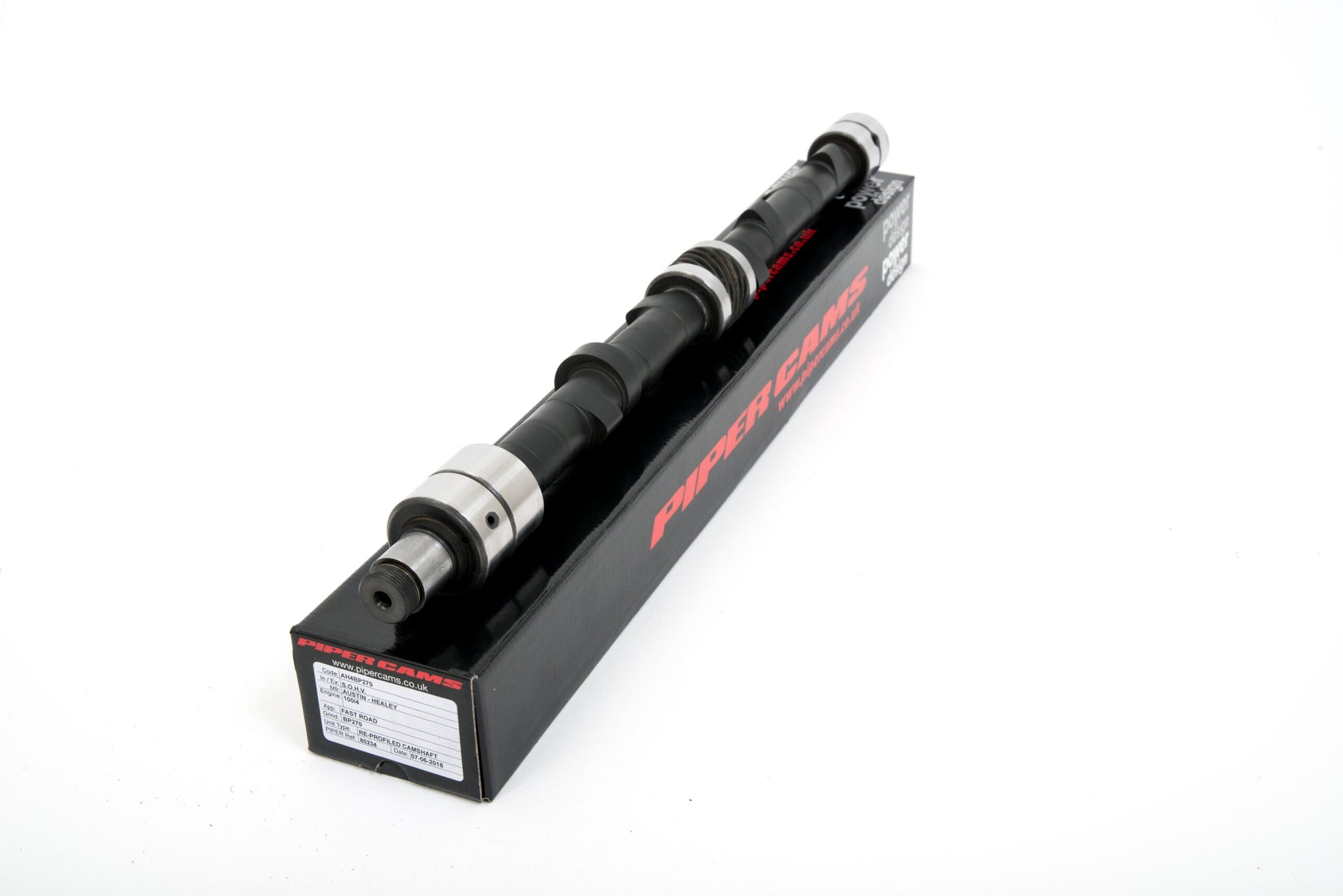

Unit Type: Re-Profiled Camshaft.
Download:-
Right click the link and select ‘Save link as’ to download.
Click the link to open in a new tab.
Note:This is a reprofile camshaft only. You will need to complete our Send Parts form and send us your existing camshaft. For more information, please take a look at our Reprofiling page.
| Weight | 3 kg |
|---|---|
| Application | Ultimate Road |
| Power Band | 2000-6000 |
| Power Increase | 15BHP |
| Duration Inlet | 288° |
| Duration Exhaust | 288° |
| Valve Inlet Lift | .421" 10.69mm |
| Valve Exhaust Lift | .419" 10.64mm |
| Timing Inlet | 39 - 69 |
| Timing Exhaust | 74 - 34 |
| Full Inlet Lift | 105° |
| Full Exhaust Lift | 105° |
| TDC Inlet Lift | .105" 2.66mm |
| TDC Exhaust Lift | .080" 2.02mm |
| Valve Inlet Clearance | .014" .35mm |
| Valve Exhaust Clearance | .016" .40mm |
