ICON 03-12 Dodge Ram 2500/3500 4WD 2.5in Stage 4 Suspension System - K212504T

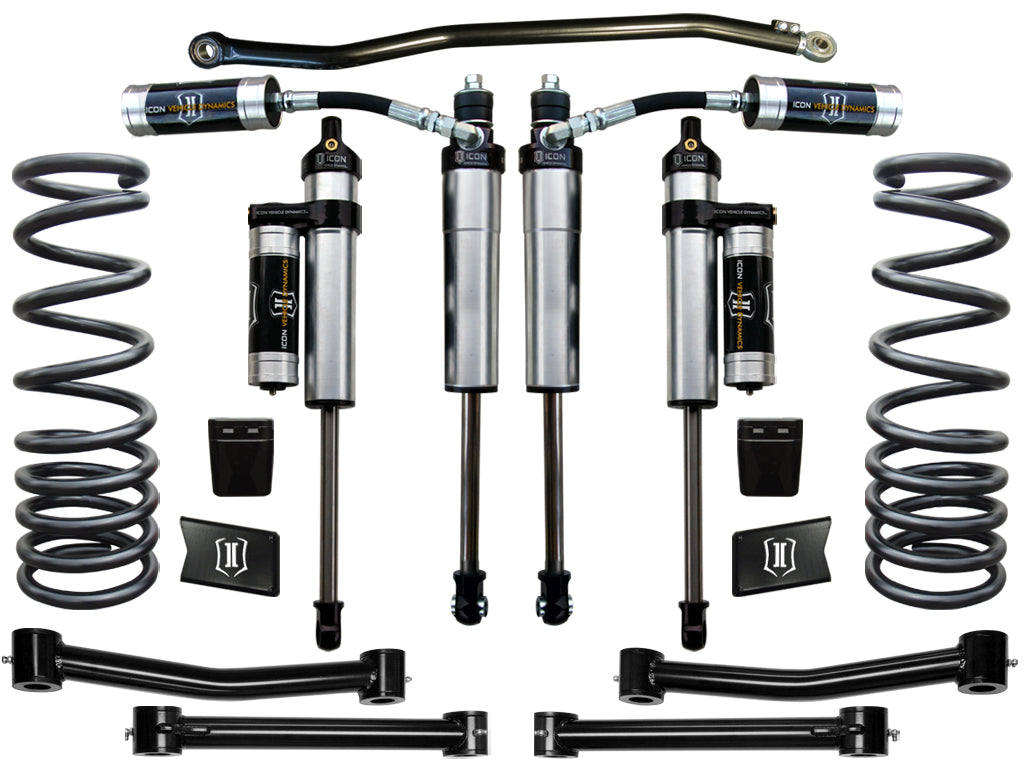

2003-2012 Ram 2500/3500 2.5" Stage 4 Suspension System is our ultimate performance kit that offers extraordinary diversity across any terrain. This system not only levels out the stance, it increases ride quality and performance substantially both on and off-road. The Stage 4 System is comprised of dual rate coil springs, polyurethane bump stops, sway bar drop brackets, 2.5" V.S. Aluminum Series shocks, bearing style adjustable track bar, and tubular steel upper & lower links. ICON 2.5" Aluminum Series shocks extend the performance of the kit by increasing the duration of consistent damping regardless of situation. These shocks include FK bearings, billet top cap & rod ends, and 7/8" shafts for strength. The adjustable track bar with bearings not only improves rigidity over the flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper & lower links increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market.

Features

• Heavy-duty steel upper and lower link bars
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Level stance front to rear
• Less body roll than stock
• No drive shaft modifications needed
• ICON engineered dual rate coil springs with match tuned 2.5" V.S. Aluminum Series shocks
• 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Adjustable track bar with PTFE lined FK bearings

OEM Wheels & Tires Fitment: Yes

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset

Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)

APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE

Ships in Multiple Boxes

Specifications

Documents

• I212500_REVB.pdf
• I214030_REVB.pdf
• I217800P_REVB.pdf
