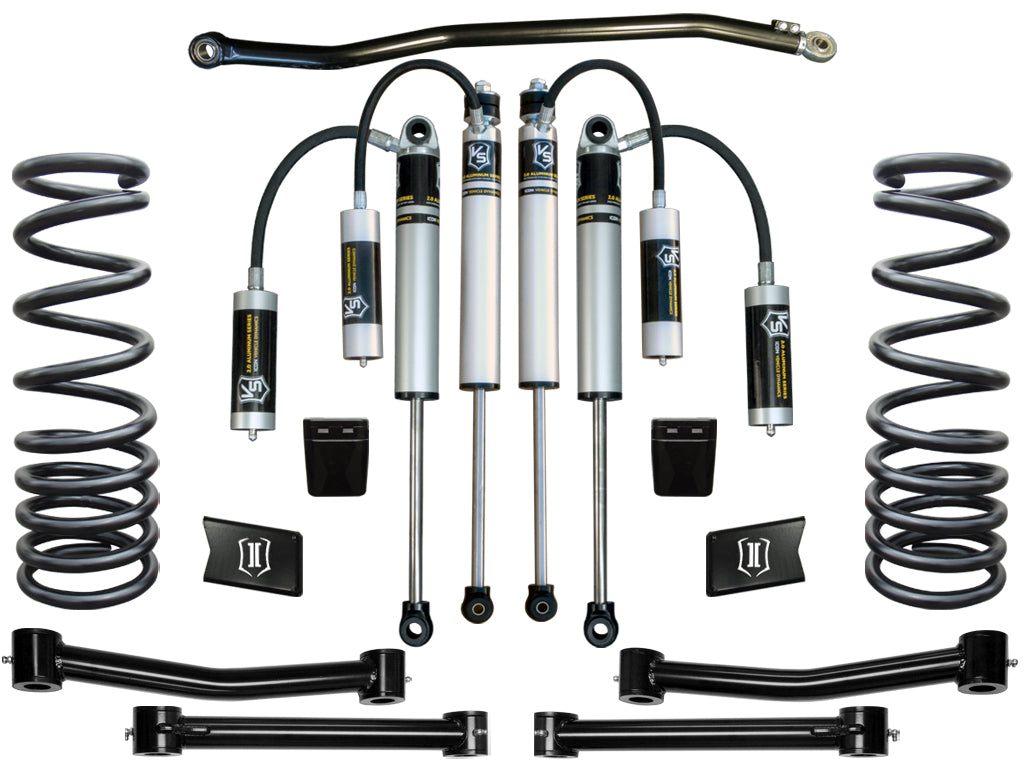

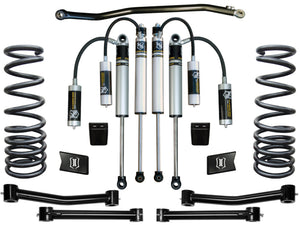

ICON 03-12 Dodge Ram 2500/3500 4WD 2.5in Stage 3 Suspension System - K212503T

2003-2012 Ram 2500/3500 2.5 Inch Stage 3 Suspension System is our mid-level performance system for the active off road or overlanding enthusiast. This system not only levels out the stance, it increases ride quality and performance both on and off road. The Stage 3 system is comprised of dual rate coil springs, polyurethane bumpstops, sway bar drop brackets, 2.0 Aluminum Series remote reservoir shocks, bearing style adjustable track bar, and front steel upper and lower links. Remote reservoir shocks will extend performance of the kit by increasing the duration of consistent damping regardless of situation. The adjustable track bar with FK bearings not only improves rigidity over flexible factory joints, but offers adjustability to center the front axle under the truck. ICON steel upper and lower links included increase performance, strength, and range of alignment. These link arms decrease the bind found in the factory link bushings. ICON has spent endless hours testing and tuning our suspension components and shocks together, so you can rest assured you have the best suspension solution on the market.

Features

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Level stance front to rear
• Less body roll than stock
• No drive shaft modifications needed
• ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series remote reservoir shocks
• Adjustable track bar with PTFE lined FK bearings
• Heavy-duty steel upper and lower link bars

OEM Wheels & Tires Fitment: Yes

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset

Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)

APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY

APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE

Ships in Multiple Boxes

Specifications

Documents

• I212500_REVB.pdf
• I214030_REVB.pdf
• I216521R_REVA.pdf
