SKU: SKU: HKS32016-AH030
HKS SILENT Hi-Power ZF1 CR-Z (MAIN+CP) A
You can experience the sporty appearance and the strong sound of a naturally aspirated engine
with a light response due to the straight structure. In addition, to ensure comfort, the silent chamber silences the interior noise and the interior noise in urban areas. It is also inspection-compliant when combined with the HKS metal catalyzer.
| Certification number | JQR30133063 |
|---|
| Model name | CR-Z |
|---|---|
| Model | ZF1 |
| Engine type | LEA-MF6 |
| Model year | 10/02 - 12/09 |
| Muffler shape |
HP (Curl) (silent Hi-Power) |
|
|---|---|---|
| Main Material | S304 | |
| Tail Outer Diameter | 65 | |
| Intermediate Pipe Diameter | 45 - 50 (※1) | |
| Nearby exhaust noise | normal | 88 |
| HKS | 86 | |
| Regarding ground clearance when installed (※2) | Number | 153mm |
| Kit target area | Intermediate Pipe | |
| remarks | ||
| HKS product weight | ||
Not suitable for vehicles with center pipe, Modulo or Mugen rear under spoiler. Close-range exhaust noise when used with metal catalyzer: 94dB
*1: Regarding intermediate pipes,
the Φ number of the intermediate pipe diameter in the muffler is the Φ number of the thickest part in the structure (excluding the shell and the outer diameter of the tail).
*2: When the HKS muffler is installed, the part with the smallest clearance between the HKS muffler (all parts included in the kit) and the road surface is listed. Therefore, it may differ from the minimum ground clearance of the vehicle itself.
The data is basically for vehicles with normal suspension, but please note that some data is for use in combination with low-down springs or height-adjustable suspension kits.
Note: Hooks, brackets, and stays are subject to change without notice.

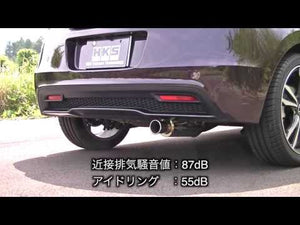

*Exhaust volume at idling
silent Hi-Power
Vehicle: CR-Z
Application
Specifications
CR-Z DAA-ZF2 Sporty appearance and robust sound of NA Experience the swift response with the straight layout! Reduced noise with silent chamber for better and comfortable driving environment. Cert. No. JQR30133063 Vehicle CR-Z Model ZF2 Engine LEA-MF6 Model Year 12/10 - 17/01 Shape of muffler HP (Curl) (silent Hi-Power) Main material S304 Diameter of tip 65 Diameter of center pipe 45 - 50 (*1) Close noise level Stock 88 HKS 87 About road clearance(*2) Clearance 153mm Portion of the kit Center pipe Remarks Product Weight Remarks Come with center pipe. Not applicable for Modulo or Mugen rear under spoiler installed vehicle. CVT is not adaptable for certification. About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. [ CLOSE ]
Source: HKS Japan · Detail page
