SKU: SKU: HKS32016-AH031

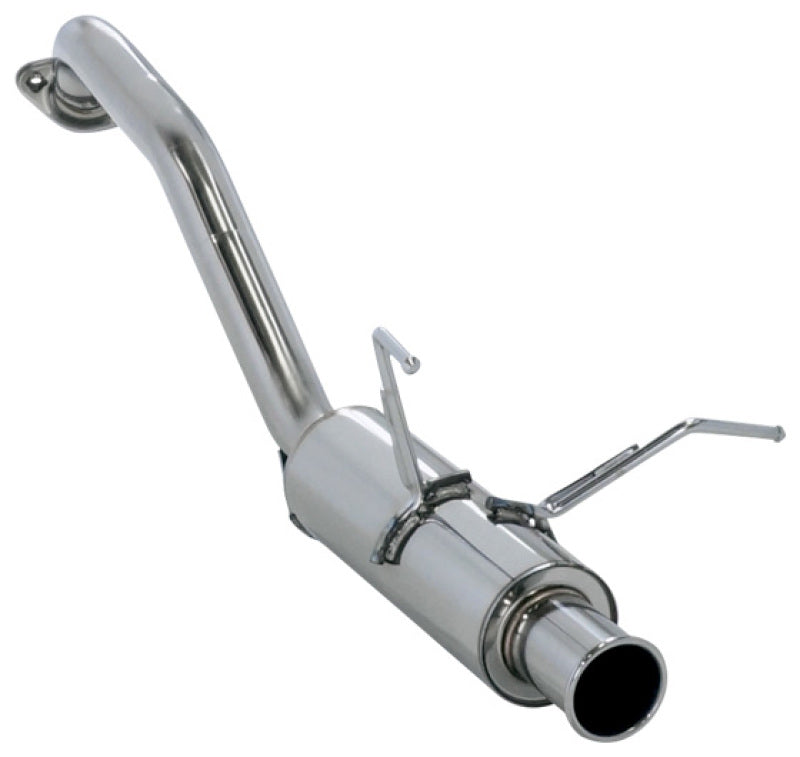

HKS Silent Hi-Power GP5 LEB-H1 FIT HYBRID
Experience the sporty appearance and robust sound
of a naturally aspirated engine with the straight structure that provides a snappy response and robust sound quality of a naturally aspirated engine. The straight structure has little exhaust resistance, and is inspection-compliant, so you can use it with peace of mind.
| Certification number | JQR10141052 |
|---|
| Model name | fit |
|---|---|
| Model | GK5 |
| Engine type | L15B |
| Model year | 13/09 - 20/01 |
| Muffler shape |
HP (TYPE-H) (silent Hi-Power) |
|
|---|---|---|
| Main Material | S304 | |
| Tail Outer Diameter | 65 | |
| Intermediate Pipe Diameter | 50 (※1) | |
| Nearby exhaust noise | normal | 80 |
| HKS | 92 | |
| Regarding ground clearance when installed (※2) | Number | 180mm |
| Kit target area | Main Shell | |
| remarks | ||
| HKS product weight | ||
Main only. Not compatible with 4WD and CVT. Cannot be installed on vehicles with Mugen rear under spoiler. Can be installed on vehicles manufactured after June 2017 by using genuine rubber "18215-S84-A30" or HKS rubber "17459-002100".
*1: Regarding intermediate pipes,
the Φ number of the intermediate pipe diameter in the muffler is the Φ number of the thickest part in the structure (excluding the shell and the outer diameter of the tail).
*2: When the HKS muffler is installed, the part with the smallest clearance between the HKS muffler (all parts included in the kit) and the road surface is listed. Therefore, it may differ from the minimum ground clearance of the vehicle itself.
The data is basically for vehicles with normal suspension, but please note that some data is for use in combination with low-down springs or height-adjustable suspension kits.
Note: Hooks, brackets, and stays are subject to change without notice.
*Exhaust volume at idling
silent Hi-Power
Vehicle: FIT
Application
Specifications
FIT 6AA-GR3 SPORTY APPEARANCE & STRONG SOUND Quick response from it’s straight design. Experience the strong exhaust sound created by NA engine! The straight structure of this exhaust system reduces exhaust resistance but is still compliant to Japanese Automobile inspection standards Cert. No. JQR10141052 Vehicle FIT Model GR3 Engine LEB-H5 Model Year 20/02 - 22/09 Shape of muffler HP (TYPE-H) (silent Hi-Power) Main material S304 Diameter of tip 65 Diameter of center pipe 50 (*1) Close noise level Stock 77 HKS 90 About road clearance(*2) Clearance 180mm Portion of the kit Main silencer Remarks Product Weight Remarks Main only. Not compatible with the vehicle made after Oct. 2022. (after minor model change) HKSマフラーについて About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. [ CLOSE ]
Source: HKS Japan · Detail page
