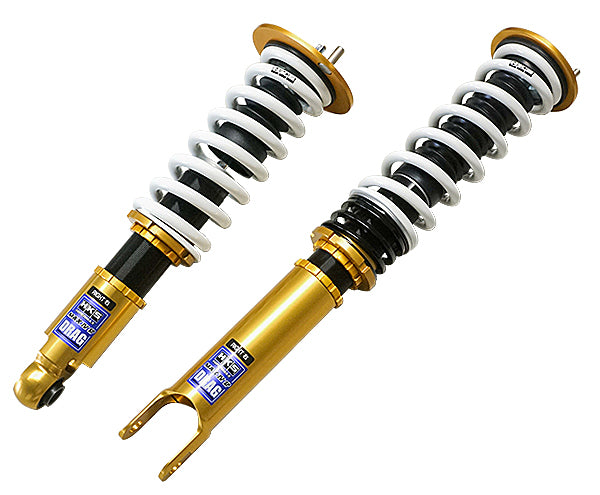

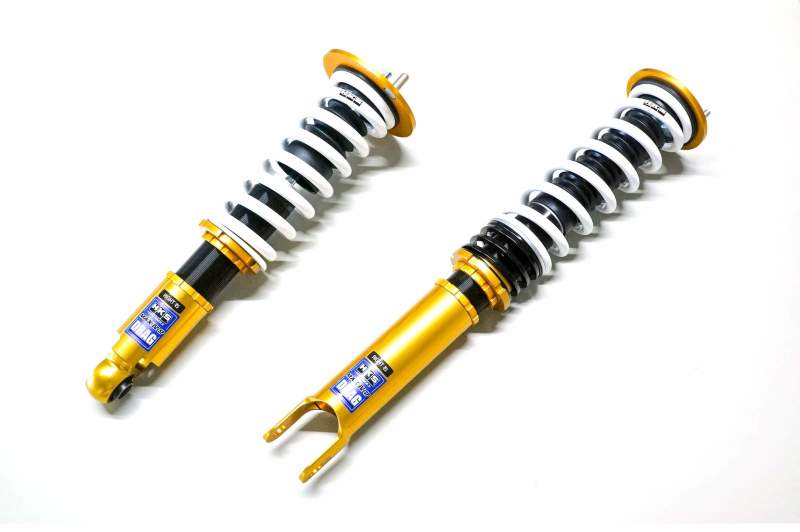

HKS MAX 4 SP Drag BNR32 FULL KIT - 80250-AN004D

MAX IV SP DRAG

Application

• Engine: RB26DETT
• Code No.: 80250-AN004D

Specifications

SKYLINE GT-R BNR32 Return of Drag Specification Dampers. Introducing the latest technologies to suit modern drag racing requirements. ▲The above photo is an item for BNR32. Application Engine RB26DETT Model Year 89/08 - 94/12 Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Spherical bearing Spherical bearing Inverted/Normal type Normal Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Possible Possible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) - 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 656 ← 690 ～ 622 690 ～ 636 Against stock -34 ← 0 ～ -68 0 ～ -54 REAR Ride height *1 656 ← 675 ～ 634 675 ～ 634 Against stock -19 ← 0 ～ -41 0 ～ -41 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or arms etc. (However
