SKU: SKU: HKS80120-AT218
S-Style X
Vehicle: height." "Super Low Stance
Application
Specifications

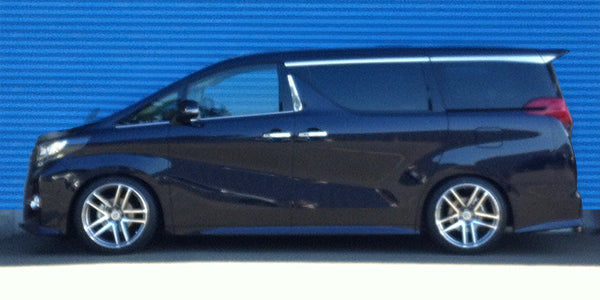

VELLFIRE AGH35W "Not just for lowering the vehicle height." "Super Low Stance Model" for reliable driving performance. The model in the photo is GGH30W. Application Engine 2AR-FE Model Year 15/01 - 23/05 Remarks The vehicle height data is of AYH30W(Hybrid). Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket ○ ○ Upper mount Spherical bearing Rubber Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Separated Spring rate change at factory Possible Impossible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) - - Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 693 654 732 ～ 651 732 ～ 651 Against stock -72 -111 -33 ～ -114 -33 ～ -114 REAR Ride height *1 691 664 715 ～ 664 715 ～ 664 Against stock -89 -116 -65 ～ -116 -65 ～ -116 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car
Source: HKS Japan · Detail page
