SKU: SKU: HKS80330-AM001P
Application
Specifications

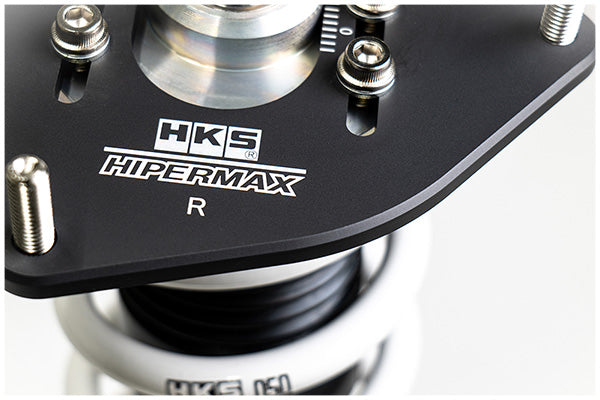

LANCER EVOLUTION X CZ4A A New Dimension of Driving Comfort Application Engine 4B11 Model Year 07/10 - 15/09 Remarks Front Upper Mount Pillow ball type Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Spherical bearing Rubber Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Possible Possible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) - 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 664 ← 681 ～ 640 681 ～ 640 Against stock -36 ← -19 ～ -60 -19 ～ -60 REAR Ride height *1 660 ← 679 ～ 622 679 ～ 622 Against stock -19 ← 0 ～ -57 0 ～ -57 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.) Caution). Actual data depends on each
