SKU: SKU: HKS80330-AM002
Application
Specifications

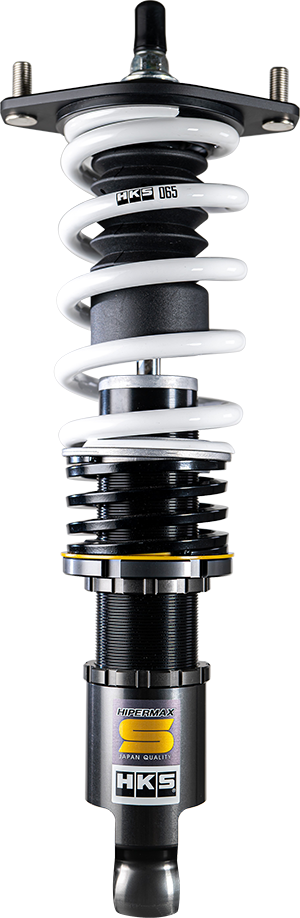

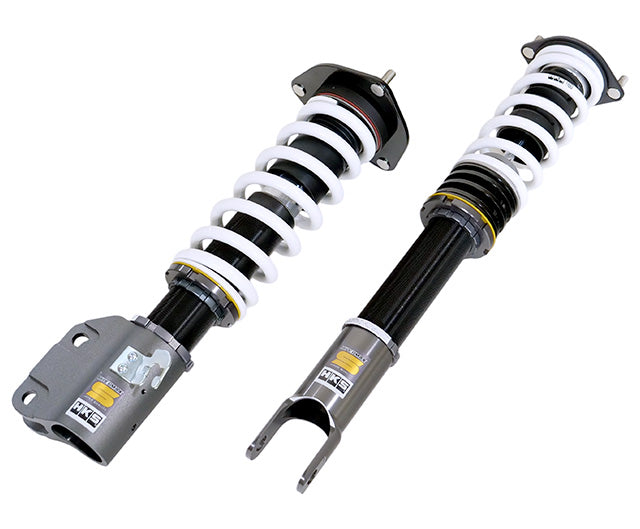

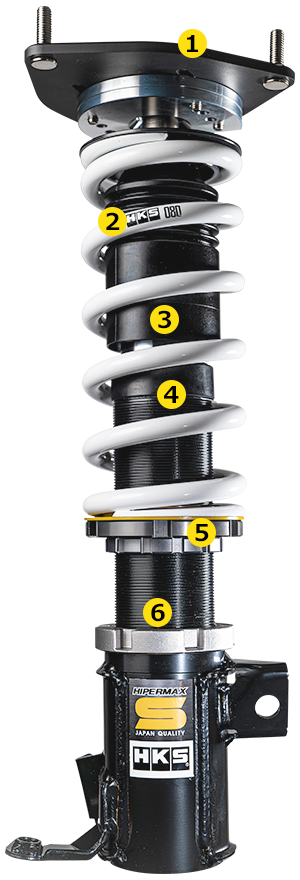

LANCER EVOLUTION VII CT9A A New Dimension of Driving Comfort The model in the photo is CT9A. Application Engine 4G63 Model Year 01/02 - 02/12 Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Rubber Rubber Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Coilover Spring rate change at factory Possible Possible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) - 〇 (19.8) Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 660 ← 686 ～ 635 686 ～ 635 Against stock -34 ← -8 ～ -59 -8 ～ -59 REAR Ride height *1 650 ← 661 ～ 595 661 ～ 595 Against stock -16 ← -5 ～ -71 -5 ～ -71 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.) Caution). Actual data depends on each vehic
