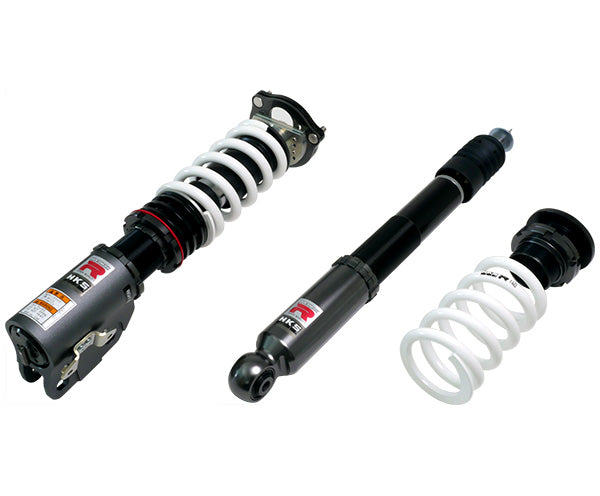

HKS Hipermax R FD2 Full Kit - 80310-AH004

Application

• Engine: K20A
• Code No.: 80310-AH004

Specifications

CIVIC TYPE R FD2 Application Engine K20A Model Year 07/03 - 10/08 Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Spherical bearing Stock Inverted/Normal type Inverted Normal Damper/Spring layout Coilover Separated Spring rate change at factory Possible Possible Damping force adjustment with wire - - Helper spring (Spring rate N/mm) 〇 (19.8) - Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 629 ← 660 ～ 579 660 ～ 583 Against stock -31 ← 0 ～ -81 0 ～ -77 REAR Ride height *1 637 ← 656 ～ 574 656 ～ 615 Against stock -31 ← -12 ～ -94 -12 ～ -53 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.) Caution). Actual data depends on each vehicle. Kit information Spring of Full Kit F R Spring rate N/mm(kgf/mm) 137 ( 14.0

Source: HKS Japan · Detail page
